Keyland Machine Solar Cells Testing Machine Photovoltaic For Sale
Application

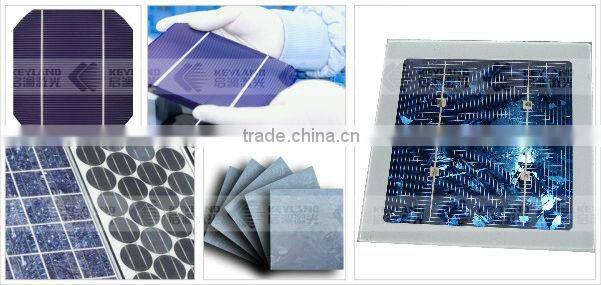

Mainly used in automatic test and result record of solar mono-Si, poly-Si solar cell module
Main Production Line Equipment:
Semi- Full automatic laminator
Solar Cell Tester
EL Module Detector
Framing Machine
EVA, TPT cutting station
EVA, TPT transfer carrier
Solar cell soldering station
Soldering ribbon cutting machine
Cell string shelf
Ready material carrier
Module transfer carrier
Laying up station
Inspection station
Cell sorting table
Cleaning working table
Working table
Pneumatic glue gun
Compressor
Laser dicing ( scribing ) machine (option)

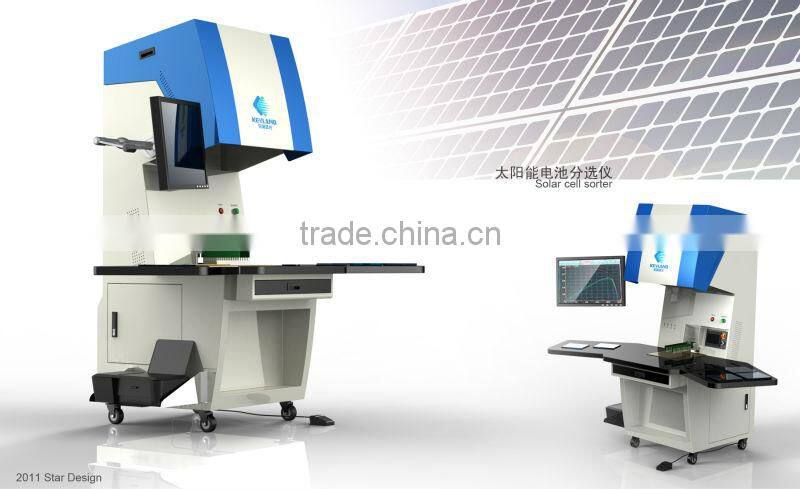

Solar Panel Tester Technology characters
A grade spectrum ;
A grade unevenness degree of irradiance;
A grade instability degree of irradiation;
A grade test error,
A grade repeat test error

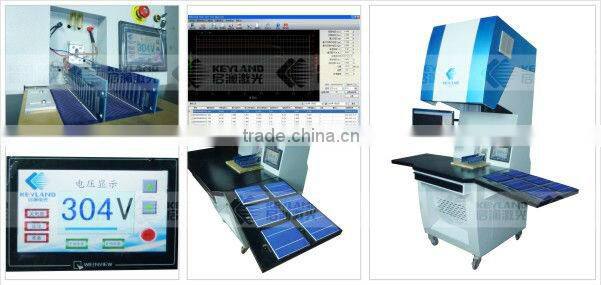

HMI and PLC intelligent control,touch screen control;
Built-in host,industrial integration design,and more in line with the industrial application environment;
360 degree freely show frame,facilitate date collection.
Pneumatic and buffering contact, front probe contact, back contact
4-line survey,14-bit 4-channel high-speed synchronous acquisition
10 parameters display;8000 data collecting dots
Irradiance&Temperature compensating automatically
Measurement parameter displays in tabulation and graphic way;
Voice counts off and prompts; Counting prompt of flash times;24hrs continuous working;
Working life of imported xenon lamp is 300, 000 times of flash
Test Parameter : Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh.Panel Tester
Type specifications |
GTC-5A |
GTC-B |
Lamp spectrum |
In line with IEC60904-9 and JISC8933( Grade A) |
|
Range of Light intensity |
100mW/cm2(continous adjustable 70-120mW/cm2) |
|
Light intensity non-uniformity |
±2%( A grade) |
±3% |
Instability degree of irradiation |
≤ ±2%(A grade) |
±2% |
Test results consistency |
±0.5% |
±1% |
Test error of electrical proerties |
≤±1% |
≤±2% |
Single flash time |
10~40ms |
10ms |
Effective test range |
2000X1200mm/5w~300w |
|
Power Supply |
220V ±10%, 5A/ 2KW/ 50-60Hz |
|
Load time |
5 s |
|
Light Pulse Duration |
10 ms |
|
Data acquis. Speed per measurement |
20 µs |
|
Reference Cell Range |
50 mV |
|
Module measurements per hour |
700 |
|
Measuring voltage |
0~100V (resolution 1mV) |
|
Measuring current |
0~20A (resolution 1mA) |
|
Test parameters |
Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh |
|
Customize 100ms pulse width 225-1300nm dual light source
Main Technical Parameters of EL Detector:
Effective testing area: 1200*2100mm
Resolution: 6.1 Megapixels or 11.4 Megapixels
Sensitivity: can detect crack width less than 0.2 µm
Testing methods: uncontact free style
Power parameter: single-phrase 220V 10A, Max load currency 10A
Single flash time: testing platform ( including infrared camera), computer, professional software
Test fast and convenience: long time 1s- 60s (adjustable)
Working ambient temperature: 10-30 °C
Time of exposure: 0.1 s- 25s adjustable;
Power : 220V 10A or customized;
Main Technical Parameters of Solar Panel Laminator:
Power Source: AC 380V, Three-phrase Five-wire system
Temperature evenness: ± 1.5 °C
The temperature control precision: ± 1 °C
Temperature range: 30 to 180 °C
Exhaust velocity: 70 L/S
Working Vacuum degree: 200-20 Pa
Laminating cavity height: 20mm
Working power: 18KW
Air pressure needed: 0.5-0.8 Mpa
Pumping time: 5 to 6 min
Operating environment: Ambient temperaturn 0 to 50 °C ,
Ambient humidity: < 90 %,
Elevation: Below 2000m
Keyland Laser Co. On Fairs:
