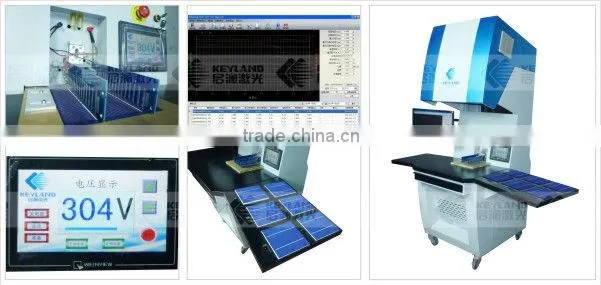

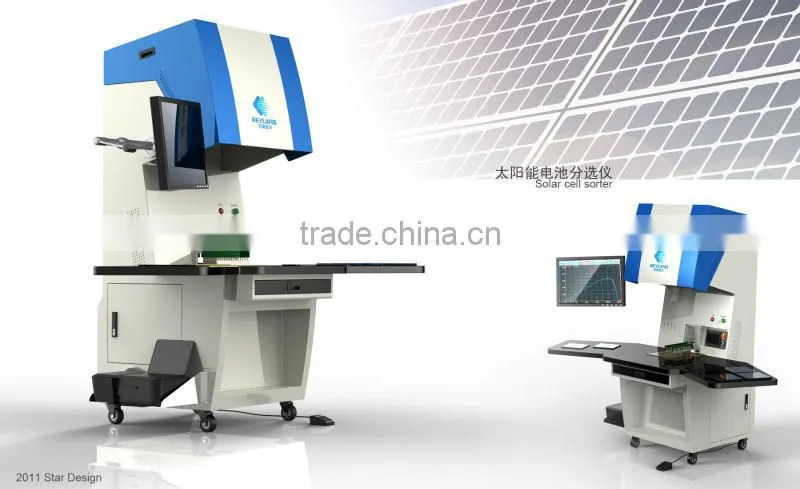

Keyland 3bb/4bb/5bb Bus Bar Solar Cell Tester For Photovoltaic Current Voltage Power Measurement
Application

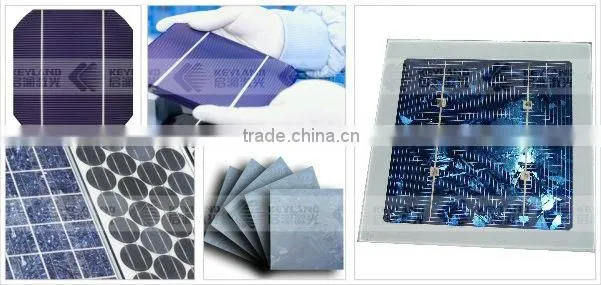

Mainly used in automatic test and result record of solar mono-Si, poly-Si solar cell
Solar Cell Tester Technology Characters:
A grade spectrum ;
A grade unevenness degree of irradiance;
A grade instability degree of irradiation;
A grade test error,
A grade repeat test error
HMI and PLC intelligent control,touch screen control;
Built-in host,industrial integration design,and more in line with the industrial application environment;
360 degree freely show frame,facilitate date collection.
Pneumatic and buffering contact, front probe contact, back contact
4-line survey,14-bit 4-channel high-speed synchronous acquisition
10 parameters display;8000 data collecting dots
Irradiance&Temperature compensating automatically
Measurement parameter displays in tabulation and graphic way;
Voice counts off and prompts; Counting prompt of flash times;24hrs continuous working;
Working life of imported xenon lamp is 300, 000 times of flash
Test Parameter : Isc,Voc,Pmax,Vm,Im,FF,EFF,temp,Rs,Rsh.P
Type specifications |
GTC-5A |
GTC-B |
Lamp spectrum |
In line with IEC60904-9 and JISC8933( Grade A) |
|
Range of Light intensity |
100mW/cm2(continous adjustable 20-120mW/cm2) |
|
Light intensity non-uniformity |
±2%( A grade) |
±3% |
Instability degree of irradiation |
≤ ±2%(A grade) |
±2% |
Test results consistency |
≤±1% |
≤±2% |
Test error of electrical proerties |
≤±1% |
≤±2% |
Single flash time |
10~30ms |
10ms ~30ms |
Effective test range |
200X200mm |
|
Power Supply |
220V ±10%, 5A/ 2KW/ 50-60Hz |
|
Load time |
5 s |
|
Reference Cell Range |
50 mV |
|
Module measurements per hour |
600 |
|
Measuring voltage |
0~0.8V (resolution 1mV) |
|
Measuring current |
0~20A (resolution 1mA) |
|
Test parameters |
Isc,Voc,Pmax,Vm,Im,FF,EFF,Temp,Rs,Rsh |
|
Keyland Main Production Line Equipment:
Semi- Full automatic laminator
Solar Cell Tester
EL Module Detector
Framing Machine
EVA, TPT cutting station
EVA, TPT transfer carrier
Solar cell soldering station
Soldering ribbon cutting machine
Cell string shelf
Ready material carrier
Module transfer carrier
Laying up station
Inspection station
Cell sorting table
Cleaning working table
Working table
Pneumatic glue gun
Compressor
Laser cutting ( scribing ) machine (option for 1/2, 1/3, 1/4 , 1/5 cells)

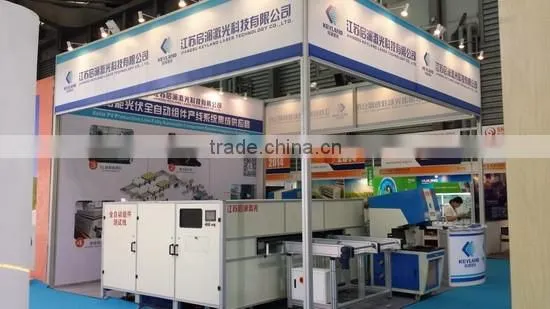

Keyland Laser Co. On Fairs:
