Keyland Fiber Laser Solar Scribing Machine with Turnkey Solar Laser Scribing System
Laser power: 10W 20W Fiber Laser (Germany IPG/China Raycus/USA SPI Fiber Laser )
Fiber Laser Solar Scribing Machine is suitable for cutting,scribing of solar PV industry,just like mono crystalline silicon,poly crystalline silicon solar cell,amorphous ribbon silicon and silicon wafers.
Details of Fiber Laser Solar Scribing Machine :
Model |
GSC-10F |GSC-20F I GSC-50 |
Laser wavelength |
1064nm |
Laser power |
10W |20W 50W (option) |
Scribing/cutting width |
30μm |
Scribing /cutting speed |
0-300mm/s |
Scribing/cutting accuracy |
±10μm |
Working area |
350mm *350mm or 200mm*200mm |
Temperature control precision |
0.5°C |
Working power |
380V(220V)/50Hz/3kvA or 110V/60Hz |
Working table |
negative pressure absorbing and dust elimination |
Cooling method |
forced air cooling |
*Mrs Lucia Lv will tell you how to choose suitable Fiber Laser Solar Scribing Machine
Meanwhile, your sampls can be sent to us for testing cutting by our Laser machine .the cutting performance will make you sure whether it is right machine for your choose.

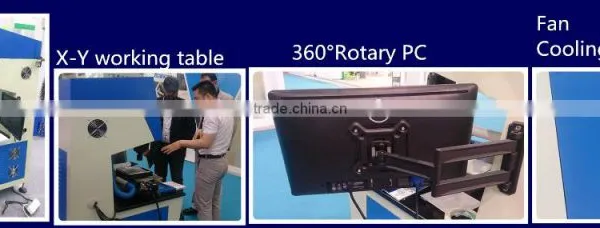

Our Fiber Laser Solar Scribing Machine 's Characters:
1. Imports of fiber lasers, to adapt to the environment more strong, and the better beam quality(mode TEM00) ,kerf finer,more smooth edge
2. Small size Compact design for easy moving and handling,in line with moder business management 6s
2016New Model-Keyland Patent model
2014 Old Version
2.High efficiency electro-optical conversion.
3.High precision and Air cooling
4.Stable and continuous processing but lower operation cost
5.Easy&convenient operation
6.Maintenance-free (no damageable parts&consumable parts be replaced)
7.Touch screen control,servo motor for option
8.Automatic absoption and without foot pedal
9.Imported Core parts
Scribing Cutting solar cell/wafer sample :
Operation of Fiber Laser Solar Scribing Machine by keyland laser
http://youtu.be/ijHVcpq0deA
Silicon Fiber Laser Solar Scribing Machine Processing
http://youtu.be/pAb8eW0Qby0
Broken cell is used for Solar lamp,Sun hat,Sun toy,solar air conditioning and etc.
Application of Fiber Laser Solar Scribing Machine :
Keyland also manufacture solar panel making line equipments:
- Solar Cell Laser Scribing Machine
- Solar Cell Tester
- Solar Simulator for solar panel tester
- Solar El Defector
- Solar Framing machine
- Solar Laminator
- Solar HIPOT tester
Keyland Solar Photovoltaic Panel Production Line OverSea Service
Fiber Laser Solar Scribing Machine rice, good quality,comprehensive service will help you expand market sucessful |
We hereby sincerely invite you to visit our booth in Shanghai SNEC exhibition China 2016,
a professional and famous Solar exhibition in the world which will be held in Shanghai from May 24th to May 26 st 2016.
And our booth NO. is E4-570.
