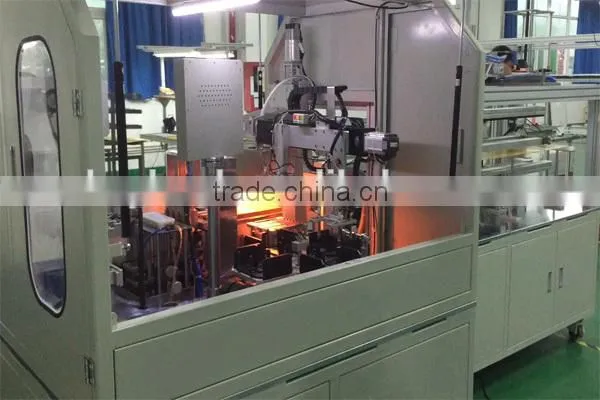

1200 Solar Cell Per Hour For Solar Panel Stringer Machine Automatic Line
Over 10 Years Experience / Full Technical Detals & Proposal

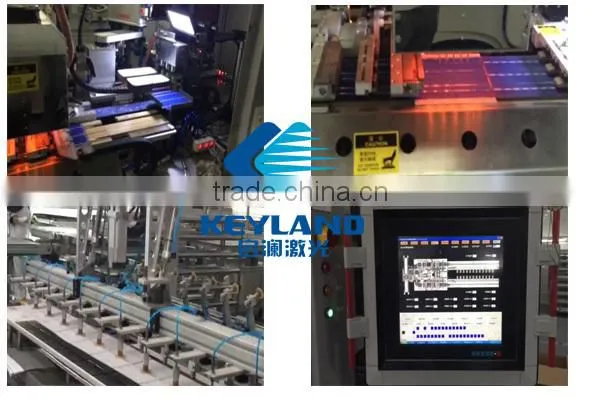

Advantage of Automatic Solar Cell Stringer Machine:
Feeding Cells
----Double Preparation, Feed the Cell Automatically
---- Can Identify the Size of Cell Box, Reduce Hitch
---- Compression Air Layering, Laser Induction Postion
Test
---- Appearance Test ( Deficiency)
---- Busbars Test Of the Obverse Of Cell
Ribbon Feeding Part
----Optimize Design for Ribbon loading (Less Than 5 Mins)
---- Change Size Automatically, And Can Adjust It Finely
---- Straighten Ribbon, Press "z" Type
String Parts
---- String Observing Position, The Observing Time Can be Set By Customers
---- Three String Platforms, Can put quality products and Reject Ones.
Main Busbars Position
---- Patened Technology, Cell Postion By Main Busbars of The Obverse of Cell.
Flux Coating
---- The Flux Is Coated on the Main Busbars
---- Patened Technology, Double Flux Tanks, Add Flux Without Stopping The machine.
Soldering System
---- Patented Technology, Electromagnetic Induction Method, Lower Breakage Rate
---- Closed Loop Temperature Control
---- While Maintenance, The Welding Head can Be Lifted Up Conveniently.
Technical Parameter:
| Welding Method: | Electromagnetic Induction |
| Capacity: | Single Line 1200 Cell / Hour |
| Breakage Rate: | ≤2‰ |
| Size: | 125 /2BB 156 2BB/3BB |
| Cell Thickness: | 160-250um |
| Space: | 1.5-40mm |
| String Length: | 2000mm |
| Flux Coating: | On Main Busbars |
| Position: | Main Busbars |
| Eletricity: | 200-230V 50Hz Single Phase 45A Three Phase 15A |
| Power: | Peak Value 10KW Average 4KW |
| Compression Air: | 0.5-0.8 MPa, Rate of Flow 0.3m3 / Min |
| Dimension: | LWH (6500*2130*2066mm) |
| Weight: | 1500KG |
