YAG Metal Cutting Machine Laser 1325 1350

Plywood Package

Specifications

YAG Metal Cutting Machine Laser 1325 1350

Model:KQG-1325C/KQG-1530C

Applicable material:

• Stainless steel, carbon steel, alloy steel, spring steel
• Aluminum alloy, Aluminum plate, Titanium,
• other metal plates and metal pipes, and so on.

The main technical parameters

Features:

1. High accuracy

    be suitable for various precision metal cutting;

2. Ball screws and servo motors

   Be sure the high efficacy .

3. Small heat affected zone, good dimension stability.

    Flat and handsome laser-slotted, further process is unnecessary;

4. Steady performance:

    as a mature laser apparatus, the YAG laser cutting machine is suitable for serial production.

5. Fast speed:

   100 times higher than traditional linear cutting;

Main Parts

Laser power:

The internal part of ZGM-SD Model pulse laser power is control by SCM,so it is real numerical controlled power. The user can programme on a variety of laser waveforms and parameters through the keyboard, and thus this laser power can meet the needs of almost all metal welding, and it is the ideal configuration of multi-function laser welding machine..

Water Compressor Chiller:

This water chiller adopt high power 5P water chiller, and it can cool the laser system continuously, adjust the temperature automatically, ensures working for a long time. The temperature of the water can be kept within plus-minus 5 degree. The constant temperature of water can keep the laser power stable, work more steady and fast.

Motors and Drivers:

This system adopted with two 1500W imported Japanese servo motors and drivers, assuring constant and stable movement.

Pneumatic Feeding & Holding:

 The feeding and holding system, which are drived by an air compressor, Thus the customers can work on stainless steel plate easily and accurately.

Germany Technology YAG Generator and Sealed Laser Optic system:

The generator consist of YAG crystal rod,golden chamber,xenon lamp: lifetime of Xenon Lamp is about 500-600 hours, low cost and comparatively economic;Precise and rational design, optical, adjustment for easy lamp and rod replacement

The solid-state laser cutting machine make use of cantilever structure therefore just move beam body to edge during adjustment of laser path, the operator can replace the side lights and rods behind the beam body.

Laser inductive Servo head:

Our solid laser cutting machine uses USA technology auto focusing cutting head. Cutting head laser nozzle locking ring touch the metal sheet materials surface, cutting head move up and down, and it can achieve same focal cutting. The cutting head has high sensitivity, stable running and good reliability.When cutting metal sheet,

Cutting software Interface:

The cutting software can support many formats, such as dxf.,plt.,dsb.,bmp.,png.,ico., cur., tif., tga., pcx., wmf., emf., jbg., pnm., ska., ras.,etc.

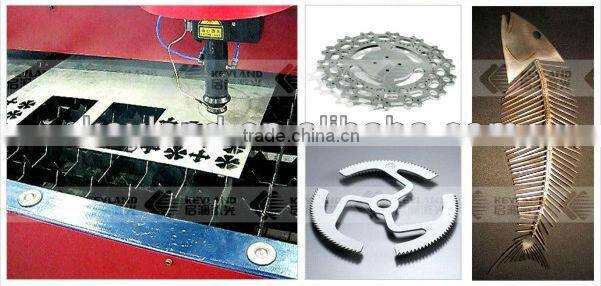

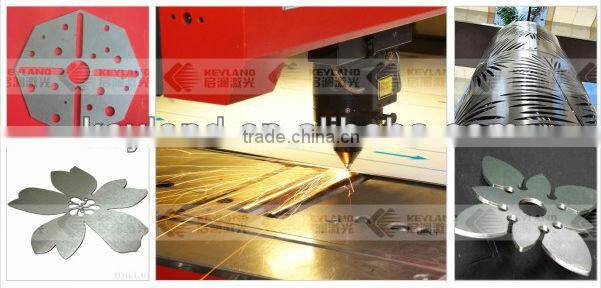

Samples show:

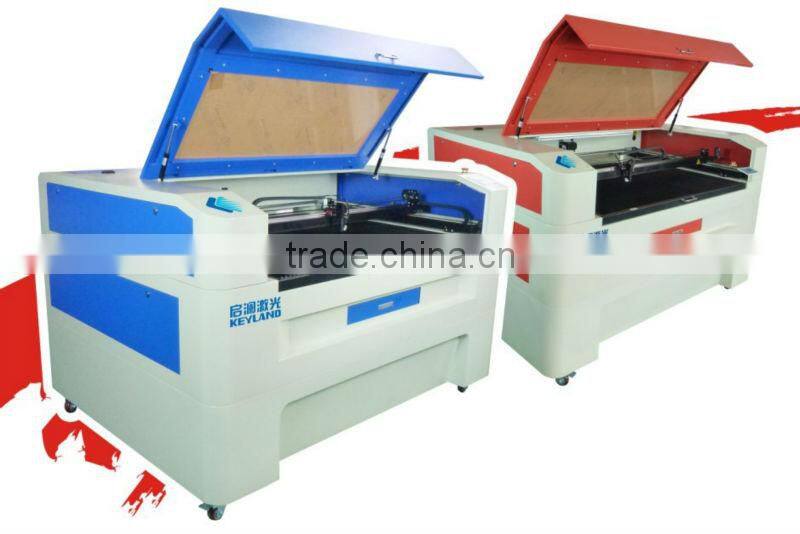

We also produce CO2 laser cutting machine

Please know following before your order :

 1.Different price ,different Configuration !

 2.In China, The better quality of laser equipment is main in Wuhan, China Optical Valley.

 3.Price is important, while service is also important for equipment .

Dear Customers, IF You're interested in our Laser Machines, Please Do Not hesitate to Contact Margret!
