Specifications
Good price fiber optic laser cutting machine1 High quality and precision, fast speed
2 Low price

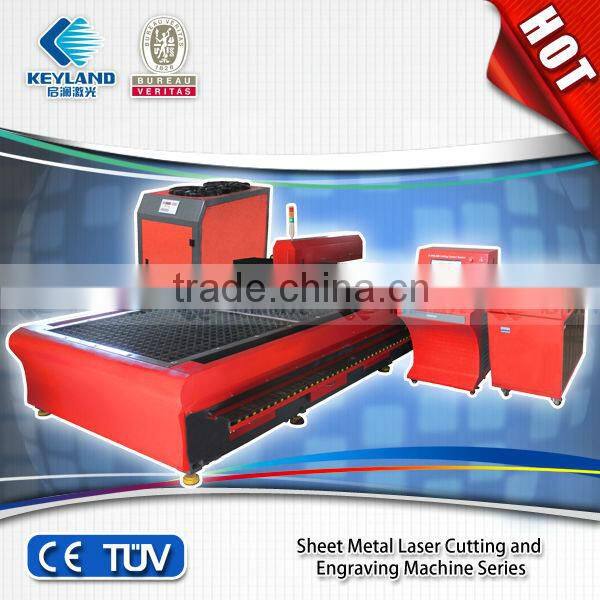

Good price fiber optic laser cutting machine
Feature
1 Imported key components
2 High precision: the positioning accuracy is 0.05mm, repeat positioning accuracy is 0.02mm
3 Kerf narrower: kerf width is generally 0.10-0.20mm
4 Smooth cutting surface: controlled in Ra12.5
5 Speed: cutting speed up to 4.5 / min, the maximum positioning speed is up to 10m/min
6 No workpiece thermal deformation, can process any graphics, you can cut the tubing and other profiles.
7 No mold, computer programming, can cut products of different shapes on the entire board, improve the use ratio of materials to the utmost
Main technical parameters
| Model | KQG-1325C / KQG-1530C |
| Laser wavelength | 1064nm |
| Laser power | 500w / 600w |
| Working platform size | 3000*1500mm(can be customized) |
| X/Y axis positioning accuracy | ±0.05mm/m |
| X/Y axis fast-moving speed | 10m/min |
| X/Y axis maximum cutting speed | 4m/min |
| Minimum cutting line width | 0.2mm |
| Maximum cutting thickness | stainless steel 3mm carbon steel 6mm |
| Chiller | 5p |
| Floor Space | 3*5m |

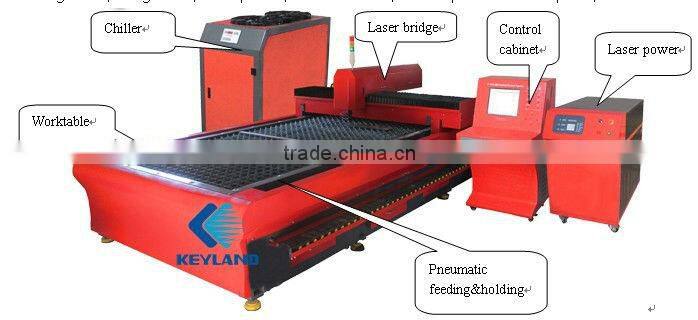

Main parts
Applicable area
Metal prrocessing, precise cutting, precise instrument, medical equipment, eyeglasses and clocks, craft gift, auto parts, instruments, and metal related industries.
Applicable materials
Stainless steel, carbon steel, Iron, aluminum sheet, copper sheet, titanium etc

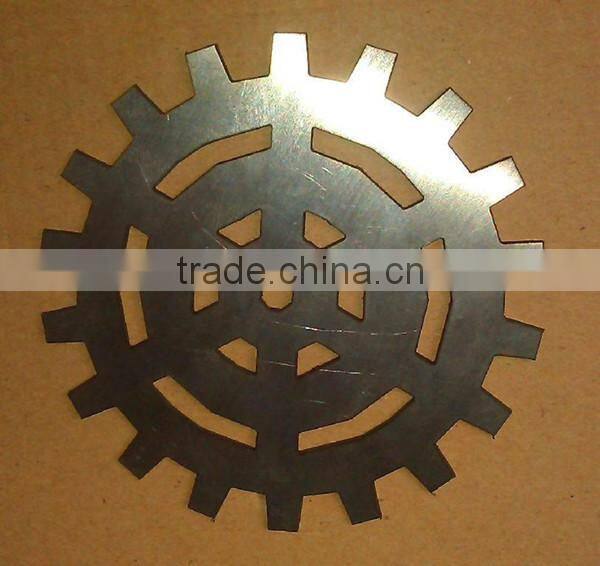

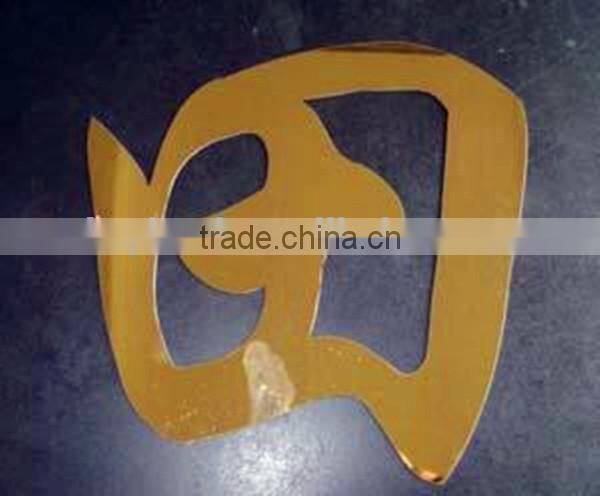

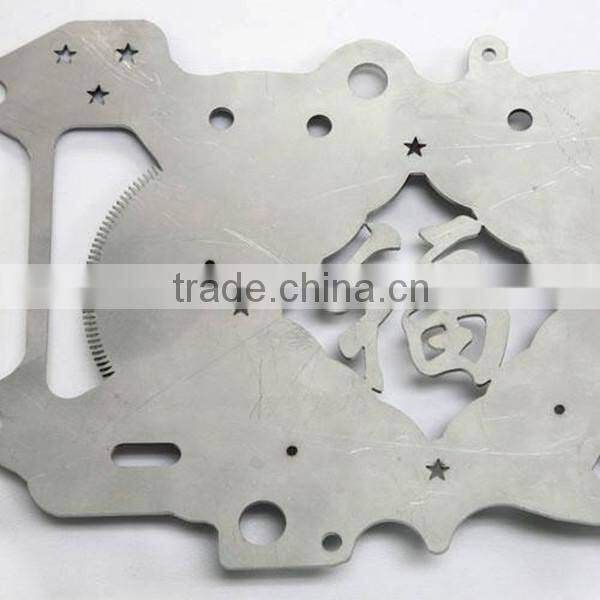

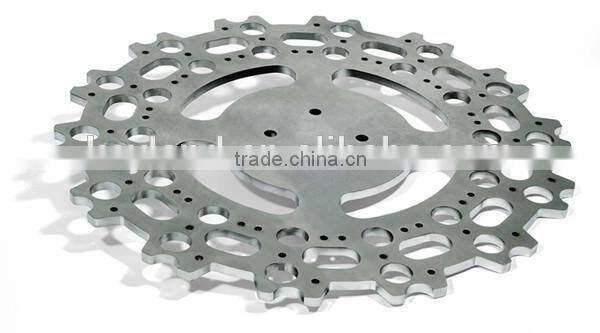

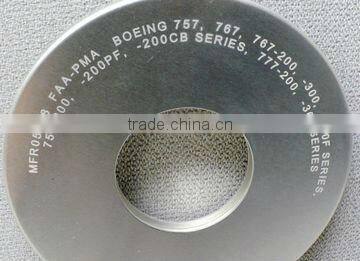

Sample
Stainless steel
Aluminum
Carbon steel
Iron
Copper
Wooden case
Aftersale service
1 The whole machine is guaranteed for one year, except man-made damage.
2 We can send our engineers to your place for operation training and machine maintenance.
3 We supply long time technical support.
4 You can have the vedio conversation with our engineers online when you need help.
Our aftersale engineers abroad
Keyland laser is a manufacturer of indutry laser cutting machine, laser marking machine and solar photovotatic equipment. We have 20 years' experience in R&D, production and sales industry laser equipment. Most of our product have passed CE and FDA, and we win the praise of domestic and overseas customers. Right now, we have many cooperation with with the domestic and overseas institutions and colleges.
We are professional
1 Can you please tell us what kind of materials you want to process?
2 What is the cutting or engraving table size you need 1300*2500mm or 3000*1500mm?
3 What is the thickness of the materials?
