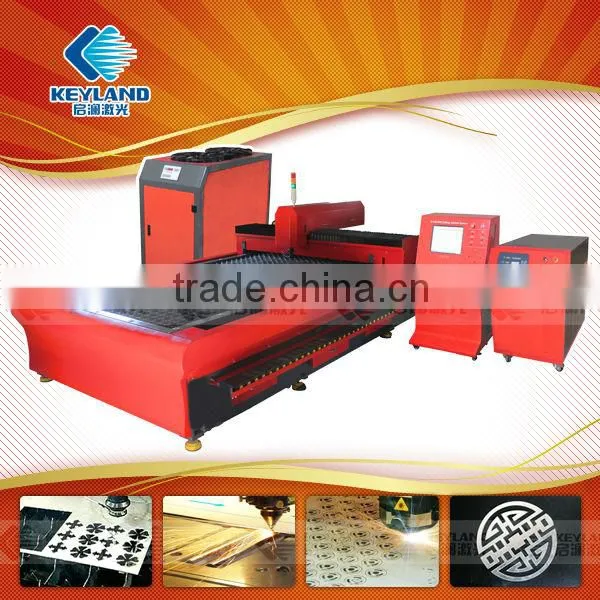

500W Fiber SS/Stainless Steel Laser Cutting Machine Price
Application of laser Sheet Metal Cutting Machine :
- stainless steel
- mild steel
- carbon steel
- alloy steel
- spring steel
- iron
- copper
- brass
- aluminium
- gold
- silve
- titanium
- metal sheets
- metal plates
- metal pipes, etc.
Used industries:
- sheet metal processing
- metals ironware components and parts
- chassis
- racks & cabinets processing
- kitchen war
- metal crafts
- metal sign letters
- elevator panel cutting, etc.
Laser metal cutting machine's Features:
1. Thick steel plate frame with strong deformation resistance ability, stable performance and nice appearance.
2. To cut any intricate graphics with high speed and precision. No secondary treatment.
3. Dynamic focusing device for continuous and automatic focus cutting uneven material.
4. Universal wheel and pneumatic loading device for loading and unloading easily, saving labor power and avoiding material scratched.
5. Following bottom exhaust system, making the whole processing without fumes.
6. Digital operation panel and mobile controller, easy to use.
7. Advanced technologies of smart nesting, fast digitizing and auto-recognition ensure material saving and high efficiency.
8. Rotary attachment (integrated or detached type optional) for positioning punching, slotting and cutting metal pipes.
9. Stainless steel less than 6mm and mild steel less than 8mm, you can just use air to laser cut (no required oxygen gas). Good cutting effect, maximizing reducing use-cost.
Specifications of metal laser cutting machine:
- Fiber pump solid laser generatorJapanese servo system
- High precision ball screw driving system
- Professional water chiller for laser system
- Offline control system (Support format: DXF, DWG, AI, PLT, etc.)
- Auto following focus system
- Nesting software
- Low investment
Model No. |
KQG-F500-3015 |
Laser Power |
500W |
Laser wavelength |
1070nm |
Working area |
1500*3000mm |
worktable axial positioning accuracy |
≤±0.05 mm |
worktable repeated positioning accuracy |
≤±0.03 mm |
Max. loading |
800kg |
Maximum positioning speed |
100m/min |
X-axis travel |
3000mm |
Y-axis travel |
1500mm |
Z-axis travel |
120mm |
Character:
1.High photoelectric conversion efficiency,Low power consumption |
2.High-speed cutting, perforation fast |
3.The lasers maintenance without stopping the machine |
4.Cutting efficiently ;Gantry design |
|
5.Powerful automatic nesting software programming
|
6.State-of-the-art fiber laser technology with CNC Technology |
7.Imported AC servo system drive and transmission |
|
8.Imported ball screw drive
|
|
9.Linear guides ensure the high-speed/precision/ reliability;
|
10.Screw and guide rail with fully sealed protective device |
11.Laser cutting head configuration imports capacitive non-contact |
12.The pallet changer configuration shorten standby time effectively improve work efficiency more than 30%; |
13.Laser cutting head can withstand 2.0Mpa gas pressure, high-pressure gas line equipment, improve the cutting ability of stainless steel and other difficult to cut materials |
14.can carry pipe cutting device, operability, easy maintenance |
