Help CenterKeyland Fiber Laser Marking Machine For Nonmetal and Metal Materials
Related Products
-
Cheap Mini Cnc Anodized Aluminum Laser Engraving Marking Machine Fiber Engraver Laser for Metal Plastic Jewelry Made in ChinaUS$ 3,000 - 8,000MOQ: 1 Set -
China Keyland Barcode 2D Engraving Laser Machine For SaleUS$ 1,000 - 6,700MOQ: 1 Set
-
Hand-held Iphone Housing Metal Engraving Machine 10W 20W Fiber Laser MarkerUS$ 3,000 - 8,000MOQ: 1 Set
-
Hot Sale Ipg Jewelry Fiber Laser Marking Engraving Machine 10W 20W PriceUS$ 3,000 - 8,000MOQ: 1 Set
-
Gold and Silver Fiber Laser Marking Engraving Machine 10W 20W IPG Rotary PaypalUS$ 3,000 - 8,000MOQ: 1 Set
Wait for your inquiry Small volume convenient operation free maintenance
Laser Power :10W 20W Germany IPG Fiber Laser or Raycus fiber laser
Laser engraving machine is suitable for marking/engraving/ micro-cutting/ etching
/Printing/etch on metal/stainless steel/bearings/ring/Iron/ Copper/gold/silver/ watches/and most of nonmetal materials,just like acrylic,plastic,cable,wire,package and etc.
Application: Bar coding engraving, Matrix code engraving, Stock Number engraving, Production date engraving, logo engraving, Personalized gifts sculpture, etc.
Laser engraving machine's Spec.
Laser Power |
10W 20W |
Laser Brand |
Germany IPG Fiber /Raycus Fiber |
Galvo Scanner |
USA or Germany made or China made optional |
Laser wave length |
1064nm |
Marking Area |
70×70mm 110×110mm 160×160mm optional |
Marking speed |
≤7000mm/s |
marking depth |
0.05~0.5 mm (accord to the material) |
Mini.Line width |
0.01mm |
Mini.character |
0.1mm |
Cooling way |
Air cooling |
|
Support software
|
User friendly interface |
set and deal different layers graphic in seperate | |
Support PLT,PCX, AL, DXF, BMP,JPG formats file | |
compatible AutoCAD, CorelDraw, Photoshop etc software | |
Proprietary software for laser marking machine | |
|
Character
|
convenient control, set & deal separately |
Automatic serialization, date coding | |
|
letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment | |
Optional device |
On-line flying engraving, Rotary engraving |
Exact materials can be used by keyland laser engraving machine:
Materials |
engrave |
|
engrave |
|
|
Stainless Steel/ Stainless/Aluminum |
√ |
Carbon Fiber/Carbon Nanotube |
√ |
|
Makrolon polycarbonate |
√ |
Carbon Nanotube |
√ |
|
Bayers Bayblend FR |
√ |
Clear coat anodized aluminum |
√ |
|
Brass |
√ |
Cobalt Chrome Steel |
√ |
|
Black/White ABS |
√ |
Colored Delrin (Black, Brown) |
√ |
|
Silicon Carbide |
√ |
Compacted Powder Iron /Iron Phosphate Coating |
√ |
|
White PEEK |
√ |
Copper |
√ |
|
GE Plastics Polycarbonate Resin |
√ |
DAP - Diallyl Phthalate |
√ |
|
Glass filled PEEK |
√ |
GE Plastics Polycarbonate Resin 121-R |
√ |
|
Glass filled teflon |
√ |
Silicon Steel |
√ |
|
Hard coat anodized aluminum |
√ |
Yellow Chromate Aluminum |
|
|
Machine Tool Steel |
√ |
Nickel Plated Brass/Gold/Kovar/steel |
√ |
|
Magnesium |
√ |
Nylon |
√ |
|
Metal Plated Ceramics |
√ |
Polybutylene Terephthalate |
√ |
|
Molybdenum |
√ |
Polysulphone |
√ |
|
Nickel Plated 1215 Mild Steel |
√ |
Rynite PET |
√ |
|
Silicon Wafers |
√ |
Santoprene |
√ |
|
Zinc Plated Mild Steel |
√ |
Various Inconel Metals (Nickel-Chromium Super Alloys |
√ |
|
* You can send your materials for our testing engraving for type choice | ||||
Why choose laser engraving machine:
1. Good laser beam ,higher photoelectric conversion, fine engraving quality
2. Air cooling
3. No maintenances (100,000 hours service time)
4.High quality, permanent engraving .Repetitive high precise
5.Easy to use by unskilled operator
6.Rapid engraving speed
7.Non-contact engraving process, eliminates material stress
8.low operation cost
9.Marks directly to product, eliminates labels-cost
10.Automatic serialization/date
11.Very small legible characters, logos, graphics, bar codes
12.Adaptable to various automated production line system including engrave-on-fly -parts moving

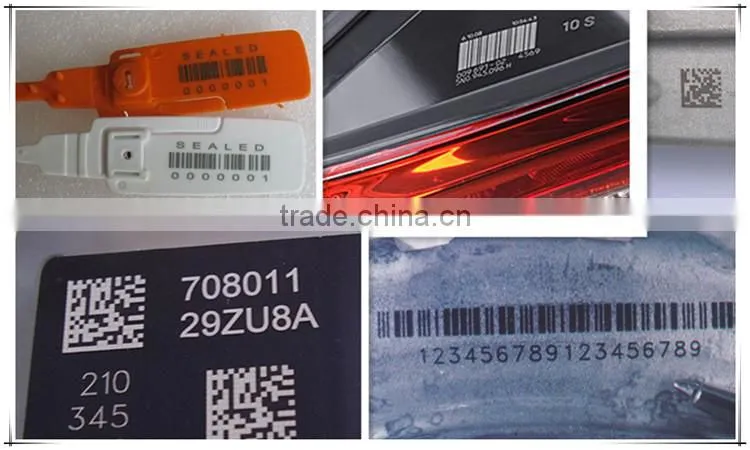

Photo of laser engraving machine:
News: Laser engraving machine 's agents wanted all over the world.
