Home > Products > Water filter > Pall Water Filter Element HFU640UY400J

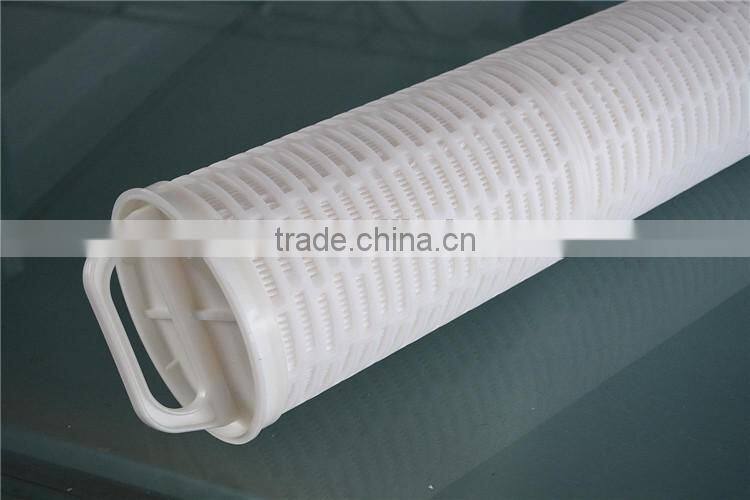

Pall Water Filter Element HFU640UY400J
- 5000 Piece / Pieces per Month
- Qingdao/Shanghai/Shenzhen
- T/T D/P D/A Credit Card
Product Details
Condition: | New | Type: | Other, Particle Removal | Medium Material: | PP |
Place of Origin: | Henan, China | Brand Name: | Pall | Model Number: | HFU640UY400J |
Voltage: | None | Power(W): | None | Dimension(L*W*H): | Standard |
Weight: | 5KG | Certification: | ISO 9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Pall Water Filter Element HFU640UY400J
Features | Benefits |
Fixed fiber matrix with no adhesives or surfactants
| •Consistent filtrate quality •Highly stable structure •Higher product yields •Process reliability |
Pleated (laid-over pleat geometry) media in a large diameter cartridge format
| •Lower capital and installation costs* •Reduced installation footprint* •30% lower operating costs* •Longer service life •Over 10% water savings* |
Inside to outside flow configuration | Protects filtrate from recontamination by trapping particulates inside the cartridge
|
Noted:*Typical compared to standard cartridges used in test comparison.
Applications:
Ultipleat High Flow filters are generally recommended for water flow rates greater than 20 m3/hour (88 US gal/min).
Materials of Construction:
Filter Medium | Polypropylene |
Support Mesh and Outer Wrap | Polypropylene |
End Caps and Handle | Polypropylene (10% glass fiber reinforced) |
O-ring Seal | Ethylene Propylene Rubber |
Technical Information
The technical information provided is based on controlled laboratory tests done on typical production filters at the conditions described, unless otherwise indicated. Actual operating conditions may affect the filter’s performance.
Operating Characteristics in Compatible Fluids1
Maximum Differential Pressure | Max. Operating Temperature2 |
3.45 bard (50 psid) (inside to out flow) | 82 °C (180 °F) |
Table 1 - Nominal Length
Code | Description |
40 | 1016 mm (40 in.) |
60 | 1524 mm (60 in.) |
Table 2 - Liquid Removal Rating4
Code | Rating (μm) at 99.98% Efficiency (ß-5000) | Rating (μm) at 99% Efficiency (ß-100) |
UY020 |
| 2.0 |
UY045 | 4.5 | 2.5 |
UY100 | 10 | 6.5 |
UY200 | 20 | 17.9 |
UY400 | 40 |
Henan Tianyu Purification Technology Co.,Ltd was founded in 1999,which located in Xinxiang city--Filter industrial concentration area. We are a high-tech enterprise which specializing in the production of filters, filter elements, filtration equipment, hydraulic components,dust removal filter cartridge,etc. We have 10 senior engineers ,with 16 years of experience in design research and development of purification industry . We can provide the best products and solutions for your purification system.If you choose us,we are sure we can give you the best service and help you save your money.
Packaging Details:Neutral packing.Carton inside,wooden case outside.Or custom-made according to the request.
Delivery Details:Generally,7 working days after received your payment.But if you are urgent,we can give you the best delivery time to meet your demand.
