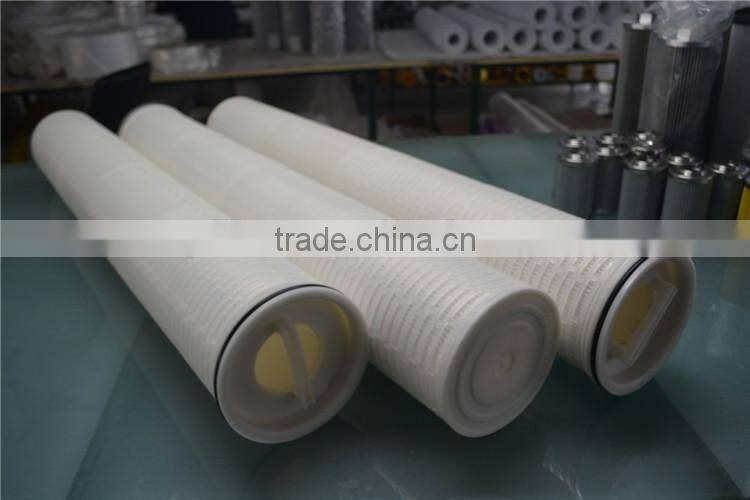

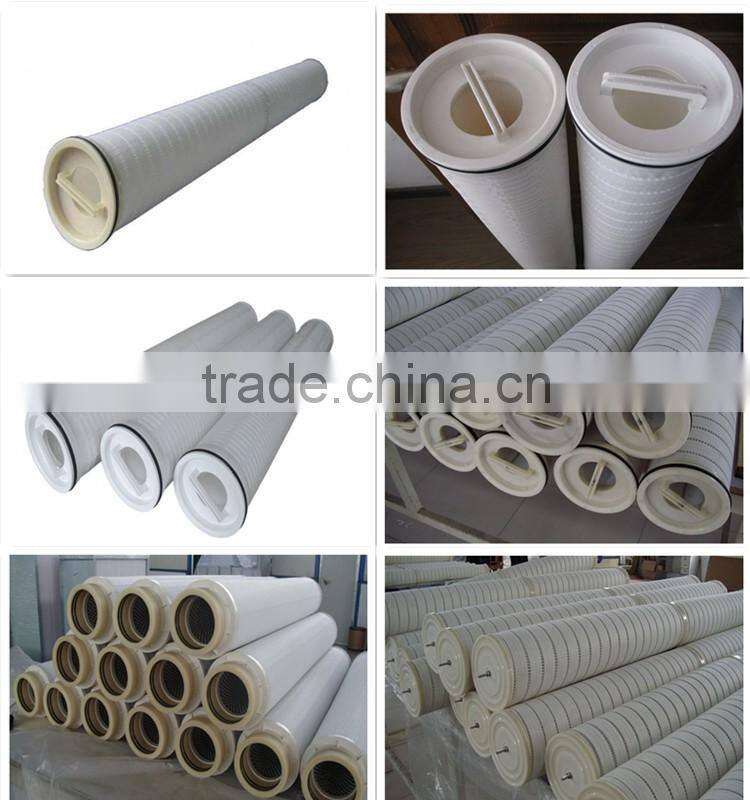

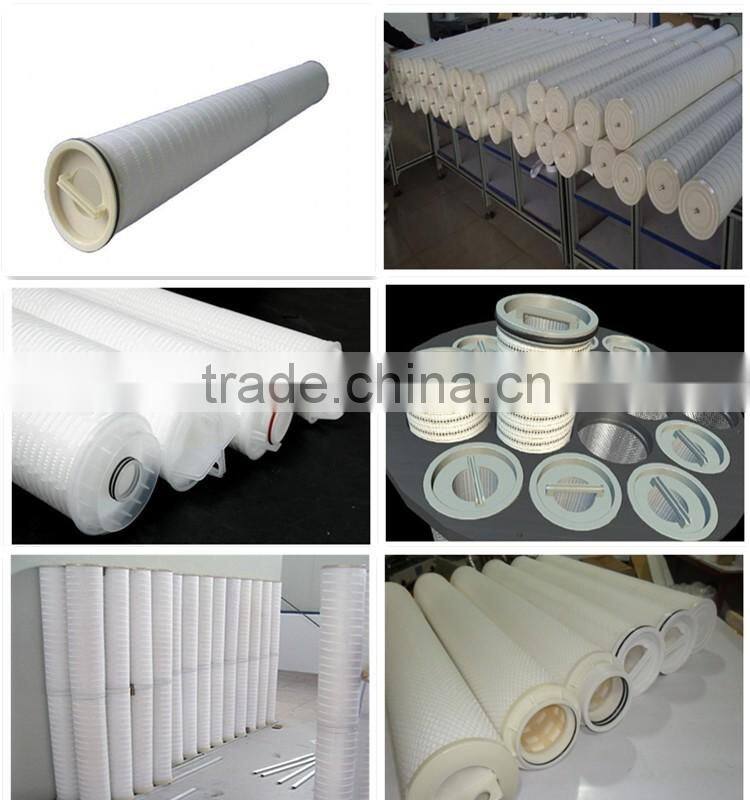

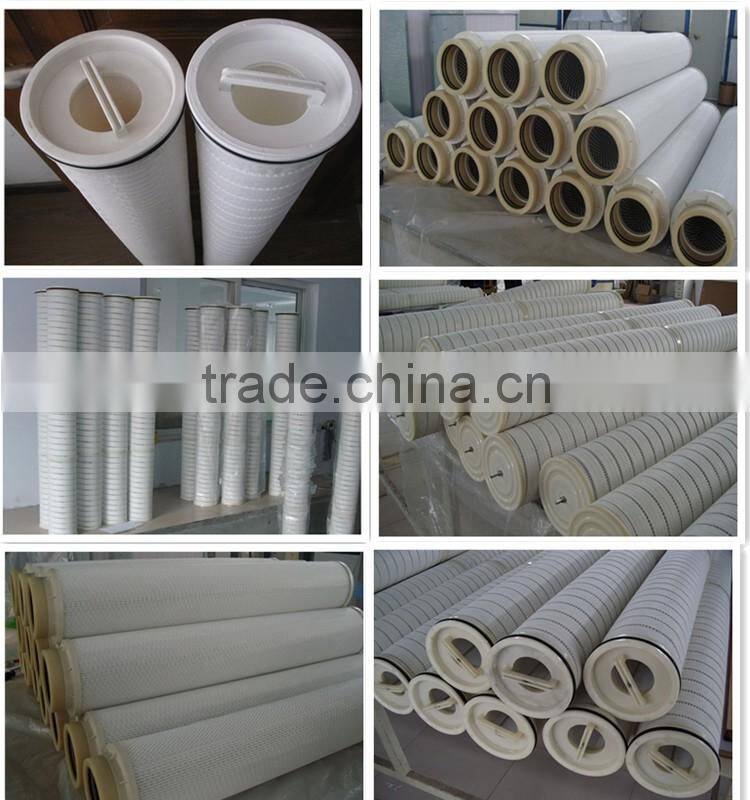

Replace Pall Ultipleat High Flow Water Filter Cartridge HFU640UY200J

Name: Replace Pall Ultipleat High Flow Water Filter Cartridge HFU640UY200J
Brand: Pall
Availability: InStock

FOB Price

US$ 50 - 200 / Piece

10 Pieces(Min. Order)

Port Qingdao/Shanghai/Shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Particle Removal
Medium Material	PP	Place of Origin	Henan, China
Brand Name	Pall	Model Number	HFU640UY200J
Voltage	None	Power(W)	None
Dimension(LWH)	Standard	Weight	5KG
Certification	ISO 9001:2008	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Replace Pall Ultipleat High Flow Water Filter Cartridge HFU640UY200J

Features

Benefits

Fixed fiber matrix with no adhesives or surfactants

•Consistent filtrate quality

•Highly stable structure

•Higher product yields

•Process reliability

Pleated (laid-over pleat geometry) media in a large diameter cartridge format

•Lower capital and installation costs*

•Reduced installation footprint*

•30% lower operating costs*

•Longer service life

•Over 10% water savings*

Inside to outside flow configuration

Protects filtrate from recontamination by trapping

particulates inside the cartridge

Noted:*Typical compared to standard cartridges used in test comparison.

Applications:

Ultipleat High Flow filters are generally recommended for water flow rates greater than 20 m3/hour (88 US gal/min).

Materials of Construction:

Filter Medium	Polypropylene
Support Mesh and Outer Wrap	Polypropylene
End Caps and Handle	Polypropylene (10% glass fiber reinforced)
O-ring Seal	Ethylene Propylene Rubber

Technical Information

The technical information provided is based on controlled laboratory tests done on typical production filters at the conditions described, unless otherwise indicated. Actual operating conditions may affect the filter’s performance.

Operating Characteristics in Compatible Fluids1

Maximum Differential Pressure	Max. Operating Temperature2
3.45 bard (50 psid) (inside to out flow)	82 °C (180 °F)

Table 1 - Nominal Length

Code	Description
40	1016 mm (40 in.)
60	1524 mm (60 in.)

Table 2 - Liquid Removal Rating4

Code	Rating (μm) at 99.98% Efficiency (ß-5000)	Rating (μm) at 99% Efficiency (ß-100)
UY020		2.0
UY045	4.5	2.5
UY100	10	6.5
UY200	20	17.9
UY400	40
