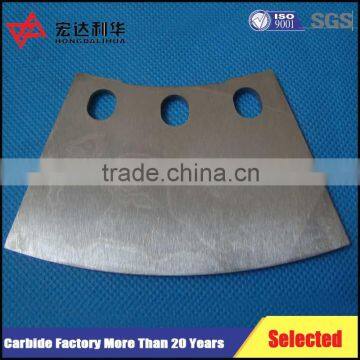

Help CenterCustomized Cemented Carbide Fan-shaped Blade
Related Products
-
Carbide Fan-shaped BladeUS$ 25.00 - 25.00MOQ: 1 Piece -
Customized Carbide Turning PartsUS$ 25.00 - 25.00MOQ: 1 Piece
-
Customized Carbide Mechanical PartsUS$ 25.00 - 25.00MOQ: 1 Piece
-
Customized Blade for Cutting ToolsUS$ 25.00 - 25.00MOQ: 1 Piece
-
Customized CNC Turning PartsUS$ 25.00 - 25.00MOQ: 1 Piece
Carbide Customized Parts
Grade Information for non-standard tungsten carbide tool parts
Grade |
Density g/cm3 |
T.R.S MPa |
Hardness HRA |
Performance & Application recommended |
YL10.2 |
14.50 |
3400 |
92.5 |
Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick. |
YG11C |
14.40 |
2260 |
87.5 |
Qualified for molding the drills for heavy-duty rock drill:detachable bits used for deep hole drilling,rock drill torlley etc. |
YG6X |
14.90 |
1560 |
91.0 |
Qualified for machiningof chilled cast iron,alloy cast iron,refractory steel ana alloy steel.Also qualified for the machining of common cast iron. |
YS2T |
14.45 |
2800 |
92.5 |
Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick. |
YG15 |
14.10 |
2400 |
86.5 |
Used for punch dies,stamping dies and wear resistance parts |
Our carbide saw tips are specialized in cutting all kinds of grass, wood, composite wood, aluminum, metal and etc. Different grade s are available, such as K01, K05, K10, K20, K30, K40, P40, M30 etc.
We have our own mould production line to tailor-make any size according to our customers' drawings.
Grade |
Equal to ISO Category Number |
Performance |
uses |
||
Density |
Bend Strength |
Hardness |
|||
G/Cm3 |
N/mm2 |
HRA |
|||
YG3 |
K01 |
14.9-15.3 |
≥1180 |
≥90.5 |
sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles. |
YG3X |
K01 |
15.1-15.4 |
≥1300 |
≥91.5 |
|
YG6X |
K10 |
14.8-15.1 |
≥1560 |
≥91.0 |
Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
YG6A |
K10 |
14.7-15.1 |
≥1580 |
≥91.0 |
|
YG6 |
K20 |
14.7-15.1 |
≥1670 |
≥89.5 |
Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
YG8 |
K20-K30 |
14.6-14.9 |
≥1840 |
≥89 |
Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
YT15 |
P10 |
11.1-11.6 |
≥1180 |
≥91.0 |
Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
YT14 |
P20 |
11.2-11.8 |
≥1270 |
≥90.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
YT5 |
P30 |
12.5-13.2 |
≥1430 |
≥89.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
YW1 |
M10 |
12.7-13.5 |
≥1180 |
≥91.5 |
Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel. |
YW2 |
M20 |
12.5-13.2 |
≥1350 |
≥90.5 |
Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel. |
Our Advantages:
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
Focus on Tungsten Carbide industry more than 20 years.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.
Company Brief Introduction
Zhuzhou Lihua Cemented Carbide Co., Ltd was established in 1990, Based depend on good production advantage, and company with produce, research and development, sales, technical service together that have many rich production experience of the tungsten carbide products. Also have strong scientific research and development team and technicians, advanced quality inspection division, senior engineer, etc of the tungsten Carbide production.
Our company mainly products such as carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc.
We have independent developmented YS series of tungsten carbide grade that the grade belong the micro hole grain of tungsten carbide, good abrasion resistance, impact resistant capability is strong, affinity resistant capability is strong that also has good heat conduction performance and so on characteristic.
Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We promise you not offering only our qualified products, but also designing, prompt delivery, the most competitive prices and all solution.
Packing:
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.
Shipping Methods:
Shipment methods: By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
Foreign Sales Representative: Susie
Mobile:+86 18507339883 (available 24 hours.)
Skype: zhuzhoulihua
QQ: 1441388789
Wechat: shen88fafa
Factory Address:Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone, Zhuzhou city, Hunan province, China
Postcode: 412000
