Home > Products > standard silicon modules > 100w mono solar panels

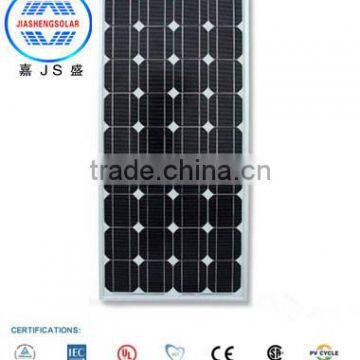

100w mono solar panels
Negotiable
1 (Min. Order)
- Shanghai
- T/T
You May Like
-
255w mono Solar panel
-
245w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE
-
255w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE
-
260w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE
-
300w poly Solar modules with 72pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE
-
285w poly Solar modules with 72pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JS | |
| Model Number | JS100D | Material | Monocrystalline Silicon | |
| Size | 1194*542*35MM | Number of Cells | 36ells | |
| Max. Power | 100W |
Product Description
Electric Characteristics(STC)
Type JS100D
Nominal Power(Pmax): 100
Voltage at Pmax(Vmp): 18.9
Current at Pmax(Imp): 5.3
Open Circuit Voltage(Voc): 22.6
short circuit Current(Isc): 5.53
Power Tolerance: 0-3
Maximum System Voltage: 1000
Module Efficiency: 15.45
Specifications
Dimension A*B*C(mm): 1194*542*35
Weight(kg): 7.8
Cable Length(mm) :900
Type of Connector: MC4
Product Guarantee:
25-year linear performance warranty
10-year warranty on materials and workmanship
Certificates:
TUV/IEC61215, TUV/IEC61730, UL, CE, CSA, MCS, PV CYCLE
