255w Poly Solar Modules With 60pcs 156*156 Poly Cells With CE, TUV, UL, CSA, MCS PV CYCLE

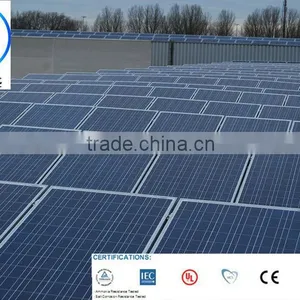

255w Poly Solar Modules With 60pcs 156*156 Poly Cells With CE, TUV, UL, CSA, MCS PV CYCLE thumbnail-1
255w Poly Solar Modules With 60pcs 156*156 Poly Cells With CE, TUV, UL, CSA, MCS PV CYCLE photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JS
Model Number:
JS255P
Contact Supplier Request Quote Chat Now
Jiangsu Jiasheng Photovoltaic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name JS
Model Number JS255P
Material Polycrystalline Silicon
Size 1640mm*992mm*40mm
Number of Cells 60cells
Max. Power 255W

Specifications

Please check the detailed specifications as follows:



Electric Characteristics(STC)



Type JS255P



Nominal Power(Pmax)[W]: 255



Voltage at Pmax(Vmp)[V]: 30.66



Current at Pmax(Imp)[A]: 8.31



Open Circuit Voltage(Voc)[V]: 36.9



short circuit Current(Isc)[A]: 8.93



Power Tolerance[%]: 0-3



Maximum System Voltage[V]: 1000



Module Efficiency[%]: 15.62



Specifications

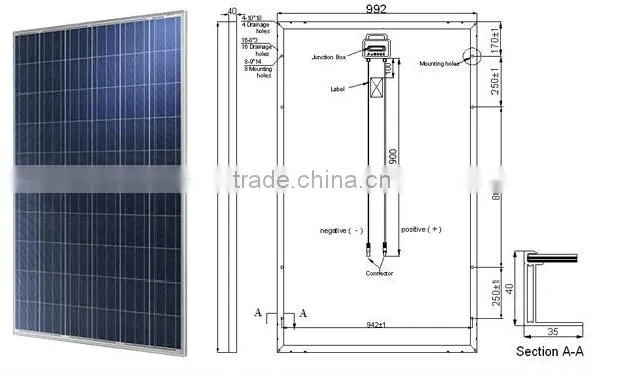

Dimension A*B*C(mm): 1640*992*40



Weight(kg): 20



Cable Length(mm): 900



Type of Connector: MC4



Product Guarantee



25-year linear performance warranty



10-year warranty on materials and workmanship



255w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE255w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE

 255w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE255w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE255w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE255w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE255w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE255w poly Solar modules with 60pcs 156*156 poly cells with CE, TUV, UL, CSA, MCS PV CYCLE
