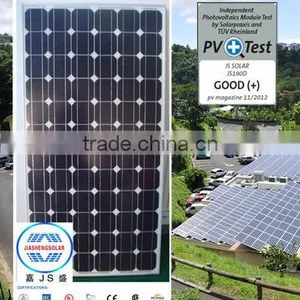

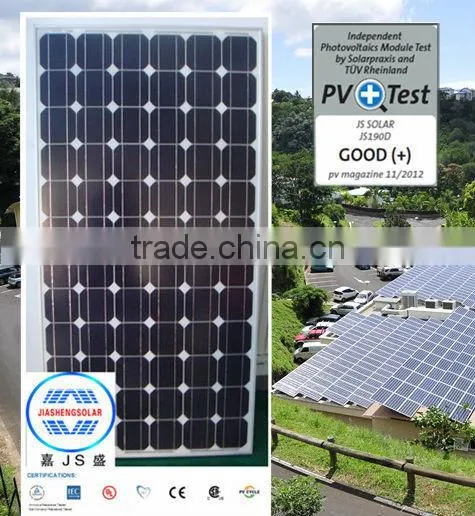

200w Mono Solar Panels
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JS
Model Number:
JS200D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
JS
Model Number
JS200D
Material
Monocrystalline Silicon
Size
1580mm*808mm*35mm
Number of Cells
72cells
Max. Power
200
Specifications
25 year Quality Guarantee12 years 90% rated power output
25 years 80% rated power output
CE,IEC,TUV,UL Certificate
JS 200D
Characteristics Packaging Configuration
Max-power:200W Package:26pcs/box
Power-tolerance:-/+3% Quantity:1 box/pallent
Max-power Voltage:37.51V Loading Capacity:952pcs/40ft
Max-power Current:5.34A
Open-circuit Voltage:44.8V
Open-circuit Current:5.70A
Max-system Voltage:1000VDC
Modules Efficiency:15.69%
Number of cells:72pcs(6*12)
Cell size:125*125mm(R165)
No. of Bypass Diodes:3
Type of connector:Compatible type 3 or 4
Dimension:1580mm*808mm*35mm
Glass:Tempered 3.2mm
Weight:16.5KG
