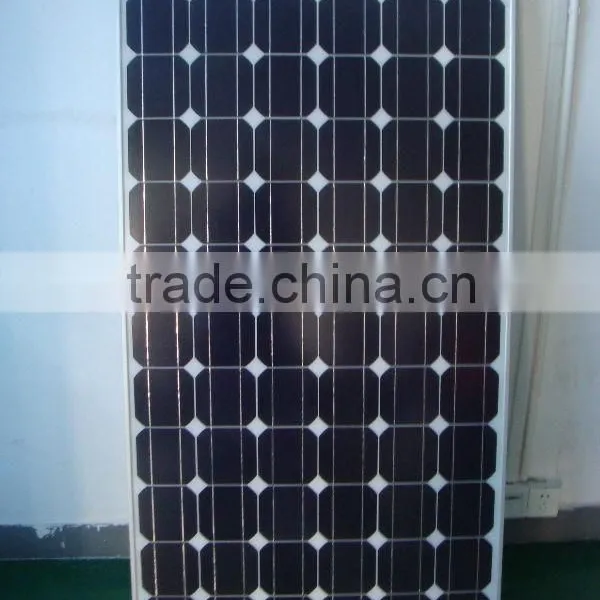

Help CenterJS 170D Photovoltaic
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JS
Model Number:
JS 170D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
JS
Model Number
JS 170D
Material
Monocrystalline Silicon
Size
1580mm*808mm*35mm
Number of Cells
72cells
Max. Power
170W
Specifications
25 years Quality Guarantee12 years 90% rated output
25 years 80% rated power output
CE,IEC,TUV,UL Certificates
JS 170D
Characteristics Packaging Configuration
Max-power:170W Packing:26pcs/Box
Power-tolerance:-/+3% Quantity:1 box/Pallet
Max-power Voltage:36.0V Loading Capacity:728pcs/40ft
Max-power Current:4.73A
Open-Circuit Voltage:44.0V
Open-Circuit Current:5.17A
Max-System Voltage:1000VDC
Cell efficiency:16%
Module efficiency:13.42%
Number of cells:72pcs(6*12)
Cell size:125mm*125mm(R 150)
No. of Bypass diodes:3
Type of connector:Compatible Type 3 or 4
Dimension:1580mm*808mm*35mm
Glass:Tempered Glass 3.2mm
