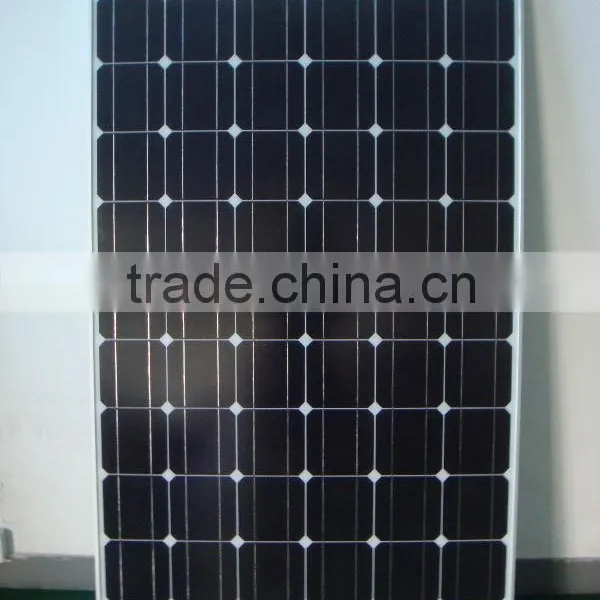

JS 245M Solar panel
Negotiable
1 (Min. Order)
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JS | |
| Model Number | JS 245M | Material | Monocrystalline Silicon | |
| Size | 1650mm*992mm*50mm | Number of Cells | 60cells | |
| Max. Power | 245W |
Product Description
Specifications
25 years Quality Guarrantee12 years 90% rated power output
25 years 80% rated power output
CE,IEC,TUV,UL Certificates
JS 245M
Charactristics Packaging Configuration
Max-power Voltage:30.50V Quantity:560pcs/40ft
Max-power Current:8.3A
Open-Circuit Voltage:37.00V
Short-Circuit Current:8.82A
Max-system:1000VDC
Cell Efficiency:17.3%
Module Efficiency:15%
Number of cells:60pcs(6*10)
Cell Size:156mm*156mm
No. of Bypass Diodes:3
Dimension:1650mm*992mm*50mm
Type of Connecter:Compatible 3 or 4
Glass:Tempered glass 3.2mm
