Colored Steel Plate Slitting Rolling Machine

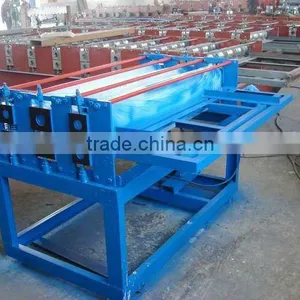

Colored Steel Plate Slitting Rolling Machine photo-1
US$ 1,740 - 3,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HUATONG
Model Number:
HT steel plate slitting rolling machine
Payment & Shipping
Payment Methods:
Port of Shipment:
XinGang port TianJin China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name HUATONG
Model Number HT steel plate slitting rolling machine

Specifications

1.Power of main motor : 2.2kw
2.Certification:ISO 9001:2000
3.Guarantee:12 months
4.Color: Blue

TECHNICAL  SCHEME

1.Name of machine:

HT  Colored steel plate slitting rolling machine



2.Main technique parameters of slitting rolling machine:

(1) Material of frame : (high grade) 80mm H shape steel welding

(2) Thickness of middle plate : 12mm

(3) Step of forming roller : 2steps

(4) Diameter of shaft (solid shaft): 61mm

(5) Material of shaft (solid shaft): (high grade) 45# Steel, quenching and tempering treatment

(6) Treatment of rollers : hard chromize coated

(7) Drive type of roll forming machine : drive by chain

(8) Chain : 19.05 mm (high grade)

(9) Bearing : 6210 (high grade)

(10) Reducer : 5# (high grade)

(11) Power of main motor : 2.2KW

(12) Voltage : 380V/50Hz/3phase

(13) Line speed : about 10-12 m/min

(14) Feeding width : 1000-1200mm

(15) Suitable coil thickness : accepted thickness for steel coil is 0.35mm-0.50mm.

(16) Cutter : 3sets

(17) Appearance size of main forming machine : 1.5m (length)*1.0m (width) *1.2m (height)

(18) Weight of main forming machine : about 0.9T

(19) Electrical parts : DELIXI or CHINT

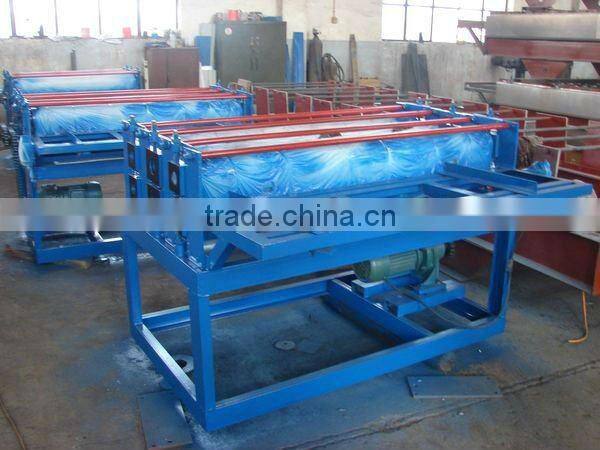

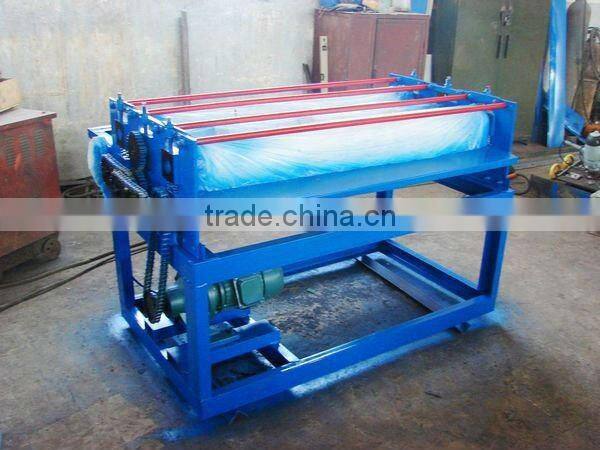

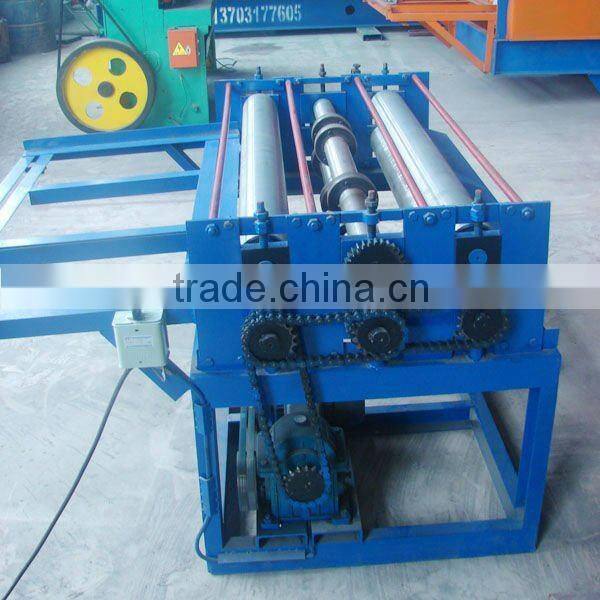

3.Photo of plate slitting machine :

Colored steel plate slitting rolling machine

 Colored steel plate slitting rolling machineColored steel plate slitting rolling machine





4. Certification of ISO 9000 for plate slitting rolling  machine

Colored steel plate slitting rolling machine





Note:We can customize the design and fabrication on the particular type of machine according to the request of custmer.
