Colored Steel Plate Slitting Machine

Nanpi Huatong Roll Forming Machinery Manufacturing Factory

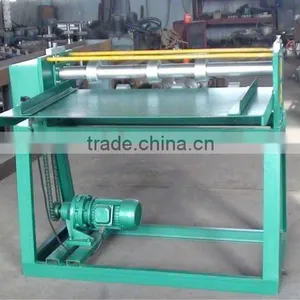

Colored Steel Plate Slitting Machine thumbnail-1
Colored Steel Plate Slitting Machine photo-1
US$ 1,740 - 3,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Tile Cutting Machine
Tile Type:
Colored Steel
Use:
Wall
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
XinGang port TianJin China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Tile Cutting Machine
Tile Type Colored Steel
Use Wall
Place of Origin Hebei, China
Brand Name HUATONG
Model Number HT steel plate slitting machine
Certification ISO 9001:2000

Specifications

1.Power of main motor : 2.2kw
2.Certification:ISO 9001:2000
3.Guarantee:12 months
4.Color: Blue

TECHNICAL  SCHEME

1.Name of machine:

HT Colored steel plate slitting machine



2.Main technique parameters of slitting machine:

(1) Material of frame : (high grade) 80mm H shape steel welding

(2) Thickness of middle plate : 12mm

(3) Step of forming roller : 2steps

(4) Diameter of shaft (solid shaft): 61mm

(5) Material of shaft (solid shaft): (high grade) 45# Steel, quenching and tempering treatment

(6) Treatment of rollers : hard chromize coated

(7) Drive type of roll forming machine : drive by chain

(8) Chain : 19.05 mm (high grade)

(9) Bearing : 6210 (high grade)

(10) Reducer : 5# (high grade)

(11) Power of main motor : 2.2KW

(12) Voltage : 380V/50Hz/3phase

(13) Line speed : about 10-12 m/min

(14) Feeding width : 1000-1200mm

(15) Suitable coil thickness : accepted thickness for steel coil is 0.35mm-0.50mm.

(16) Cutter : 3sets

(17) Appearance size of main forming machine : 1.5m (length)*1.0m (width) *1.2m (height)

(18) Weight of main forming machine : about 0.9T

(19) Electrical parts : DELIXI or CHINT

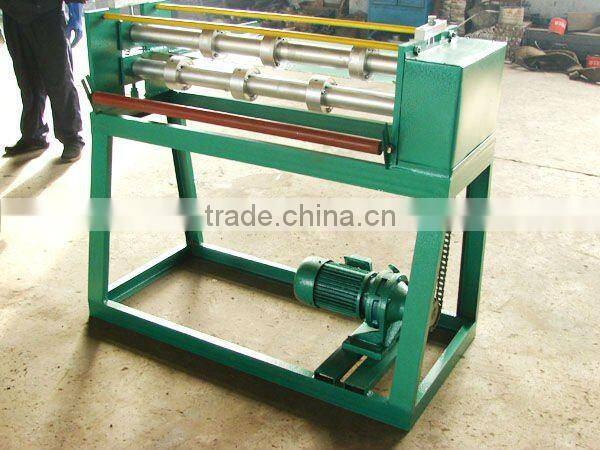

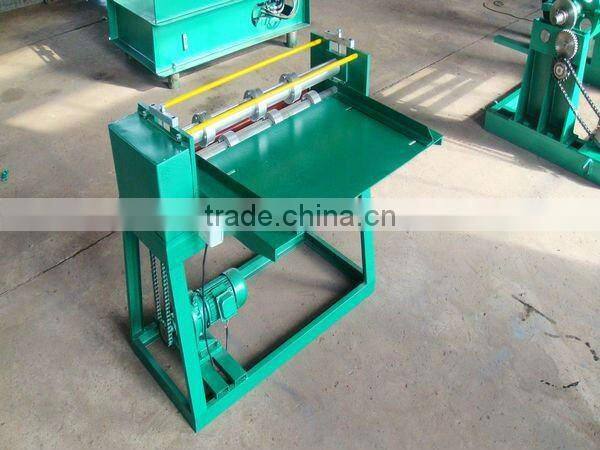

3.Photo of plate slitting machine :

Colored steel plate slitting machine

Colored steel plate slitting machine



4. Certification of ISO 9000 for plate slitting machine

Colored steel plate slitting machine





Note:We can customize the design and fabrication on the particular type of machine according to the request of custmer.
