Simple iron sheet slitting machine

Specifications

1.Power of main motor : 2.2kw
2.Certification:ISO 9001:2000
3.Guarantee:12 months
4.Color: Blue

TECHNICAL  SCHEME

1.Name of machine:

HT   Simple iron sheet slitting machine



2.Main technique parameters of iron sheet slitting machine:

(1) Material of frame : (high grade) 80mm H shape steel welding

(2) Thickness of middle plate : 12mm

(3) Step of forming roller : 2steps

(4) Diameter of shaft (solid shaft): 61mm

(5) Material of shaft (solid shaft): (high grade) 45# Steel, quenching and tempering treatment

(6) Treatment of rollers : hard chromize coated

(7) Drive type of roll forming machine : drive by chain

(8) Chain : 19.05 mm (high grade)

(9) Bearing : 6210 (high grade)

(10) Reducer : 5# (high grade)

(11) Power of main motor : 2.2KW

(12) Voltage : 380V/50Hz/3phase

(13) Line speed : about 10-12 m/min

(14) Feeding width : 1000-1200mm

(15) Suitable coil thickness : accepted thickness for steel coil is 0.35mm-0.50mm.

(16) Cutter : 3sets

(17) Appearance size of main forming machine : 1.5m (length)*1.0m (width) *1.2m (height)

(18) Weight of main forming machine : about 0.9T

(19) Electrical parts : DELIXI or CHINT

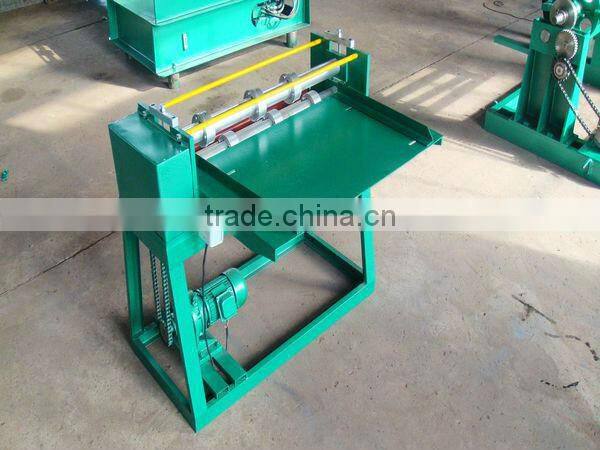

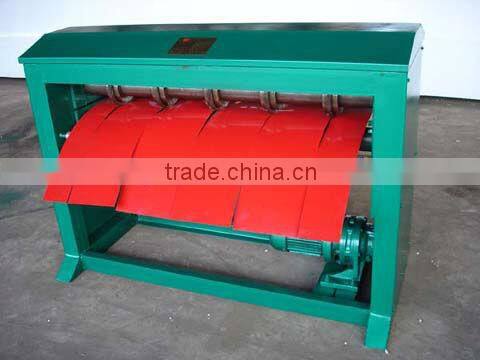

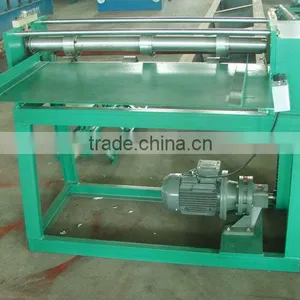

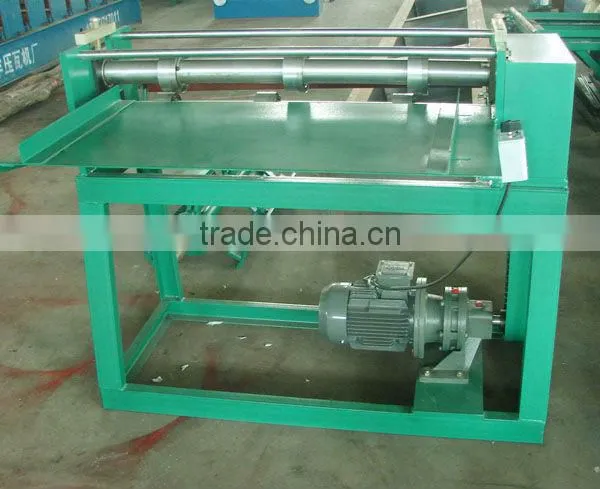

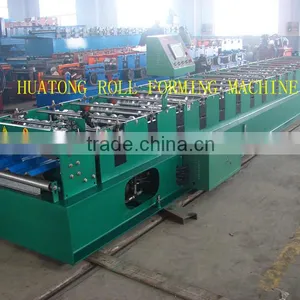

3.Photo of sheet slitting machine :

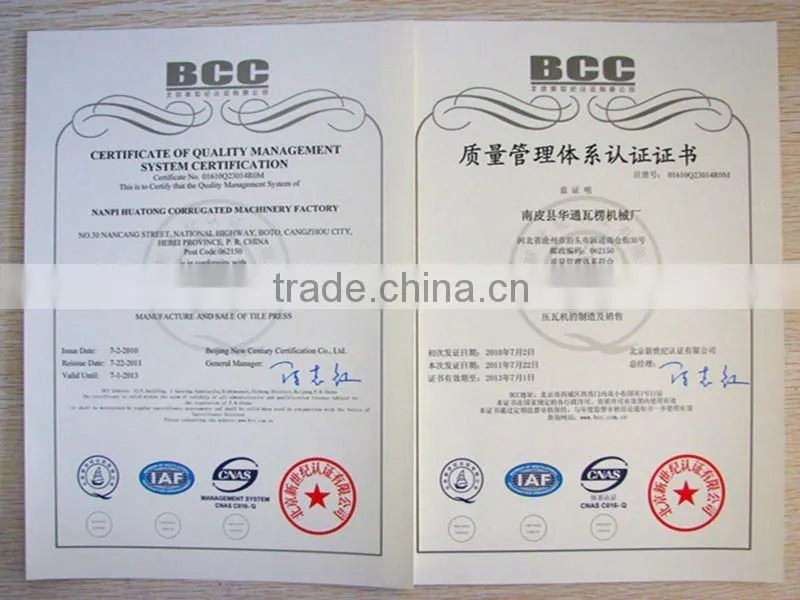

4. Certification of ISO 9000 for sheet slitting machine





Note:We can customize the design and fabrication on the particular type of machine according to the request of custmer.
