New aluminum coil slitting machine

Specifications

1.HT Aluminum coil slitting machine
2.Certification: ISO 9001:2000
3.Guarantee:12 months
4.Usage: coil slitting
5:Color: an

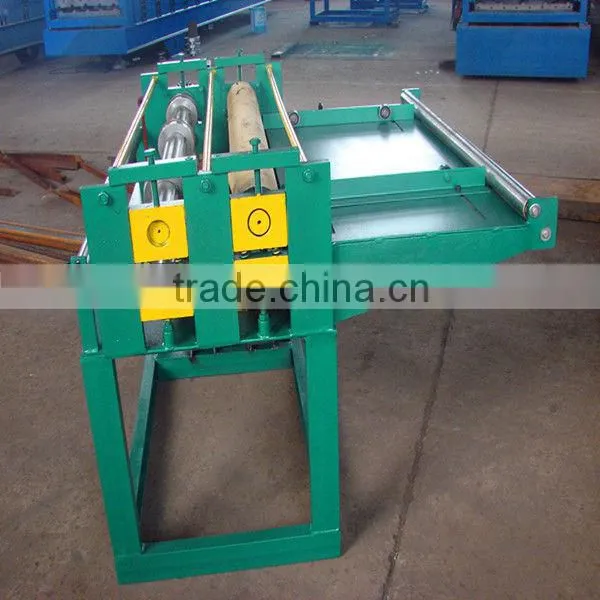

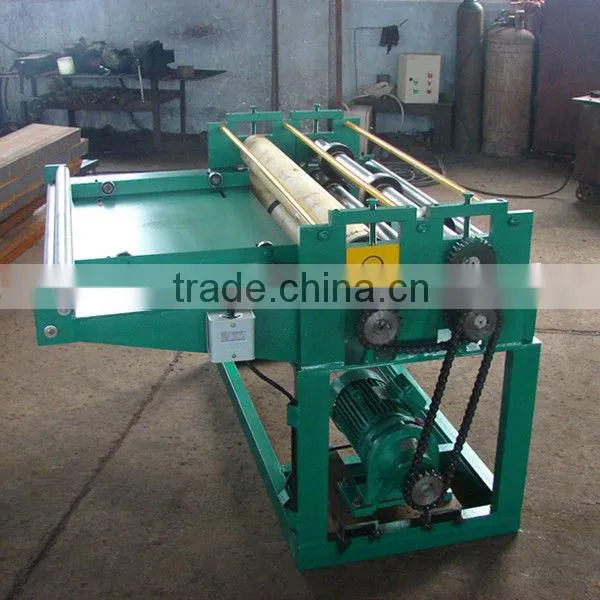

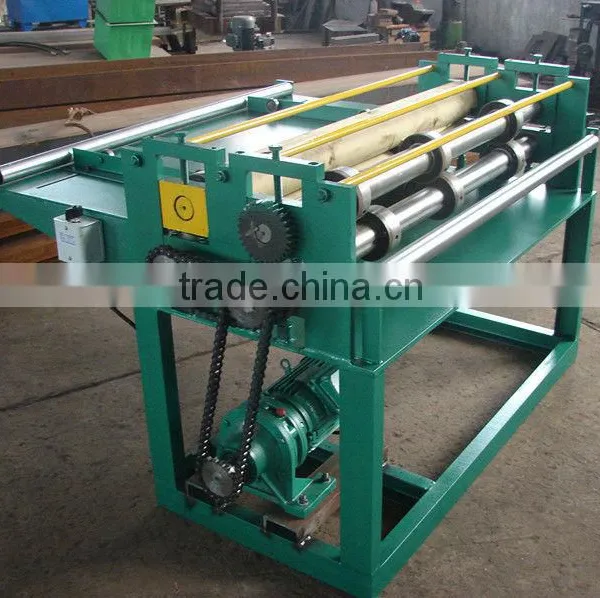

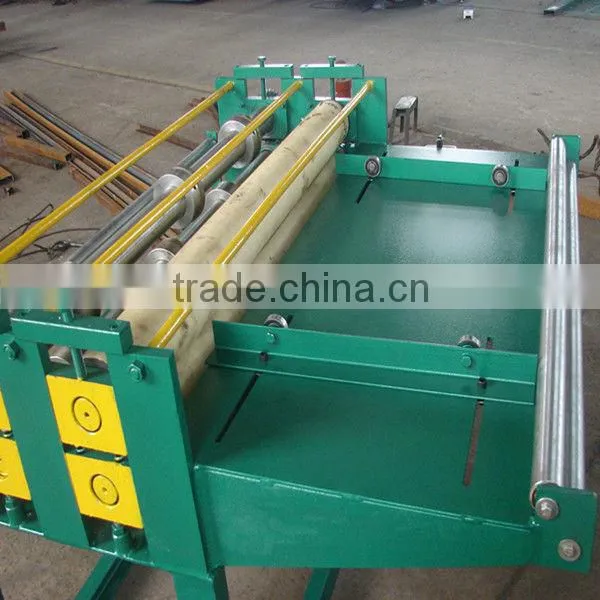

Aluminum coil slitting machine


main parameter  of aluminum coil slitting machine



1	Material of frame	(high grade) 80mm H shape steel welding
2	Thickness of middle plate	12mm
3	Step of forming roller	4steps
4	Diameter of shaft	61mm
5	Drive type	drive by chain
6	Chain	19.05 mm (high grade)
7	Bearing	6210 (high grade)
8	Reducer	5# (high grade)
9	Line speed	about 10-12 m/min
10	Feeding width	1000-1200mm
11	Suitable coil thickness	0.35-0.50mm
12	Cutter	3sets
13	Weight of machine	about 0.9T
14	Appearance size of machine	1.5m (length)*1.0m (width) *1.2m (height)
15	Electrical parts	DELIXI or CHINT



coil slitting machine, steel sheet slitting machine, metal slitting machinery, aluminum coil slitting machine













Certification of Hutong roll forming machine factory







Note:We can customize the design and fabrication on the particular type of machine according to the request of custmer.













Welcome your inquiry. We are sure you will get good machine quality and best service.
