Crescent 01 Series 3000-3100K 3W 5W 10W 15W 20W 30W led

Name: Crescent 01 Series 3000-3100K 3W 5W 10W 15W 20W 30W led
Brand: Crescent
Price: USD $0.25 - 0.5 / Piece

FOB Price

USD $0.25 - $0.5 / Piece

500 Pieces(Min.Order)

Product Details

Model Number:	XY-01-10W	Chip Material:	InGaN	Emitting Color:	Other, Natural White, Pure White
Luminous Intensity:	800-900mcd	Luminous Flux(lm):	800-900lm	Optical Attenuation(%):	0.2
Power:	Other, 10W	Power Dissipation:	0.2	Color Rendering Index(Ra):	75
Color Temperature:	4000-4500K, 4000-4200K	Operating Temperature(℃):	-35, 65	Storage Temperature(℃):	-35, 80
Place of Origin:	Guangdong, China	Brand Name:	Crescent

1. Rohs Compliance 10W led
2. 50000hrs life span
3. 350mA, 32-34V, 800-900lm
4. 3 years warranty.

1. Product Parameter of 10W led :

Electrical/Optical Characteristics (At T_A=25°C)

Parameter	Symbol	Conditions	Min.	Avg.	Max.	Units
Luminous Intensity	Φ	I_F=350mA	800		900	lm
Color Temperature	CCT	I_F=350mA	3000		3100	K
Forward Voltage	V_F	I_F=350mA	32		34	V
Color Rendering index	Ra	I_F=350mA	70		75	− −
Thermal Resistance Junction To Board	RΘ_J-B	I_F=350mA		10		°C/W
50% Power Angle	2q½	I_F=350mA		120		deg
Reverse Current	I_R	V_R=50V			5	μA

Product Information of 10W LED:

1). New design, broader emitting area, higher refractive index and softer light ray. Imported fluroscent powrder, high quantumn efficiency. low heat.

2).Capsulation with silica gel, able to stand with high temperature, anti-fade, with high efficiency of reflection and transmission.

3). Insulation plastic material, bein able to stand high voltage and high temperature, no distortions.

4). Heat conductive base if made of aviation aluminum, fast in heat conductive.

5). Using high quality chip. Delicately arranged chip, to ensure unifor ray and quick heat dissipation.

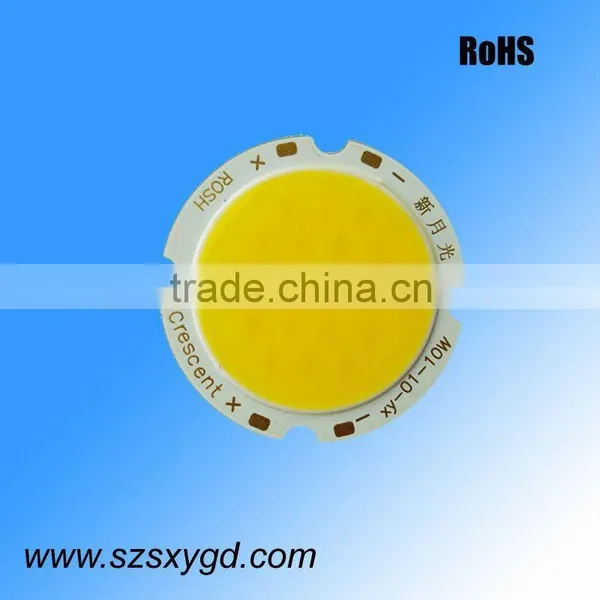

Product Images of 10W LED:

Shenzhen Crescent Optoelectronic Co., Ltd.: Contact nameSerena Xiao; Phone86-755-29423709; AddressBuilding 12, Shiguan Industrial Park, Shangcun Community, Gongming Street, Guangming New District
