natural white 5W chip on board LED module
Negotiable
/ Piece
100 Pieces(Min.Order)
- 20 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
12V-COB-3000K-01M Inspired LED LED Lighting Bars and Strips White 3000K, 12 volt 1 Meter Strip
-
Flexible COB LED Strip Light Dv12v 420leds/m Color Pink
-
Dv12v 420leds/m Pink Cob Led Strip Flexible COB LED Strip Light
-
Cob Yellow Light Strip Led Led Chip Customize Logo DC24v 12v flexible yellow color led cob strip blue cob led strip light
-
Numeric Display with 7 Segments
-
Numeric Display
Product Details
| Model Number: | XY-C5QWC2B | Chip Material: | InGaN | Emitting Color: | Natural White |
| Luminous Flux(lm): | 400-450Lm | Optical Attenuation(%): | 0.2 | Power: | 5W |
| Power Dissipation: | 5.95 | Color Rendering Index(Ra): | 70 | Color Temperature: | 4000-4200K |
| Operating Temperature(℃): | -30, +60 | Storage Temperature(℃): | -30, +60 | Place of Origin: | Guangdong, China |
| Brand Name: | Crescent |
Product Description
Specifications
natural white 5W COB LED 02 series1.RoHS verified
2.high brightness,competive price
3.No UV,low light decay
4.diameter:44mm
5W COB LED 02 Series Product Readme
Part Number | Emitting color | Forward Current(mA) | Power Dissipation(W) | Wavelength(nm)CCT(K) | Driver Voltage(V) | Luminous Flux(Lm) |
XY-C5QWC2B | White | 350 | 5.95 | 2500-10000 | 16-17 | 400-450 |
XY-C5BRB2B | Red | 350 | 4.2 | 615-630 | 10-12 | 200-300 |
XY-C5BYN2B | Yellow | 350 | 4.2 | 585-595 | 10-12 | 200-300 |
XY-C5BBA2B | Blue | 350 | 5.95 | 460-470 | 16-17 | 100-200 |
XY-C5OGF2B | Green | 350 | 5.95 | 515-530 | 16-17 | 300-400 |
All the wafers are bonded four gold wires. We use 1.2u gold wire.

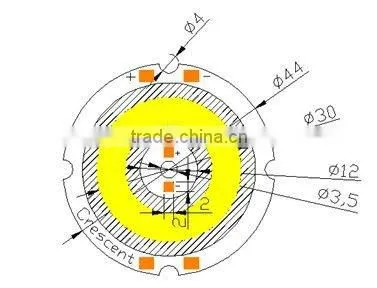

Package Dimensions:
Note:1. All dimensions are in millimeters.
2. Tolerance is ±0.25 unless otherwise noted.
