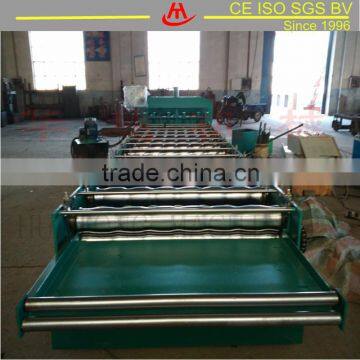

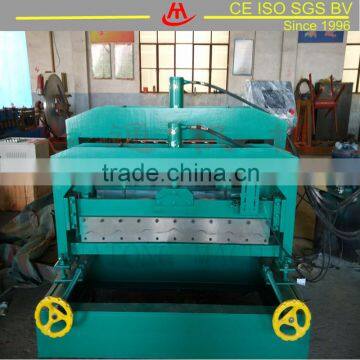

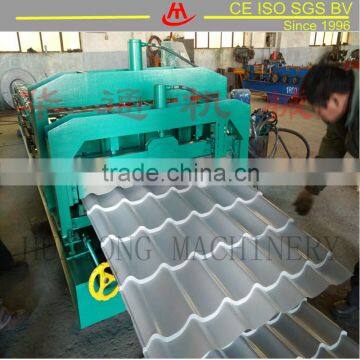

Superior Quality Colored Glazed Steel Roof Tile Roll Forming Machine
Certificate: ISO, CE,
Lifetime services
Technician overseas installing and training available
Welcome to Contact direct Ce Iso Glazed Tile Roll Forming Machine manufacturer here.

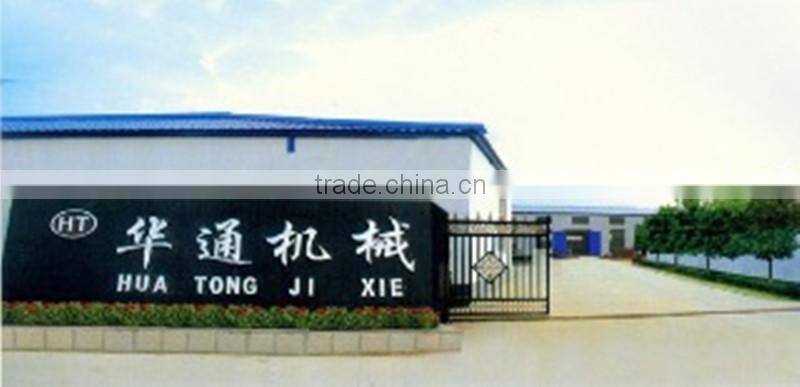

Superior Quality Colored Glazed Steel Roof Tile Roll Forming Machine in China Industry is fully customized solution, Huatong Machinery has specialized in this industry over 20 years,experienced assembling and testing team, Huatong Machinery has confidence to supply you both European Style and Traditional Style roll forming machiney with top quality in china.
Superior Quality Colored Glazed Steel Roof Tile Roll Forming Machine made in China Product Feature:

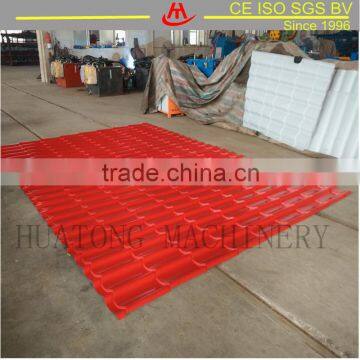

The metalic profile produced by roll forming machine look beautiful, elegant and noble. They are widely used for garden, factory, hotel, exhibition center and villa, etc.
Superior Quality Colored Glazed Steel Roof Tile Roll Forming Machine
made in China Components:

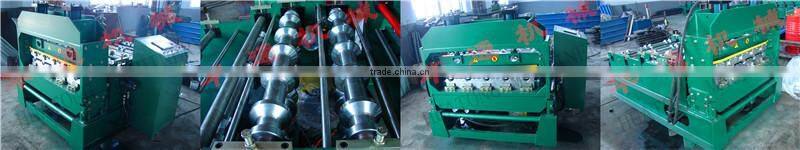

Roll forming machine consists of Uncoiler, Coil sheet guiding device, Main roll forming system, Post cutting device, Hydraulic station, PLC control system and Support table.
Optional with Hydraulic Decoiler, Auto Stacker, Safe Cover, Pre-Cutting, Film Covering Device, and so on.
Superior Quality Colored Glazed Steel Roof Tile Roll Forming Machine
made in China Working Flow:
Decoiling→Feeding & Guiding→Flattening(If need)→Pre- Punching/Cutting(If needed)→Roll Forming→Post Step pressing/Punching(If needed)→Post Cutting→Finished Products To Support Table
Superior Quality Colored Glazed Steel Roof Tile Roll Forming Machine
General Technical Specs
No |
Item |
Parameter |
Note |
|
1 |
Suitable Material
|
Type |
Metal Sheet |
|
|
Customized Profile |
|||
Thickness |
0.3-0.8mm |
|||
Yield Strength |
235MPA |
|||
2 |
Product Specs |
Cover width |
Customized Profile |
|
Length |
Any length |
|
||
|
3
|
Power Specs |
Type |
380V/3PH/50HZ |
Up to Practical Profile |
Main Motor |
3-11KW |
|||
Hydraulic |
2.2-5.5KW |
|||
4 |
Machine Specs |
Transmission |
Chain and Sprocket |
|
Structure |
Column Block Or Wall Plate |
|
||
Shaft |
No.45 steel tempered |
|
||
Rollers |
No.45 steel chrome coated |
Cr12 or other acceptable |
||
Cutting Blade |
Cr12 quenched |
|
||
Press Mould |
Cr12 quenched |
|
||
Punch Mould |
Cr12 quenched |
|
||
5 |
Working Capacity |
Forming Speed |
8-15 m/min |
Higher Speed Solution Available |
Working Speed |
Up to Length-set Cutting |
|||
6 |
Decoiler (Optional) |
|
||
7 |
Forming Stand |
8-48 |
Up to Practical Profile |
|
8 |
Forming Shaft Diameter |
55-120mm |
Up to Practical Profile |
|
9 |
Type of Cutting |
Length-set cutting after roll formed |
Pre-cutting acceptable |
|
10 |
Control System |
DELTA PLC and Inverter |
|
|
11 |
Output Supporter(Optional |
2 Pcs Simple Supporter or Auto Stacker Optional |
||
Our customized Superior Quality Colored Glazed Steel Roof Tile Roll Forming Machine
made in China mainly including follow types.

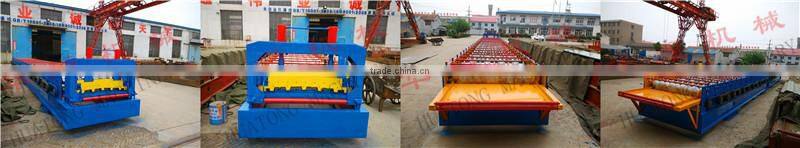

Wall and roofing sheet roll forming machine
Metal roofing and wall sheet is widely used building material, can be used on residential, commercial, industrial or agricultural buildings.

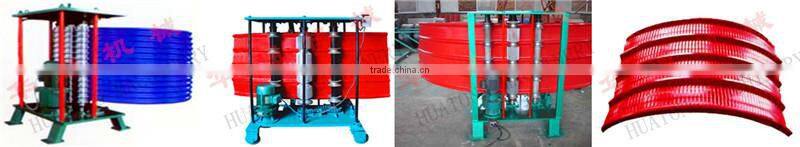

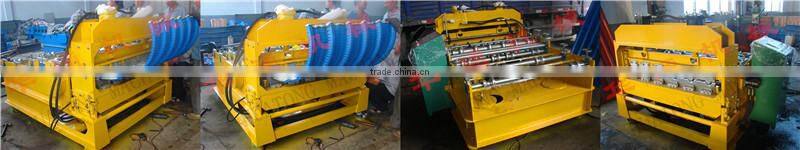

Curving machine

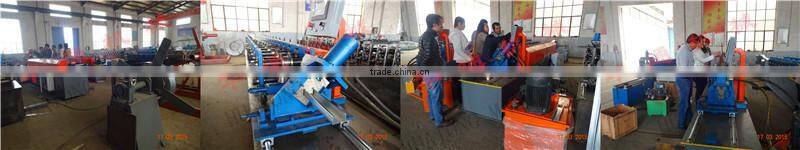

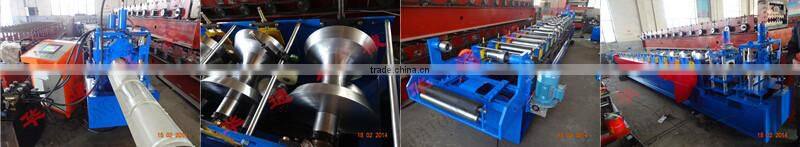

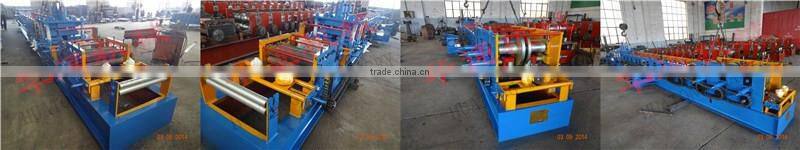

C purlin roll forming machine

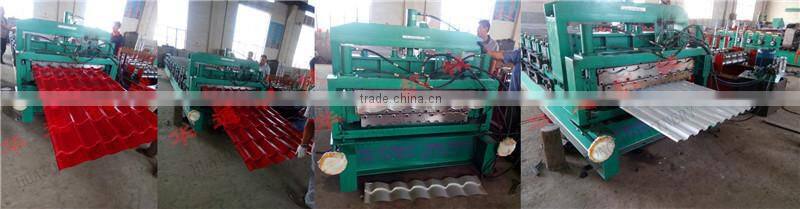

Double layer machine for different profile design
Could produce two layer different profile on one machine, such as two layers of different roofing sheet, or one layer roofing sheet, one layer roofing tile, it's very suitable for saving machine space, energy and operating, etc.
Floor decking forming machine
Finished Floor decking sheet is used for interlock with concrete slab, normally with embossment for getting higer adhesive capacity to guarantee complete floor loading structure.

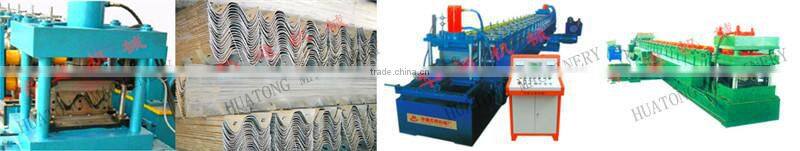

Expressway Guardrail forming machine
Use for anti crash barrier on expressway, for the aim to keep people or vehicles from(in most cases unintentionally) straying into dangerous or off-limites areas.

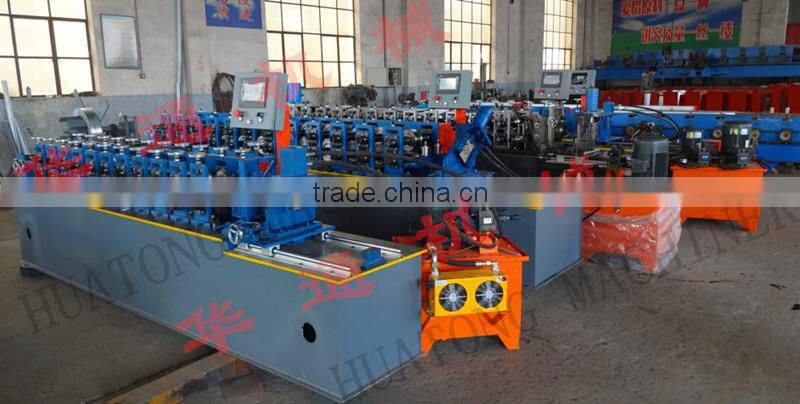

Stud and Track forming machine
Ridge Cap forming machine
And So On...

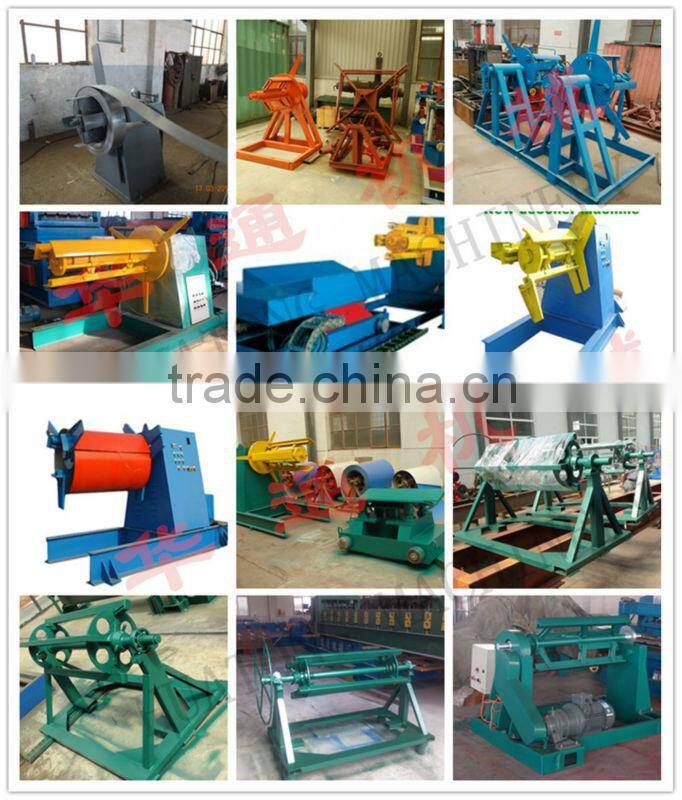

Optional with Different Kinds Of Decoiler
Loading Machine.
If any customized machinery interested in, feel free to contact us for further discussion. We will provide most suitable machine solution for your market.
