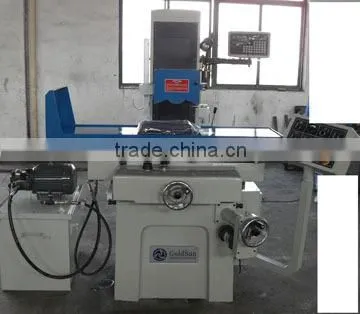

ELECTRIC SURFACE GRINDING MACHINE MD1022

ELECTRIC SURFACE GRINDING MACHINE MD1022 thumbnail-1
ELECTRIC SURFACE GRINDING MACHINE MD1022 photo-1
US$ 3,300 - 3,600 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SIMEX
Model Number:
MD1022
Contact Supplier Request Quote Chat Now
Shaanxi Simex Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name SIMEX
Model Number MD1022

Specifications

1.table size :540X250mm
2.max grinding length:560mm
3.max grinding width:260mm

ELECTRIC SURFACE GRINDING MACHINE MD1022 SPECIFICATION:


1,Adopt the exceeding precise class7(P4 level) ball bearing for spindle.
2,The transmission of table can be dynamical and manual



Technical Parameters

Unit

MD1022

piece to be Ground ( L×W×H)

mm

540×250×450

Max. Grinding Length

mm

560

Max. Grinding Width

mm

260

Distance From Table Surface To Spindle Center

mm

450

V-type rail with Steel-ball

Kg

200

Table Size (L×W)

mm

540×250

Number of T -Slot

mm×n

14×1

Speed OF Working Table(Stepless)

m/min

3-20

Cross Feed On Handwheel

mm

0.02/Graduation 2.5/revolution

Auto feed in transverse (Stepless)

mm

0-5

Rapid feed in transverse

r/min

150

Wheel Size (dia.×width×bore )

mm

200×20×31.75

Spindle Speeds

50Hz

rpm

2850



30-6000

Spindle Motor

Kw

1.5

Auto-feed motor in transverse

Kw

0.2

Auto-feed motor in longitudinal

Kw

0.2

Machine Size (L×W×H)

mm

1680×11400×1760

Packing Size (L×W×H)

mm

1200×1400×1940

Gross,Net

T

O.98, 0.88
