New !!! Magic Pie 4 / Smart Pie 4 Electric Bicycle Conversion Kit With Vector Controller E Bike Kit With ControllerUS$ 138 - 145MOQ: 8 Units
Specifications
1. New Vector controller
2. Built in controller
3. Programmable
4. CE approved
5. High torque, Fastest speed
Product Description of Smart pie electric bicycle conversion kit :
Smart pie electric bicycle conversion kit details:
throttle and brake optional of Smart pie electric bicycle conversion kit :

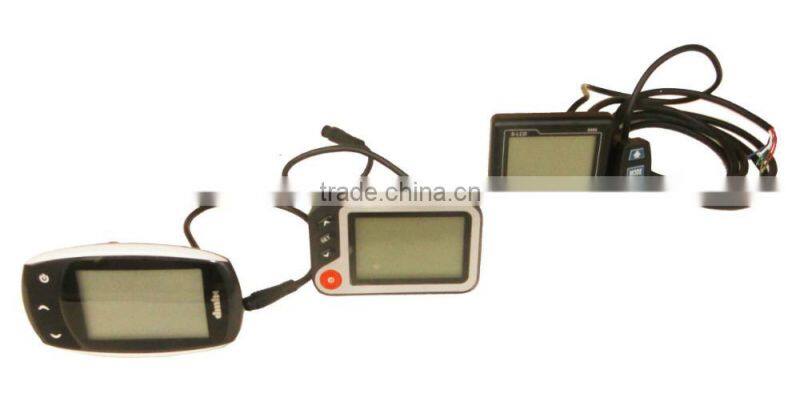

LED/LCD display optional of Smart pie electric bicycle conversion kit :

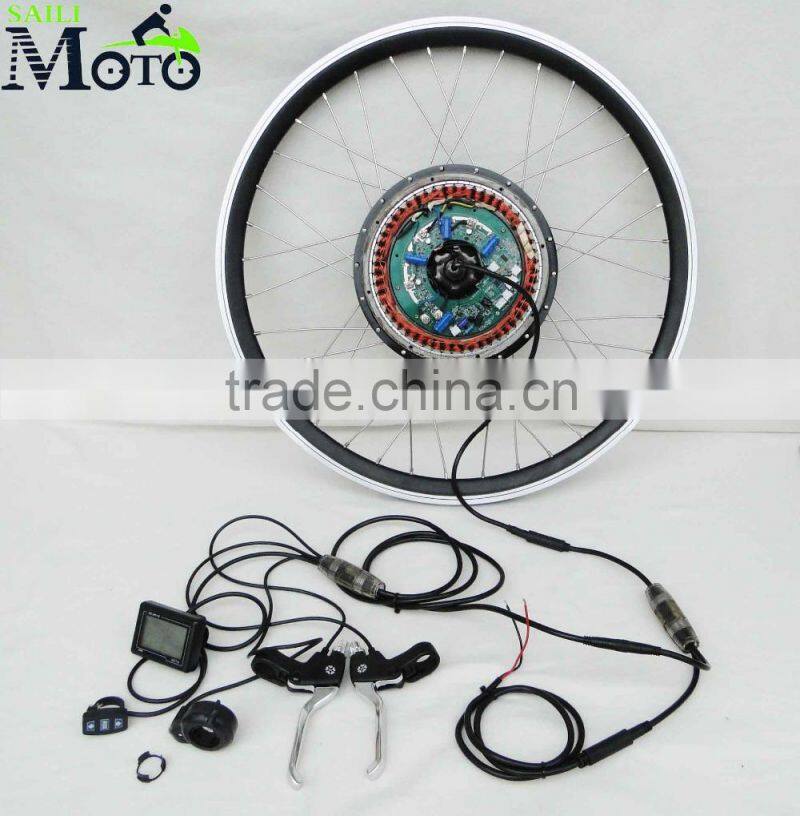

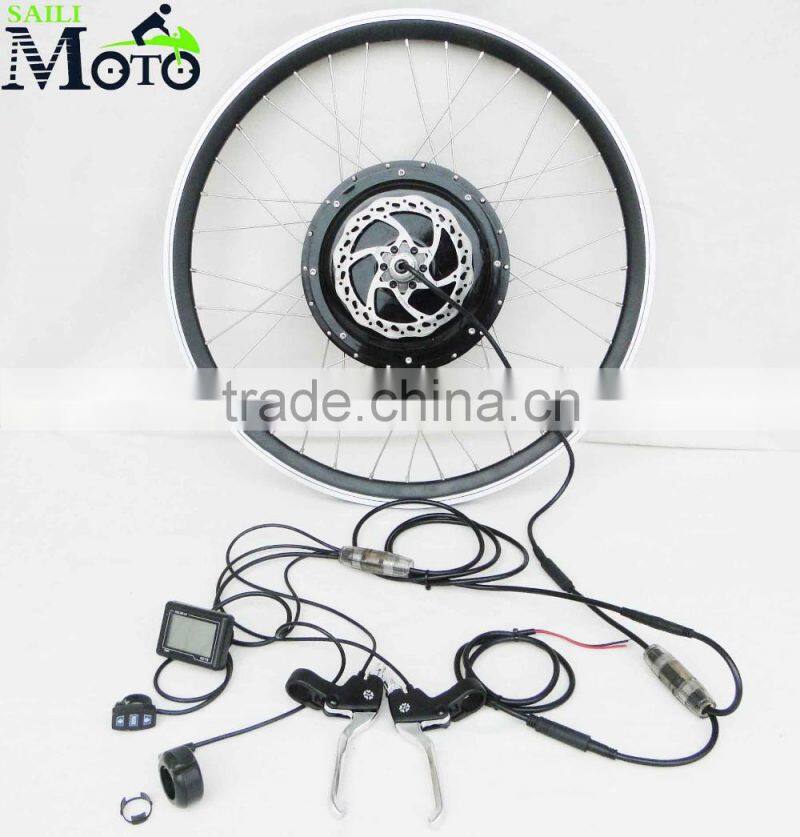

ebike DIY kit includes:
a.burshless geared motor 1pc,
b.intelligent controller 6fets 1pc,
c.throttle 1pare,
d.brake lever 1pre,
e.36v8.8ah tube battery with charger 1pc.
f.LCD or LED display.
g.PAS with 8points magnet 1pc.
h.torque bar and motor washer .
All available electric bike kit list
MAGIC PIE KIT |
Contents: 1. MagicPie4 motor (Built-in Control) 2. All-in-one integraged Cable with Thumb or Twist Throttle with Battery gauge, Brake levers, Cruise control button. 24V/36V/48V 500/750 (16''/18''/20''/24''/26''/28"/700c Full size available) |

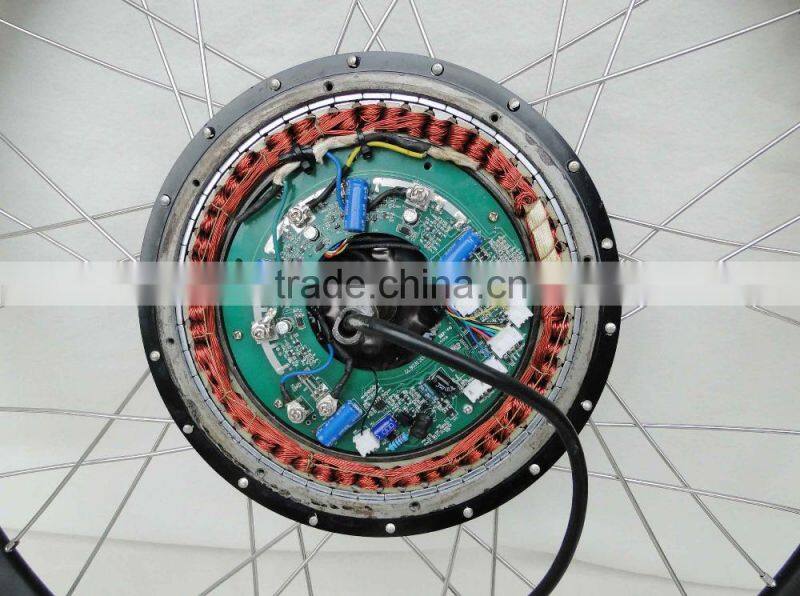

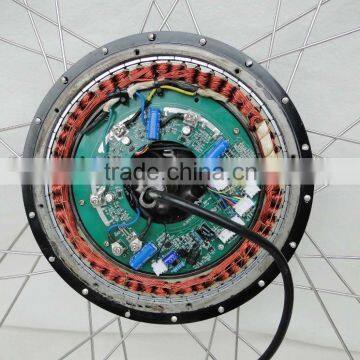

MagicPie motor: Max phase current: 80A Continuous current: 30A Open voltage:20-60V Rated power: 500-750W Pie motor: Max phase current: 50A Continuous current: 18A Open voltage:20-60V Rated power: 200-400W Key features: 1. Upgraded controller with true vector control. Highest Reliablity! 2. More responsive, Smooth control 3. Parameter programable 4. Higher Torque 5. Higher Efficiency 6. Lower noisy 7. No vibration at slow speed 8. True temperature sensor insde and Lower overheating 9. Regenerative braking 10. Cruise speed control |
|
Smart Moter KIT |
Contents: 1. SmartPie4 motor (Built-in Control) 2. All-in-one integraged Cable with Thumb or Twist Throttle with Battery gauge, Brake levers, Cruise control button. 24V/36V/48V 200/300/400W (16''/18''/20''/24''/26''/28"/700c Full size available) |

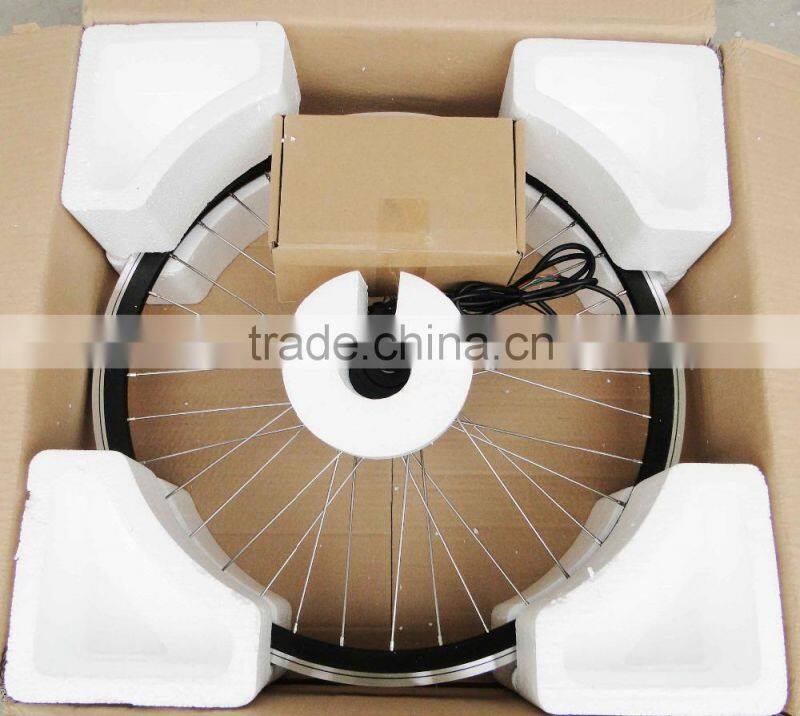

7layers waterproof cartons +foam,can be second time transport.
a.Warranty :motor is 3years ,battery is 18months,controller and charger are 1year.
b.OEM &ODM are available as customers demand.
c.We have professional team on conversion kit ,10years working experience engineers and sales .
d.Workers are well trained ,testing every single parts before packing.
e.Sales reply to you within 24hours .online time is long ,easy to contact .
f.After service is fast ,send replacement parts as soon as you send fault parts to check.
Q:What`s the different from geared motor and gearless motor ?
A:Geared motor inside is gears ,life time is about 3years ,gearless motor life time is 5years. geared motor is better at climbing.torque is powerful.efficienty is above 82%,better than gearless motor .
Q: What is the difference between front wheel and rear wheel?
A: Front wheel open size is 100mm, is easier to install ,10mins is ok . it is suitable for flat road riding. Rear wheel open size is 135mm, is better for hilly road and hill climbing, and motor can assemble speed gears.
Q:How to ship one sample ?
A:One sample is better shipping by air ,battery shipping by TNT only.sea shipping cost is low ,even free,but nearly all destination port charge is high ,similar as air shipping,but air shipping save a lot of time .
Why choose us ?
Because we are professional and best price ,pls feel free to contact us.we have condience to meet all your demanding .
