u System design basis
- 1. raw water is seawater
- 2. salt content of seawater<38000ppm,the output water<600PPM.
- 3. Finished water can reach technical parameters
(1)produced water flow:50L/h, water temperature : 25℃
(2) desalinated water quality is in line with national drinking water quality standard.
u Description of technology
YFRO series seawater desalination equipments are designed and manufactured as our customers’ requirements, convenient to install, adaptable to many place for installation. This kind of equipments easily operate and conveniently maintain, as long as there is seawater and electricity, it can provide fresh water immediately as soon as it starts. Desalination equipments highly remove salt .stable performance, safe and reliable, innovative design, avoid wash frequently, and without environment pollution. Its frame is made of stainless steel, anti-rust and anti-corrosion. Applicable electric power (380V/50Hz), they can be available for a majority of boats and yachts.
u Technical Parameters:
S/N |
Name |
Material origin |
Model |
Qty |
Remark |
||
1 |
precision filter |
Plastic |
20” |
2pcs |
Equipped with 20" filter cartridge 2 PCS Flow 1M3 /h Working pressure 0·2MPa |
||
2 |
RO device |
This system has auto backwashing and manual backwashing, water shortage and high-voltage protection functions. rated flow 50L/h rated pressure 0.6Mpa desalination rate 99.5% recovery rate 33% |
|
||||
membranes housing |
FRP |
2540 |
1pc |
|
|
||
membranes |
America Filmtec |
SW30-2540 |
1pc |
|
|
||
multi-stage pump |
Brass plunger pump Germany Speck |
P21/23-130S |
1 set |
Voltage 380V Power 0.55kw Working pressure 13Mpa Flow 23.1L/min. |
|
||
Conductivity meter |
Made in China |
CM230 |
1pc |
|
|
||
Flow meter |
Suzhou |
1T |
2 pcs |
|
|
||
Solenoid valve |
China |
DF25 |
1pc |
|
|
||
Stainless steel frame |
SUS304 |
|
1 set |
|
|
||

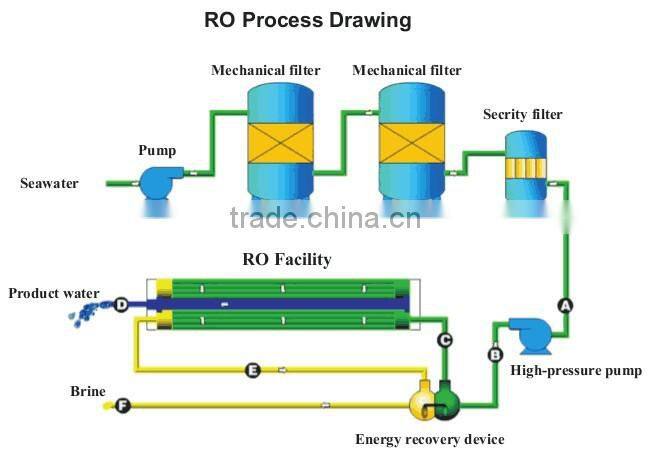

u Technical process
(Whole process of production line of pure water)

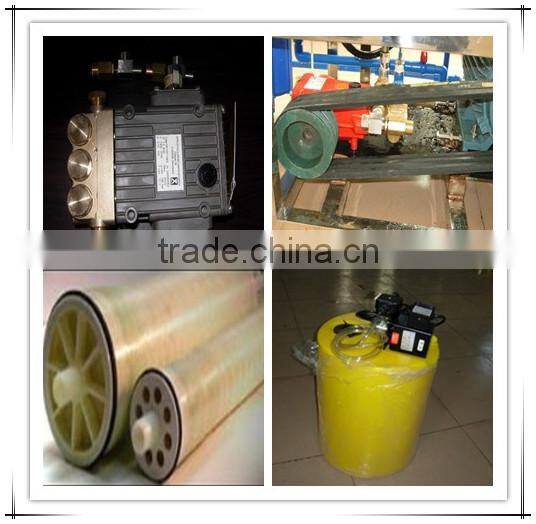

Some pictures about the machine
