Help CenterYF-A2 Fully Automatic PET Bottle Blowing Machine
Related Products
-
YF-A4 Fully Automatic PET Bottle Blowing MachineNegotiableMOQ: 1 Set -
YF-A2 Full Automatic Bottle Blowing MachineNegotiableMOQ: 1 Set
-
PET Bottle Making Machine PET Bottle Blow Moulding MachineNegotiableMOQ: 1 Set
-
Plastic Bottle Making Machine PET Blow Molding MachineNegotiableMOQ: 1 Set
-
Semi-automatic Bottle Making Machine for 5 Gallon (19L)bottle Blow Moulding MachineNegotiableMOQ: 1 Set
1. Applicable scope:
is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, edible oil bottle,cosmetics, wide-mouth bottle and hot fill bottle etc.
2.Main parts of the fully automatic blow machine
|
YF-A2 Full –Automatic Blow molding machine (2cavity) |
Model |
Product name |
QTY/SET |
YF-A2 |
Main body |
1 |
|
YF-A2 |
Auto-loader machine |
1 |
|
1.0/30KG |
High pressure air compressor |
2 |
|
2.0/10KG |
Low pressure air compressor |
1 |
|
2.0/30KG |
Air cold dryer |
1 |
|
1.0/30KG |
Air filter |
3 |
|
0.6/30KG |
Air Tank |
1 |
|
2cavity |
Blow mould |
1 |
|
Output |
300ML 2300pcs/hr |
||
3. Related pictures of every part:
|
|

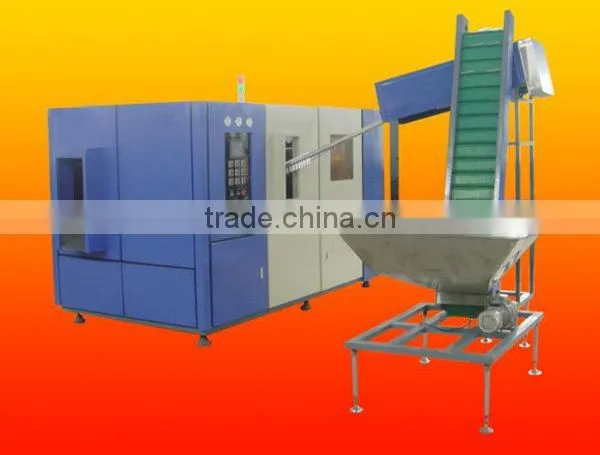

blow main machine & bottle loader |

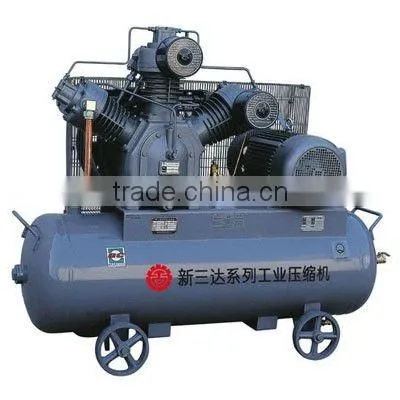

High pressure air compressor |
|
|

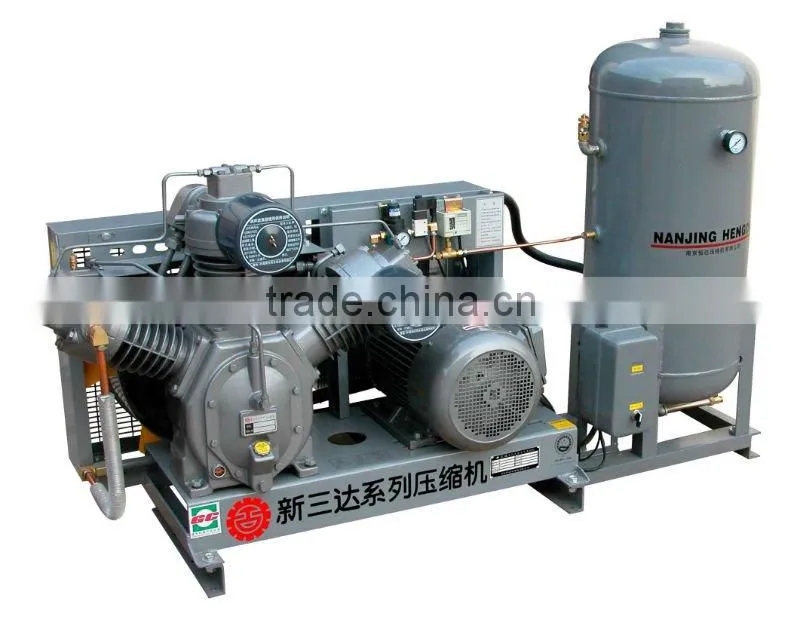

Low pressure air compressor |
High pressure air storage tank |
|
|
control system |
sensor system |
|
|
|
heating system |
clampling mould system |
4.Features:
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: less than 0.3percent.
5. Finished PET bottle samples produced by YF-A2 as follow:
Kindly reminder:
We have a team of professional technicians for designing bottles' shape and developing and improving our technique, also we have after-sale service technicians for installing and maintaining.
