Model: |
YF12/12/4 |
YF16/12/6 |
YF18/18/6 |
YF24/24/8 |
YF32/32/10 |
Heads of washing filling sealing |
12-12-4 |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
Production Capacity:500ml(B/h) |
3000 |
4000 |
6000 |
10000 |
12000 |
Suitable Bottle Standard:(mm) |
φ=50-100mm, H=150-300mm, 330-1500ml |
φ=50-100mm, H=150-340mm, 330-1500ml |
φ=50-100mm, H=150-340mm, 330-1500ml |
φ=50-100mm, H=150-340mm, 330-1500ml |
φ=50-100mm, H=150-340mm, 330-1500ml |
Suitable cap type |
plastic screw |
plastic screw |
plastic screw |
plastic screw |
plastic screw |
Filling Pressure:(Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
Motor power |
2.2 |
2.2 |
3.0 |
3.0 |
4.0 |
Filling Temperature: |
Room temperature |
Room temperature |
Room temperature |
Room temperature |
Room temperature |
Overall dimension(L×W×H(mm) |
2450×1450×2300 |
2400×1670×2350 |
2470×1970×2350 |
2865×2170×2350 |
4000×2570×2500 |
Total weight: (kg) |
2500 |
2500 |
3000 |
4000 |
5000 |

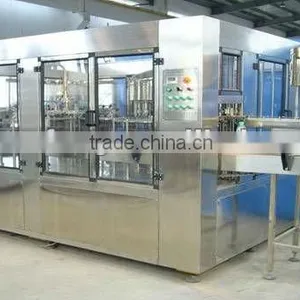

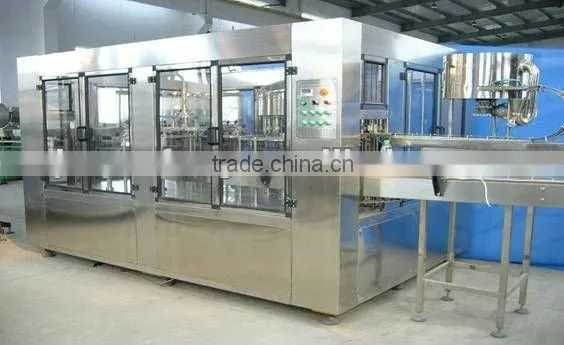

Automatic water bottle filling machine, Beverage filling Machinery:
This YF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The XGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
