Bottled water filling machine, mineral water bottling machine, suitable bottle size from 250ml to 2000ml(2litres)

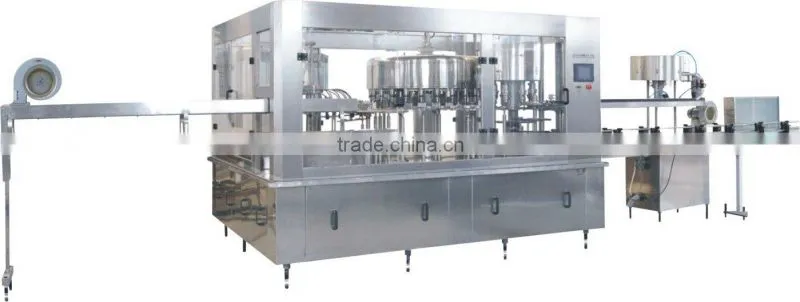

filling machine---XGF series fully automatic rinsing, filling and rotary capping combined machine. whose main technique was imported from Italia, can realize to asepsis filling. Because it is equipped with constant temperature controlling system. It can apply to fill drinking water. The complete set of machine is more advanced in technique, smaller in space occupied, more compact in structure, it is suitable for normal temperature filling PET bottled no gas contained beverages (Mineral water, purified water, distilled water, and so on).as well as washing, filling and sealing other liquid, It achieves 1990"s international advanced level, It is the best choice of taking place of imported one.
Main Technical parameters | |
Model |
YF-18-18-6 |
Heads of washing, filling, sealing |
18-18-6 |
Production capacity(bottle/hour) |
4000-6000BPH |
Suitable bottle height |
Φ=50-110 (330-1500ml) |
Spraying pressure |
0.25-0.3Mpa |
Main Machine Power |
3kw |
Overall dimension(L×W×H) |
2495×1975×2270mm |
Weight |
4300kg |

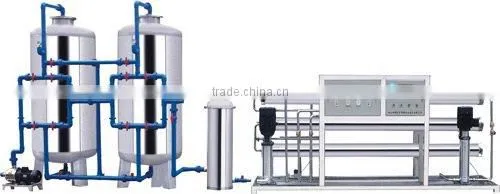

A.Water treatment equipment
1.it adopts current advanced RO system technique to manufacture pure water , the electric conductivity of it is commonly less than 10us/cm ,better than state GB17324-2005 standard, output water is asepsis, no granule, pure and clean.
2. In this system, American Hydranautics ESPA-4040 RO membrane is adopted, the rate of removing salt is 98% , the recovery rate is 50-75%, which come into being a unique technical style. The entire system was verified by many pure water manufacturers that the removal rate of bacterial ,poisonous heavy metals, radionuclids and organic micro-pollutants in water are as high as 99.99%,95%,99% and 95% respectively. the quality of water is clean and sweet, eradicate the toxic and harmful substances in the water and a number of toxicity indicators , such as trihalomethanes, carbon tetrachloride, benzene, polycyclic aromatic hydrocarbons, pesticides, phenols, as well as lead, mercury, beryllium, chromium, cadmium, uranium , thallium, and other radionuclides were below detection limit
Features:
(1)full stainless steel frame, looks luxurious and delicate. This kind of machine can be used in drinking bottled water industrial area.
(2)We can produce different productivity according to our customers' requirements, such as 1000L/h, 2000L/h...50,000L/h(liters per hour) etc.
(3)This machine can be used in food industrial area, bottled water area, beverage filling area, provide pure water for filling in food, beverage or medicine making area.
(4)source water is to be filted by quartz sand, activated carbon, pp sediment membranes(precision filter) and reverse osmosis membranes, we can use Hydranuatic brand or Dow Filmtec brand. At the same time, we can install Ultra Violet(UV) and ozone machine on the machine for killing germs, bacteria, so that keeping pure water fresh,no bacteria, so the pure water can be stored in PET bottles for a long time.
(5)We have a team of professional technicians in our after-sale service department, so we can provide prompt on line service or service at your esteem company.
B.bottled water filling capping equipment
We can provide 1000-2000B/h, 3000B/h, 3000-6000B/h 6000-9000B/h, 12000B/h bottled water production line equipments. Including washing filling capping 3-in-1 machine, shrink label sleeving machine, ink-ject printer, shrink film packing machine

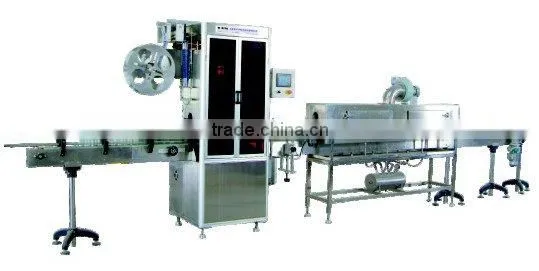

C.Shrink label sleeving machine
Including automatic steam generator and shrink oven.
C.Ink-jet printer

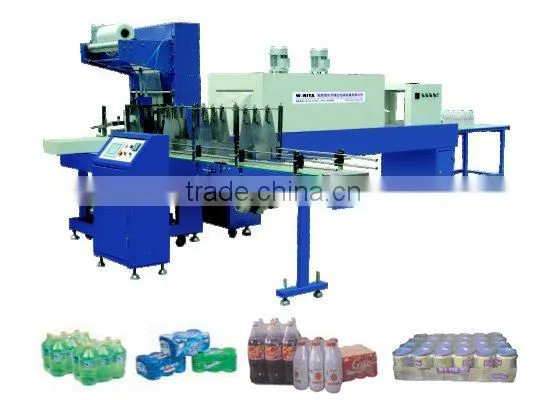

E.Shrink film packing machine
