Specifications

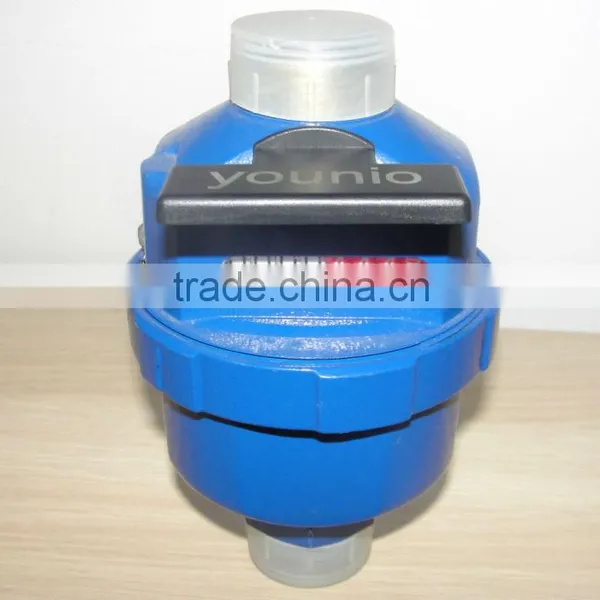

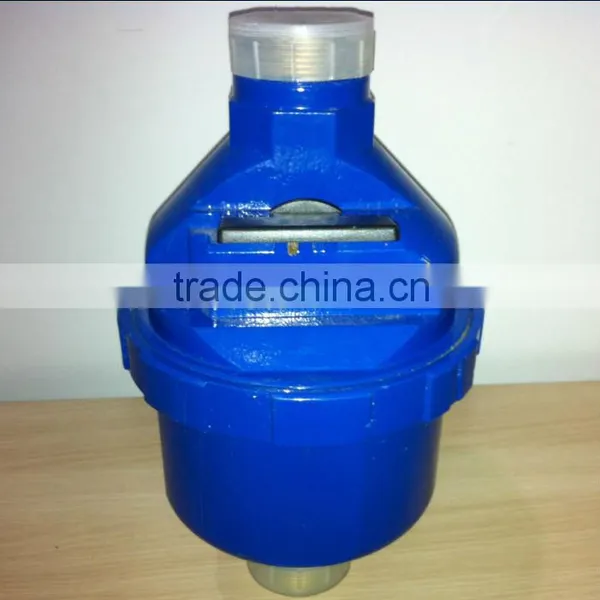

with rotary piston system,brass body,liquid sealed register,keeps clear reading for long time,high measuring accuracy,Class C.Rotary Piston Water Meter(Volumetric Meter) Type:LXH-15 Its Features as follows:
1.Rotary piston system, long service life;
2.Dry-dial or liquid sealed register, keeps clear reading for long time;
3.High measuring accuracy, the starting flow of the meter is 2 l/h or less;
4.LXH-15-20 can be installed in any position;
5.Brass body or engineering plastic body, optional;
6.m3 or gal, optional ;
7.Remote transmission device can be added upon request;
8.Many kinds of sensors, such as Reed Switch,Hall and Weagand can be supplied upon request;
9.Pulse output can be 1 liter per pulse,10 liter per pulse;
10.The meters conform to ISO4064 standard Class C or R=160.
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: YOUNIO
Model Number: LXH-15-40
ISO4064: CLASS C
Packaging&Delivery
Packaging Details: |
CARTON |
Delivery Detail: |
20-30DAYS |
Specifications
CLass C,brass body,with a pair of connectors
Features:
Rotary piston system.long service life
Dry-dial or liquid sealed register,keeps clear reading for long time°c
High measuring accuracy,the starting flow of the meter is 2 L/Pulse or less
Can be installed in any position
Brass body,m³ or gal,optional
Remote transmisson can be added upon request
Many kinds of sensors,such as Reed Switch,Hall and Weagand can be supplied upon request;
Pulse output maybe 1L/Pulse
ISO 4064 :1993 Class C
ISO 4064:2005 R160/R200

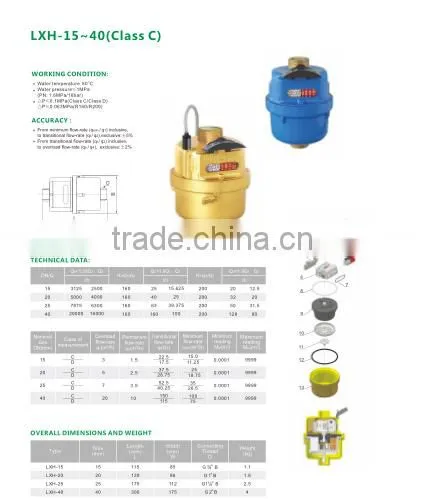

Working condition:
Water temperature 50°c
Water pressure≤1MPa
(PN:1.6MPa/16bar)
ΔP≤0.1MPa(Class C/Class D)
ΔP≤0.063MPa(R160/R200)
Accuracy:
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%
Technical Data:
| DN/Q | Q4=1.25Q3 Q3 | R=Q3/Q1 | Q2=1.6Q1 Q1 | R=Q3/Q1 | Q2=1.6Q1 Q1 |
| l/h | l/h | l/h | |||
| 20 | 5000 4000 | 160 | 40 25 | 200 | 32 20 |
| Nominal size DN9mm) | Classof measurement | Overload flow-rate qs | Permanent flow-rate qt | Transitional flow-rate qt | Minimum flow-rate qmin | Minimum reading Min | Maximum reading Max |
| 20 | C | 5 | 2.5 | 37.5 | 25 | 0.0001 | 9999 |
Overall dimensions and weight:
| Type | Size(mm) | Length(mm)L | Width(mm)W | Height(mm)H | Connecting Thread D | Weight (kg) |
| LXH-20 | 20 | 270 | 165 | 90 | G1"B | 1.8 |
Company's Advantages:
Cheast prices than any other water meter companies in China.
Our goal is to help your business buy what money can not.
Choice us is your smart,sensible and wise choice.
