Specifications

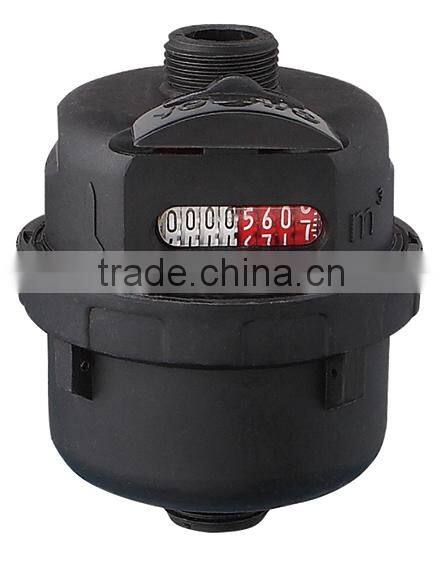

Rotary Piston water meterPlastic Vertical Volumetric Water Meter
LXH-15S
Features:
Rotary piston system, long service life;
LXH-15-20 can be installed in any position;
Brass body or engineering plastic body, optional;
m3 or gal, optional ;
Remote transmission device can be added upon request;
Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request
Pulse output may be 1l/pulse ,10l/pulse ;
The meters conform to ISO4064 standard Class C or Class D.
Operation:
A volumetric meter is the device fitted into a closed conduit, which consists of chambers of known volume and a mechanism driven by the flow, whereby these chambers are successively filled with water and then emptied.
Working condition:
Water temperature≤45.C
Water pressure≤1MPa
(PN: 1.6MPa/16bar)
P≤0.1MPa
Accuracy:
From minimum flow-rate (qmin) inclusive, to transitional flow-rate (qt), exclusive:±5%
From transitional flow-rate (qt) inclusive, to overload flow-rate (qs), exclusive:±2%
Technical data:
IN STANDARD EXPORTED CARTONS
CAN BE PACKED IN PALLETS
Cheapest prices than any other water meter companies in China ;
Our goal is to help your business buy what money can not ;
Choice us is your smart,sensible and wise choice;
OEM Service can be offered.
27/9/2011, The Water Meter Production Base of Zhejiang Younio ( Zhejiang Younio Water Supply Equipment Co., Ltd) standed alone and set up a wholly-owned subsidiary - Wenling Younio.(Wenling Younio Water Meter Co.,Ltd), whose registered capital is RMB30 million.
08/12/2011,Zhejiang Younio signed an official agreement with Jiangxi Sanchuan which state that Jiangxi Sanchuan will be controlling shareholder and bring Wenling Younio going public.
01/01/2012,Wenling Younio start to run And we are planning to be the biggest water meter export base in China within next three years.

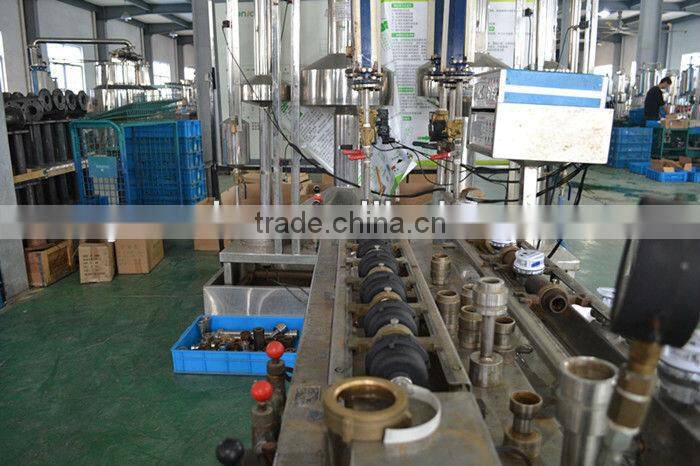

Wenling Younio. covers an area of more than 5000 square meters with a staff of more than 150,owning design and R&D center,accessories production center, whole machine production center,inspection and testing center.We are now capable of producing about 2 million pieces water meters annual.We have successively passed the certificate of ISO9001:2008 Quality System Certification, the certificate of ISO14001:2004 Environmental Management System Certification and the certificate of GB/T 28001:2001 Occupational health and safety management system certification.With a wide variety and a complete range of specifications.Our products are exported to many countries in the world such as Eastern Europe,South America,Africa and the Middle East,etc.Exports accounted for more than 85%.
