Specifications
1. ISO9000 & ISO140002. KEMA type test , IEC standards
3. Free of maintenance

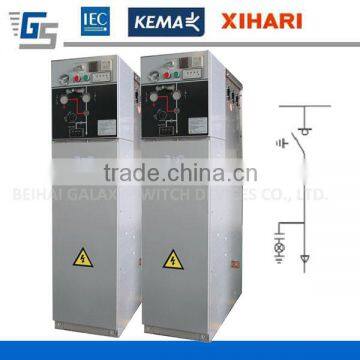

4. Load break switch panel SF6 Ring Main Unit
GLX24 series SF6 Ring Main Unit is an estensible SF6 insulated siwtchgear, with rated voltage of 12&24kV. All its HV live parts are contained in an air-tight gas tank, which is made from stainless steel of 3mm. The whole switching assembly is SF6 insulated, and free from any external influence, ensuring it great reliability of service and maintenance free. By plug-in type busbar extension,
GLX24 series RMU can be of free combination and full modularization. The busbar extension has passed type test for power and thermal stalility, and is fully insulated and shielded, exhibiting high reliability and safety.
GLX24 series Ring Main Unit is suitable for all MV network up to 24KV, all compact power stations, power distribution substations in all important industries, such as petrol-chemical industry, metallurgical and mining industries, and all transformer substations and wing power system.
Conformity with standards
GLX24 series meets the following international standards and national standards:
GB11022-1999 IEC60694:2002
GB3906-2006 IEC62271-200:2003
GB3804-2004 IEC60265-1:1997
GB1984-2003 IEC62271-100:2001
GB16926-1997 IEC62271-105:2002
GB1985-2004 IEC62271-102:2002
Load break switch panel is used for switching connection between in/out calbe and bus bar, make cable earthed, with short circuit making capacity.
Main technical Data
Description |
Unit |
12kV |
24kV |
power frequency withstand voltage(1min) phase to phase/earth |
kV |
42 |
50 |
power frequency withstand voltage(1min) across the isolating distance |
kV |
48 |
64 |
Impulse withstand voltage (phase to phase/earth) |
kV |
75 |
95 |
Impulse withstand voltage (across the isolating distance) |
kV |
85 |
110 |
Rated frequency |
Hz |
50,60 |
50,60 |
Rated current |
A |
630 |
630 |
Rated short circuit making current |
A |
50 |
50 |
Mechanical lifetime |
Ops |
5000 |
5000 |
Protection Degree |
IP4X |
IP4X |
Structure of GLX24-K unit
Standard configuration
- Busbar 630A
- Three-position load break switch
- Single spring operating mechanism with three positions, independent shaft for LBS and ES
- LBS and ES position indicator
- Cable bushing 630A, with function of sensor, fornt mounted horizontally
- Padlock on faceplate for every switch
- SF6 gauge (only one in block version)
- Earthing busbar
- Interlocks between lower fornt door and ES/operating shaft
Optional configuartion
- Extensible busbar bushing
- Electrical mechanism for LBS DC 24/48/110/220V, AC110/220V
- Short-circuit and earth fault indicator
- Loop current transformer for metering and ammeter
- Lightning arrester or double cable connector
- Auxiliary contacts
- Position of LBS 2NO+2NC
- Position of ES 1NO+1NC
- Dew controller and heater
