Help CenterGLX 24 Series 12kV Indoor SF6 Insulated Ring Main Unit (RMU), Metal Enclosed Switchgear
Related Products
-
11kV 630A SF6 Insulated Metal-enclosed Compact SwitchgearUS$ 8,000 - 30,000MOQ: 1 Unit -
12/24kV Outdoor SF6 Insulated SwitchgearUS$ 3,000 - 10,000MOQ: 1 Unit
-
GLX 24 Series 24kV High Voltage Extensible SF6 Gas Insulated Ring Main Unit(RMU), SF6 GISUS$ 3,000 - 10,000MOQ: 1 Unit
-
GLX24-M Metering Panel, Metering Unit,Panel Meter, SF6 SwitchgearNegotiableMOQ: 1 Unit
-
Cable Panel/cubicle/switchgear, SF6 Gas-insulated Ring Main Unit/rmuNegotiableMOQ: 1 Unit
Specifications
1. 12kV SF6 Insulated Ring Main Unit2. KEMA type test & IEC
3. ISO90001 &ISO14000
4. XIHARI' type test

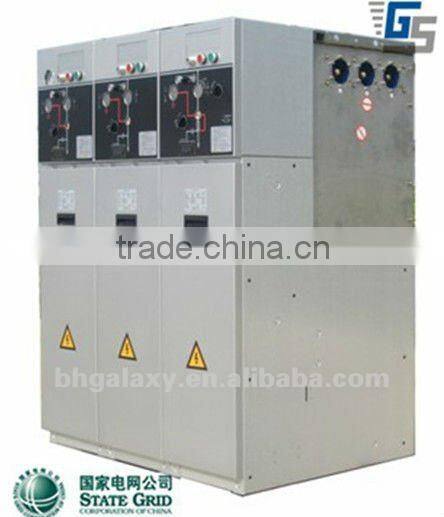

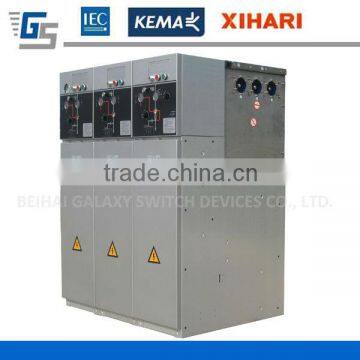

12kV SF6 Insulated Ring Main Unit
GLX24 series SF6 Ring Main Unit is an estensible, SF6 insulated siwtchgear, with rated voltage of 12&24kV. All its HV live parts are contained in an air-tight gas tank, which is made from stainless steel of 3mm. The whole switching assebly is SF6 insulated, and free from any external influence, ensuring it great reliability of service and maintenance free. By plug-in type busbar extension, GLX24 series RMU can be of free combination and full modularization. The busbar extension has passed type test for power and thermal stalility, and is fully insulated and shielded, exhibiting high reliability and safety.
GLX24 series Ring Main Unit is suitable for all MV network up to 24KV, all compact power stations, power distribution substations in all important industries, such as petrol-chemical industry, metallurgical and mining industries, and all transformer substations and wing power system.
Main Technical Data for 12kV
| Description | Unit | GLX24-K | GLX24-T | GLX24-V1/V2 | GLX24-B |
| Rated voltage | kV | 12 | 12 | 12 | 12 |
| Power frequency withstand voltage phase to phase/earth | kV | 42 | 42 | 42 | 42 |
| Power frequency withstand voltageBetween open contacts | kV | 48 | 48 | 48 | 48 |
| Impulse withstand voltage phase to phase/earth | kV | 75 | 75 | 75 | 75 |
| Rated frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated current | A | 630 | 630 | 630 | |
| Rated shorttime withstand current | kA/s | 20/3 | 20/3 | 20/3 | |
| Rated peak withstand current | kA | 50 | 50 | 50 | |
| Rated active load breaking current | A | 630 | 630 | ||
| Rated closed loop breaking current | A | 630 | 630 | ||
| Mechanical lifetime | Ops | 5000 | 5000 | 10000 | 5000 |
Structure:
1. K panel
2. T panel
3. V panel
