Specifications
1. Safe, smart, environmentally friendly2. Compact design
3. No internal arc
4. Maintenance free

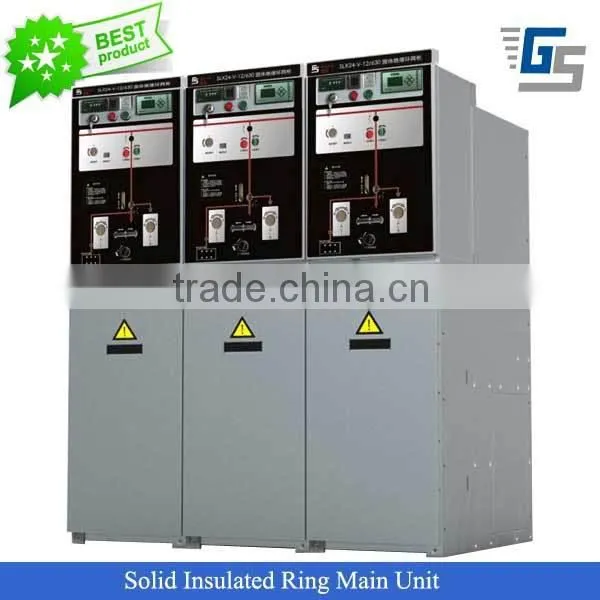

SLX24 series Solid Insulated Ring Main Unit is a kind of smart, environmentally friendly power distribution equipment developed by GALAXY SWITCH independently. It has a brand new structure, high performance under all conditions, no internal arc, compact design, safe, environmentally friendly, maintenance free, etc.
Features:
Separate-phase modular design
Outer surface of poles painted semi-conductive layer and earthed
Pressure relief port on insulating box(switching compartment)
Fully solid insulated and sealed design
Unique internal structure design
Complete application solution, free combination
Smart application
High altitude application
Technical Data
Description |
Unit |
SLX24-K |
SLX24-T |
SLX24-V |
Rated voltage |
kV |
12 |
12 |
12 |
|
Power frequency withstand voltage phase to phase/earth |
kV |
42 |
42 |
42 |
|
Power frequency withstand voltage Between open contacts |
kV |
48 |
48 |
48 |
Impulse withstand voltage phase to phase/earth |
kV |
75 |
75 |
75 |
|
Impulse withstand voltage Between open contacts |
kV |
85 |
85 |
85 |
Rated frequency |
Hz |
50 |
50 |
50 |
Rated current |
A |
630 |
630 |
|
Rated short-time withstand current (4s) |
kA |
20/25 |
20/25 |
|
Rated peak withstand current |
kA |
50/63 |
50/63 |
|
Rated active load breaking current |
A |
630 |
||
Rated closed loop breaking current |
A |
630 |
||
Mechanical lifetime |
Ops |
10000 |
10000 |
10000 |
