Help CenterCompact Substation SF6 RMU and Outdoor Enclosure
Related Products
-
SF6 Gas Insulated Switchgear SF6 GISUS$ 2,500 - 10,000MOQ: 1 Unit -
Medium Voltage SF6 Insulated Ring Main UnitUS$ 2,500 - 10,000MOQ: 1 Unit
-
Solid Insulated Ring Main Unit, RMUUS$ 4,000 - 10,000MOQ: 1 Unit
-
Drive Mechanism and Gas Tank for SF6 Insulated Ring Main UnitUS$ 1,000 - 6,000MOQ: 1 Unit
-
Busbar Subsection Panel. Medium Voltage SF6 Insulated Electrical Switchgear, RMUUS$ 1,000 - 3,000MOQ: 1 Unit
Specifications

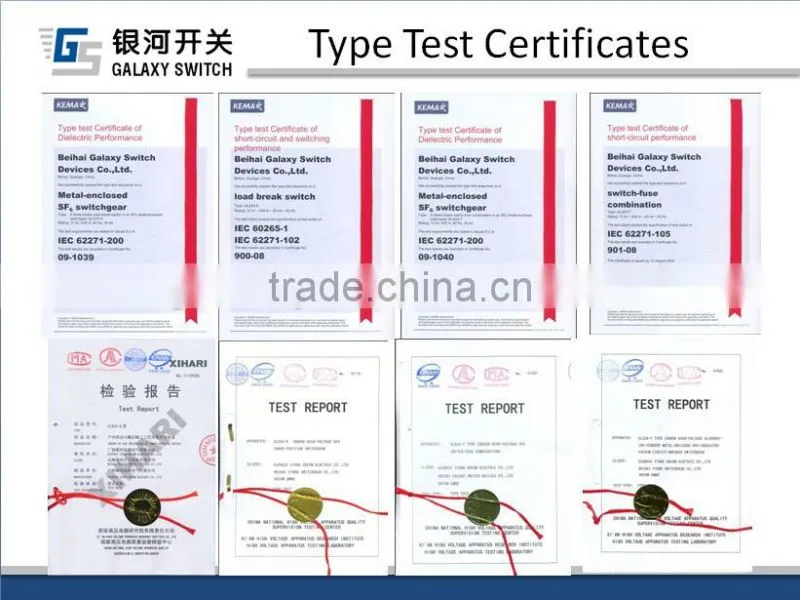

1. Modular and compact design2. KEMA type test & IEC standards
3. ISO90001 & ISO14000
4. SF6 RMU & outdoor enclosure
GLX24 series SF6 Ring Main Unit is an estensible, SF6 insulated siwtchgear, with rated voltage of 12&24kV. All its HV live parts are contained in an air-tight gas tank, which is made from stainless steel of 3mm. The whole switching assebly is SF6 insulated, and free from any external influence, ensuring it great reliability of service and maintenance free. By plug-in type busbar extension, GLX24 series RMU can be of free combination and full modularization. The busbar extension has passed type test for power and thermal stalility, and is fully insulated and shielded, exhibiting high reliability and safety.
GLX24 series Ring Main Unit is suitable for all MV network up to 24KV, all compact power stations, power distribution substations in all important industries, such as petrol-chemical industry, metallurgical and mining industries, and all transformer substations and wing power system.
Conformity with standards
GLX24 series meets the following international standards and national standards:
GB11022-1999 IEC60694:2002
GB3906-2006 IEC62271-200:2003
GB3804-2004 IEC60265-1:1997
GB1984-2003 IEC62271-100:2001
GB16926-1997 IEC62271-105:2002
GB1985-2004 IEC62271-102:2002

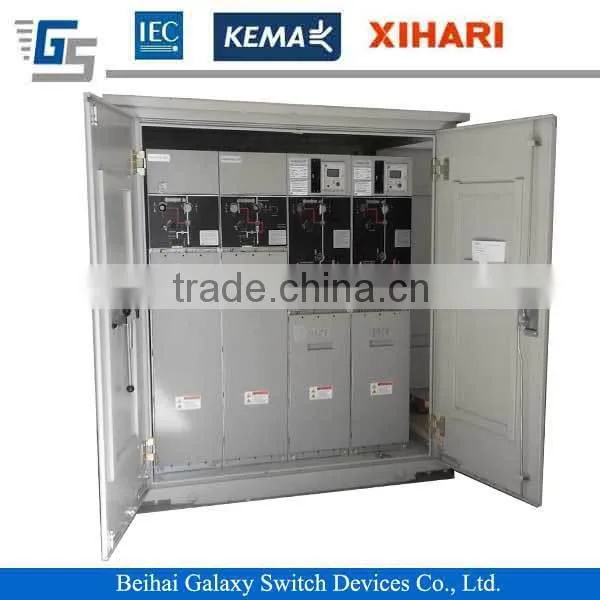

For outdoor application, SF6 Ring Main Unit can be installed in outdoor enclosure to make up a compact substation.

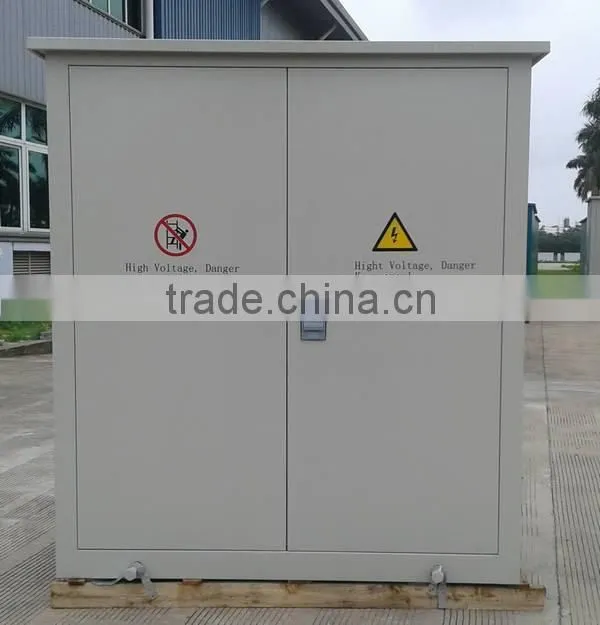

Outdoor enclosure (IP33 or IP54)
