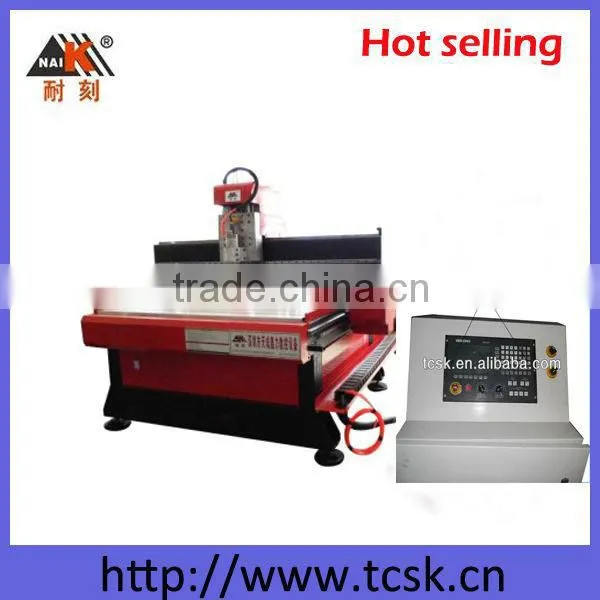

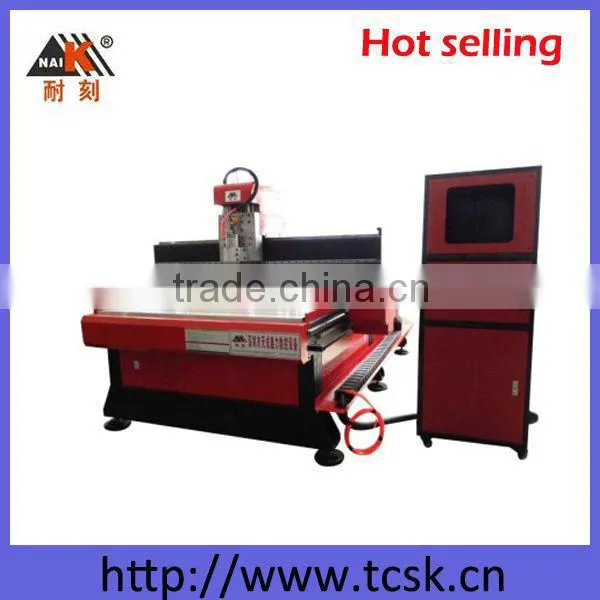

High Accuracy CNC Doors Engraving Machine
Technical parameter
Model No |
4STC-1325HN |
Table Size |
1380mm×2900mm |
Effective Working Area |
1300mm×2500mm |
Z Axis Travelling |
180mm |
Feeding Height |
200mm |
Body Frame/Structure |
Steel |
Table Configuration |
VAC-sorb table |
Adsorption Method |
Vacuum Pump |
X,Y Transmission Configuration |
Rack Gear Dual Z Axis(Independent Movement Control) |
Z Transmission Configuration |
Screw (Taiwan PMI 25 Screw) |
Rail Configuration |
20 Square Guide (Taiwan Hiwin) |
Positioning Accuracy |
±0.15/300mm |
Spindle Rotating Speed |
0-24000(rmp/min) |
Y Axis Motor |
Dorna Servo Motor(Double Motor) |
X,Y,Z Axis Motor |
Dorna Servo Motor |
Movement Control |
Shanghai NCSTUDIO Control System(6B) |
Carving Instruction |
G code*,U00*,mmg*,nc |
Resolution |
0.00625/pulse |
Collet |
3.175mm,4mm,6mm,8mm,10mm,12.7mm |

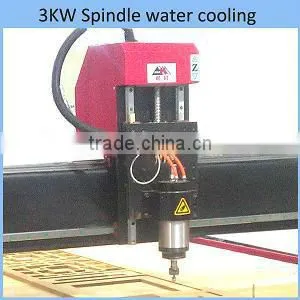

Spindle Power |
3.0kw water cooling motor(4.5,5.5KW for your choice) |
Power |
380v50HZ±10(Internal Switch Power) |
Movement Pattern |
Gantry Moving |

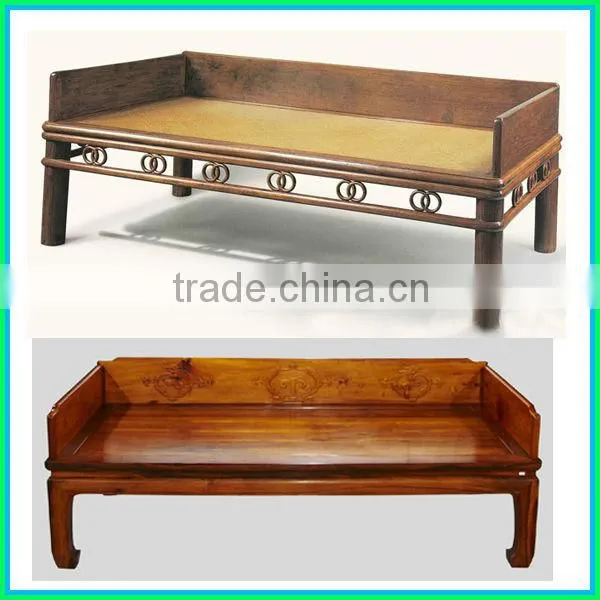

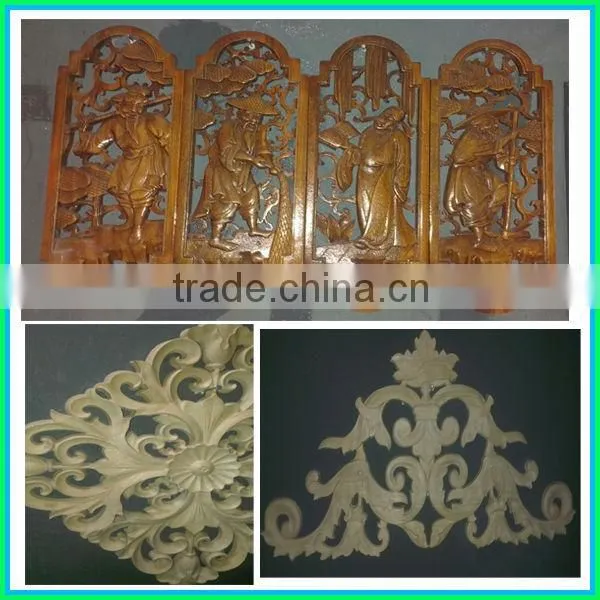

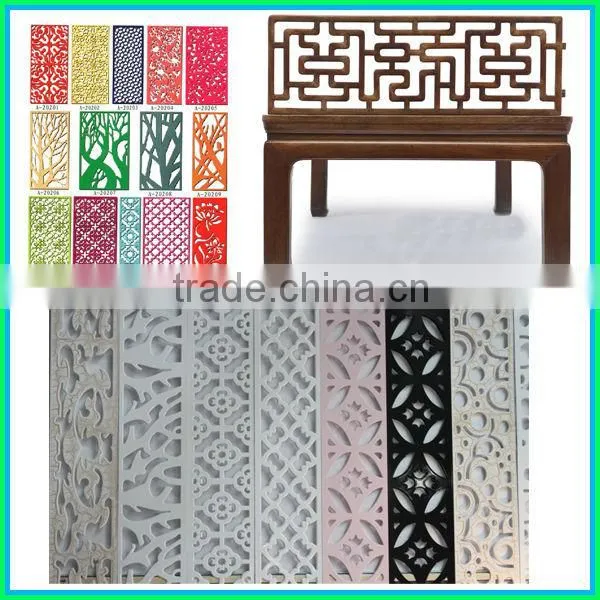

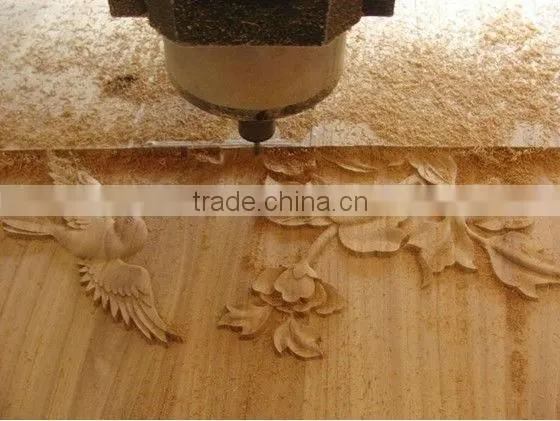

CNC Carving Machine Sample Showing
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.
Our Service
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided

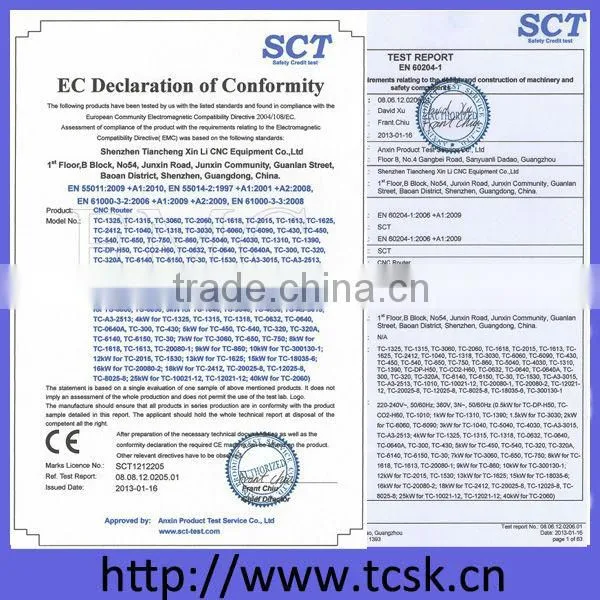

5.Meet CE,FDA,ISO9001 standards
