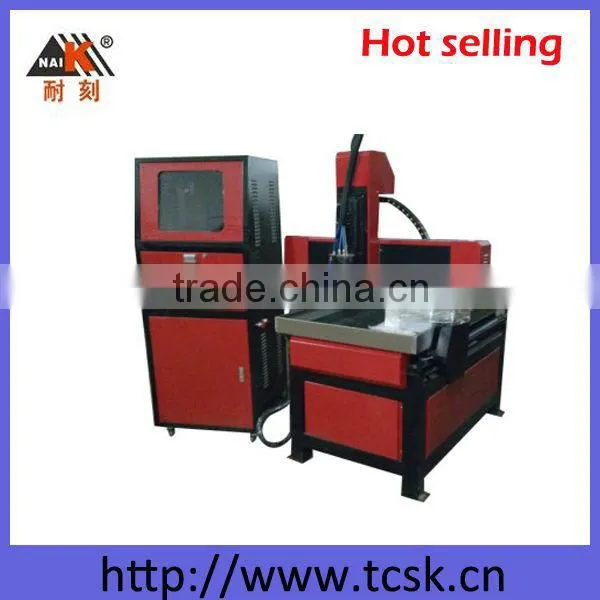

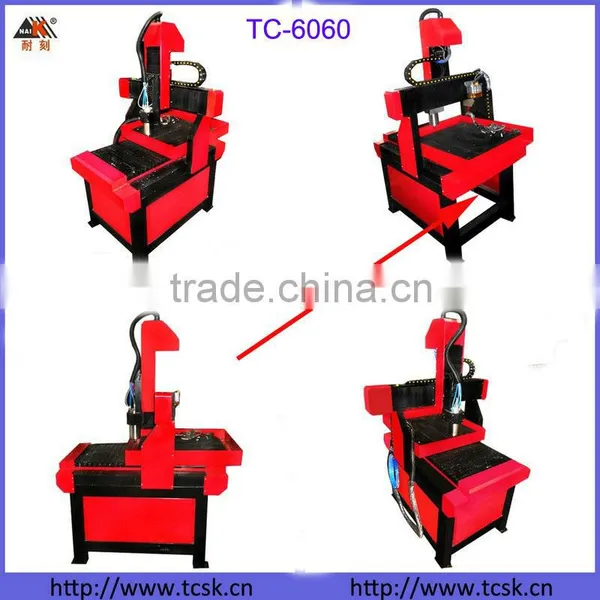

Large working erea marble cnc router (TC-6060C)
.
Specification
Model No |
TC-6090C |
Table Size |
650mm×1100mm |
Effective Engraving Size |
600mm×900mm |
Z Axis Travelling |
130mm |
Feeding Height |
250mm |
Body Frame/Structure |
T-Steel(Steel structure 8mm Steel Pine) |
Table Material |
Thickness Aluminum |
Portal Side Wall Configuration |
Cast Iron |
Z Axis Movement Hardware Configuration |
Cast Aluminum |
Transmission Configuration |
Rack Gear(Germany Slanting Rack) |
Rail Configuration |
Ball screw transmiss |
Z Axis Screw |
Taiwai HIWIN 25 Screw C4 Grade,Double nut |
Positioning Accuracy |
±0.03/300mm |
Spindle Rotating Speed |
0-24000(rmp/min) |
Processing Speed |
0-30000mm/min |
X Axis Motor Drive |
Leadshine Stepper Motor |
Y Axis Motor Drive |
Leadshine Stepper Motor (Dual Drive Double Motor) |
Z Axis Motor Drive |
Leadshine Stepper Motor |
Movement Control |
NCstudio Control System |
Carving Instruction |
G Code*,U00*,mmg*,nc |
Resolution |
0.0025/Pulse |
Collet |
3.175mm,4mm,6mm,8mm, 12.7mm |
Spindle Rotating Power |
1.5KW Bearing Water Cooling Motor |
Conventor |
Best,Independent conventor |
Power |
220V/380v50HZ±10(Internal Switch Power) |
Weight |
Appro300KGS |
Electric Box Configuration |
Computer capinet |
Movement Method |
Gantry Moving |
What can we do?
Application Materials

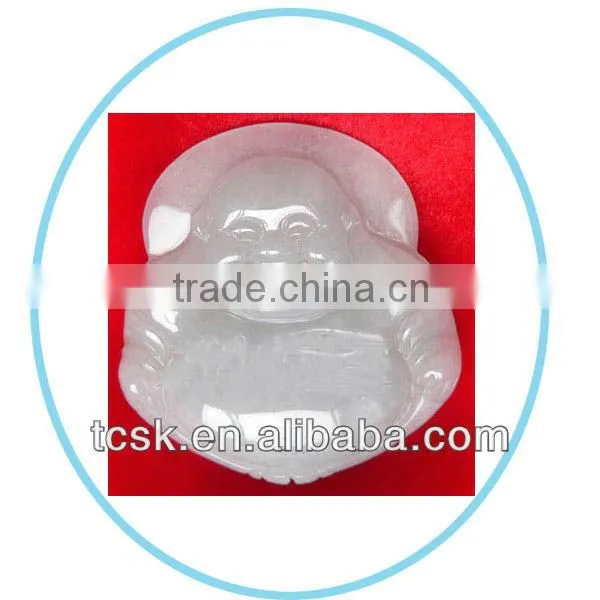

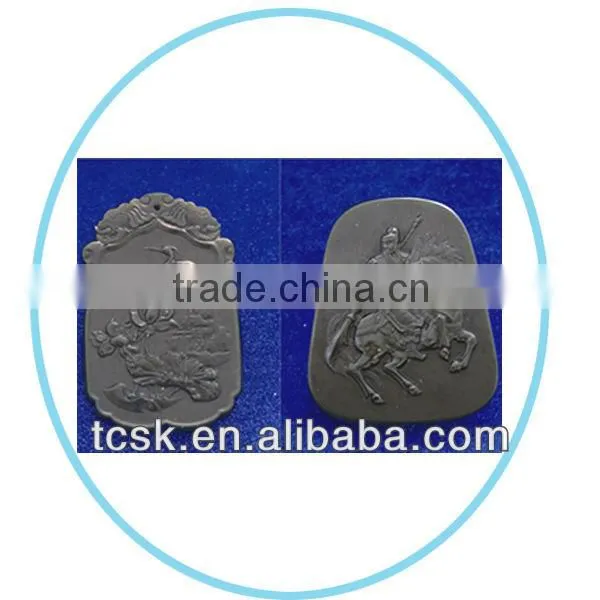

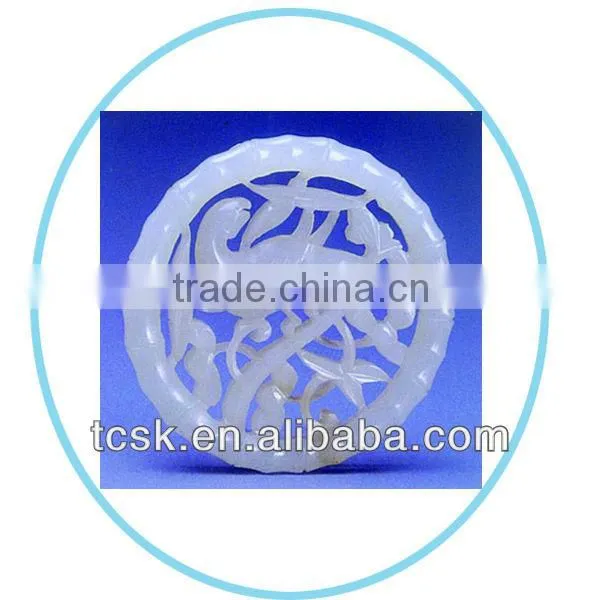

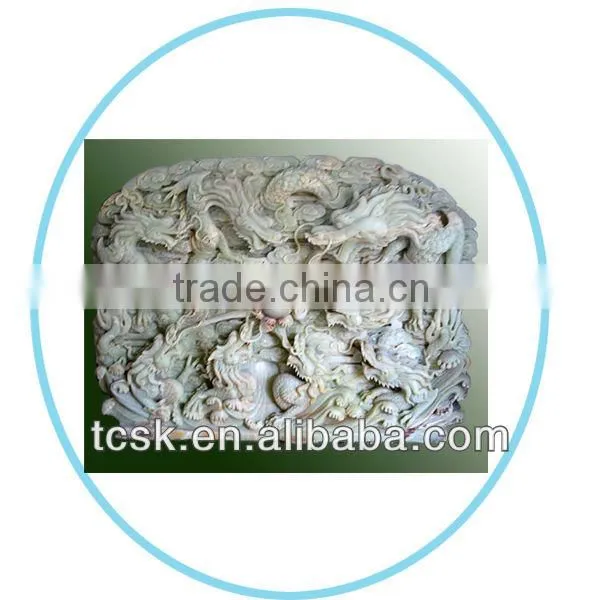

Suitable for natural marble, granite, bluestone, sandstone, artificial stone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium alloy, can doing 3D embossment, and line engraving, beveling, drilling 2D engraving.
Application Industries
Suitable for Furniture Industry, Mould Industry, Craft Industry, Stone processing factories, Furnace (fireplace) making, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries,etc.
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Why choose us
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided
5.Meet CE,FDA,ISO9001 standards
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc. Platform material
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact me !
