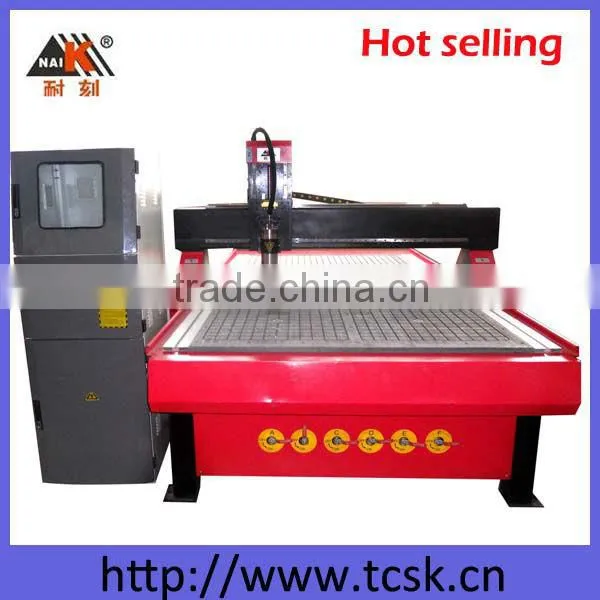

Plywood CNC Router/Engraver with Vacuum Bed

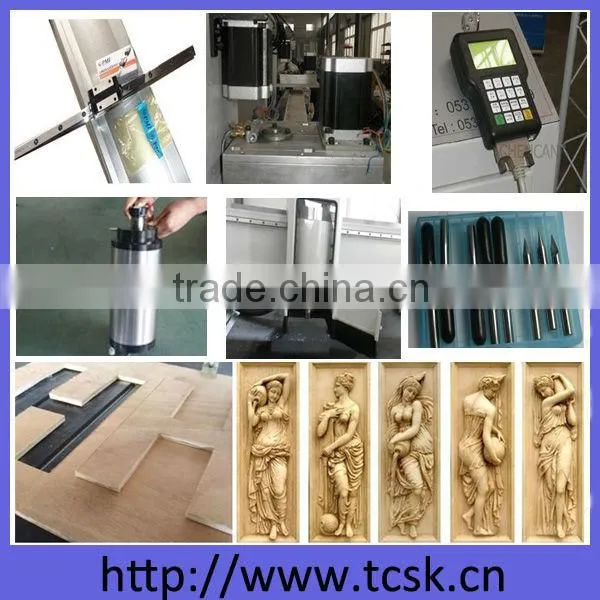

Feature
1 . Original Ncstudio system , easy to learn and convenient to operate
2 . Imported Taiwan Hiwin linear guide rail and Taiwan PMI 25 Screw
3 . German Slanting Rear
4 . Big torque stepper motor/Servo motor
Product parameter
Model: |
4STC-1325HD |
Guideway: |
XYZ-axis use liner guideway |
Driving mode : |
XY-axis use rack and Z-axis use Linear Square screw |
XY-axis working area : |
1500*2900mm |
Table Size |
1380*2700mm |
Z-axis working area: |
180 mm |
Feeding height: |
200 mm |
Spindle Speed: |
0-24000mm/min |
Processing speed : |
30000mm/min |
Mechanical precision: |
±0.1mm/300mm |
Compatible Software: |
Type 3 software , Artcut software , Artcam software |
Spindle Power consumption: |
3.0KW with Water Colling Motor(Optional) |
Power source: |
AC220V/50HZ or 380V/50HZ |
Driver type: |
Stepper motor |
Memory: |
Without or DSP |
Spindle: |
3.0KW variable speed , water-cooled motor |
Blade diameter: |
3.175mm, 4mm, 6mm, 12mm or 12.7mm |
Control system: |
NCSTUDIO or DSP(USB interface) |
Command: |
G code , u00, mmg, plt, HPGL |
Running circumstance temperature: |
0-45degree |
Relative humidity: |
30%-75% |
Widely Application
1 .Furniture industry : solid wood furniture , wooden door , cabinet
2 . Wooden products processing : wooden speaker , wooden clock , sports equipent
3 . Musical instrument : 3D surface engraving and shape cutting .
4 . Artware making : photo frame , jewelry box
5 . Electrical industry : circuit board , insulation material , LED disply screen
Suitable Materials
PMMA,PVC Sheet, ABS sheet, KT sheet, Timber ,Gemstone, Marble ,Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc.
Products Samples Showing
Technical support
1,Once our business term is down,buyer can send your technical staff to learn related technology of CNC Router in our factory for free.
2,Or we can send our engineer to buyers’ country for technical support,but the buyer should be responsible for the return ticket for them.
Other special requests,pls mention us.
Keypoint
Please kindly tell us your engraving or cutting materials, and materials’ size.
Then we can quickly check and recommend to you the right machine with right working area.
More related CNC Cutting/Engraving Machine samples pics and vedio will provide you if you would like to know much more about it.
