Shenzhen naiK 1325 hot-sell wood working cnc router machine with good price:
Suitable for:
Mainly used in furniture ,door .surface processing of complex industrial products(e,g, embossed ,debossed,cutting,chamfer,3D processing|
Feature:
1. Straight row ATC 8 tool turret and fast tool change,accu rate tool setting,heavy body,best rigidity ,no distortion ,no shake, the machined surface is smooth ,and the tool is not easy to break;
2.Original Guide rail from HinWin Taiwan,workable have strong affordability and it is wear-resistant, with high-power spindle. large cutting area and the bearing is not easy to wear;
3.System adopt PC interface.which is more intutive,more faster,and more stable;
4.Transmission of three axis adopt Taiwan planetary reducer, which is more faster,more powerful and more stable;
5.System uses the original computer operating system,easy to operate. with high speed ,strong stability; all motor adopts imported high-precision and high-speed servo motor;
6.All axis adopt Germany slanting which is rigid. durable , wear-resistant.All axis with Anti-dust cover"
7.Have strong body endurance.

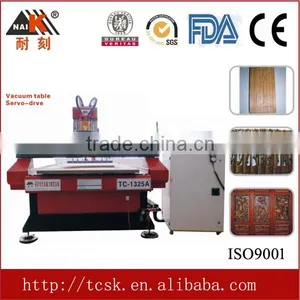

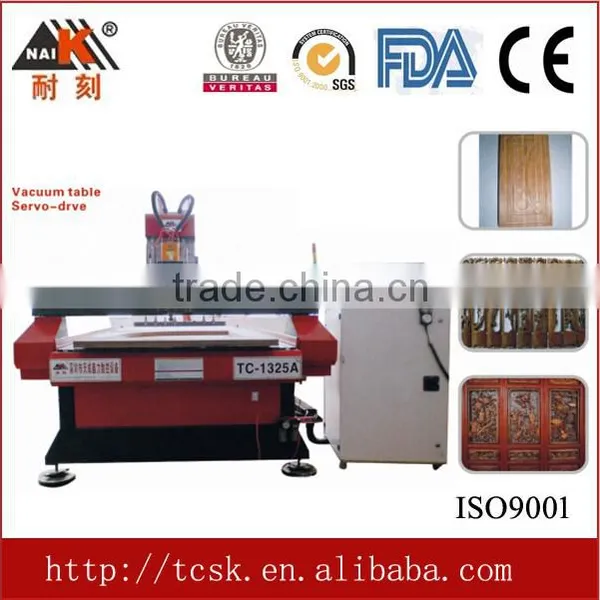

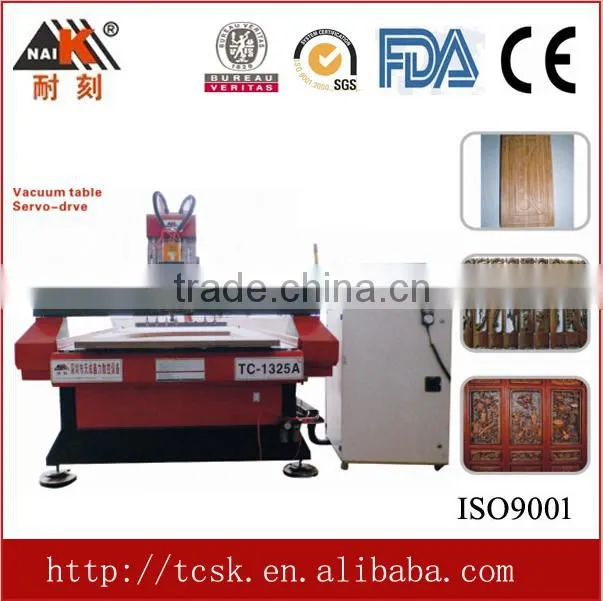

1. picture of Hot-sell wood working cnc router machine e
| Specifications option of the machine | ||||||
| Model N | 12STC-1325A ATC |
|||||
| Platform Size | 1380* 2900 mm | |||||
| Working range | 1300* 2500 mm | |||||
| Z axis travel | 180mm | |||||
| Max height of material | 200mm | |||||
| Machine base | 8mm thick heavy-duty tubular steel frame, Full-welded,VSR processed | |||||
| Z-axis clevis | U-shaped cast aluminum,machined by CNC center | |||||
| Sidewall of Y axis | Cast Iron machined by CNC center | |||||
| Fuselage | 8mm Steel machined by CNC center | |||||
| Sheet metal for X axis Drag Chain | Cast Aluminum machined by CNC center | |||||
| The Beam | 8mm Steel machined by CNC center | |||||
| Frame | 6mm Steel machined by CNC center | |||||
| Sheet metal | 2mm baking Paint | |||||
| Cutting bed | 3mm*5mm(sidewalls)*24mm,Thickened aluminum | |||||
| Fixing method | 5.5 kw Vaccum table | |||||
| X Y Axis Transmission | Germany Slanting rack | |||||
| Z-axis Transmission | Taiwan HIWIN 25 ball screw | |||||
| Rail configuration | Taiwan HIWIN 25 square Linear guide rail | |||||
| Positioning accuracy | ±0.15/300 mm | |||||
| Spindle speed | 0-24000 r/min | |||||
| Y Axis dual Drive | Japan Yaskawa Servo-driven | |||||
| X Z Axis Drive motor | Japan Yaskawa Servo-driven | |||||
| Control system | Taiwan new generation 6MA | |||||
| Code formats | G code, U00, mmg, nc | |||||
| Idle speed | 0-20000 mm/ min | |||||
| working speed | 0-15000 mm/ min | |||||
| Resolution | 0.00625/ pluse | |||||
| Tool diameter | 3.175/ 4.0/ 6.0/ 8.0/ 10.0/ 12.7mm optional | |||||
| Spindle power | 5.5kw water cooling ATC | |||||
| Cooling System | Water cooling | |||||
| Power | 380V50Hz/60Hz (Internal power) | |||||
| Mode of motion | Gantry moving | |||||
Electric Box |
Normal Electric Box | |||||
| Compatible software | CAD,CAM softwares such as MasterCAM/ Type3/ JDPaint/ ArtCAM/ Proe/ WenTai, etc | |||||
| Weight | 2700KGS | |||||

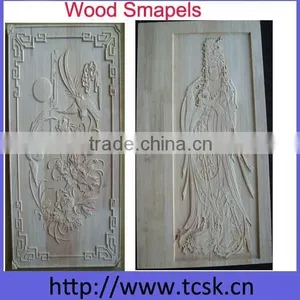

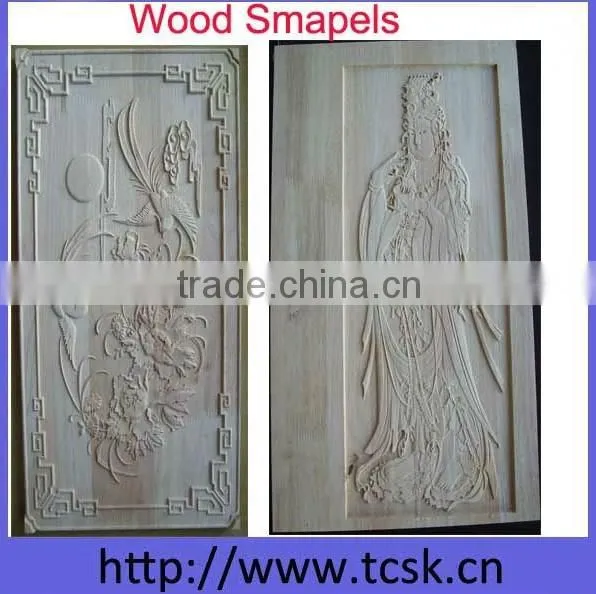

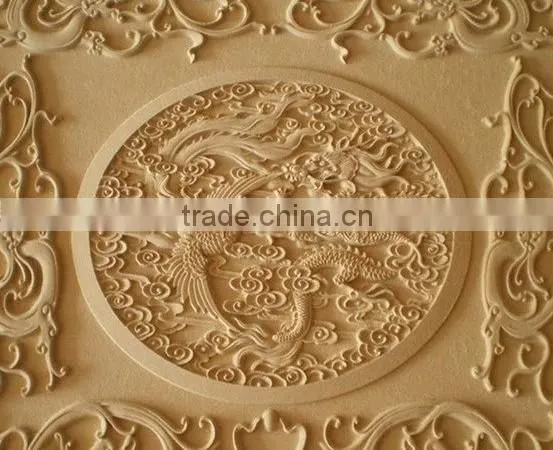

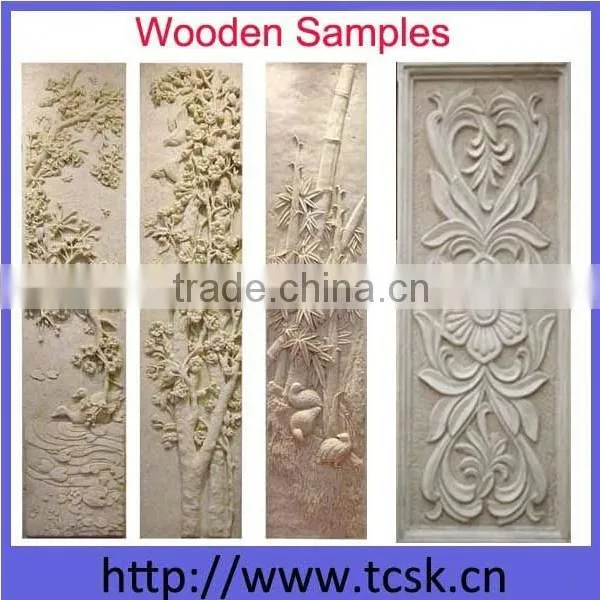

2 Pictures of the samples of Hot-sell wood working cnc router machine
3.Our factory
We are Professional CNC Router Manufacturer and with thedevelopment of our factory , we are sincerely seeking for GlobalExclusive Agent.
4.Pictures of our products
We have many kinds of cnc router machines,if you are finding machines please contact with us,we will try our best to find the most suitable machine for you.

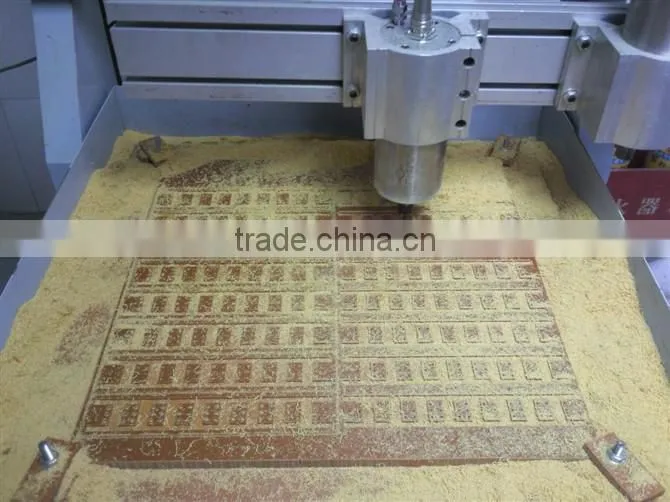

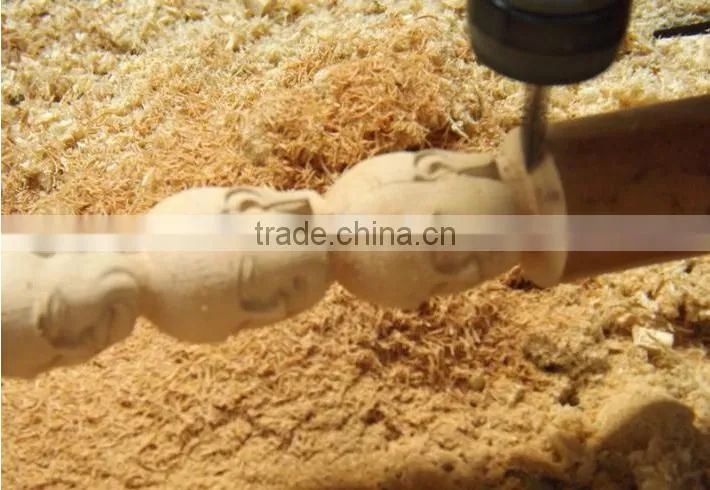

5. Hot-sell wood working cnc router machine for engraving wood details with pictures:
Optional parts:
1.The working range can be customized as per your requests;
2.The sturcture: can be Heavy-duty Tubular steel frame Or Lighter steel frame;
3.The table: can be T-slot Aluminum table Or Vacuum table for Maximun Fixturing Flexibility;
4. Spindle: the power of spindle can be 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/ 7.5KW/ 9KW, etc;
5. Drive Motor: can be Stepper Motor Or Servo Motor;
6. ATC(Automatic Tool Changing): Can be with Or without, Linear Or Hat shaped;
7. Control system: NcStudio with DSP Or computer cabinet;
8. Water cooling pipe: with Or without;
9. Rotary axis for 3D working: with Or without;
6.Our team
We will focus on your demand,providingyou with advise and information to help you grow!
7. deliver goods
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more
pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70%
against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank
handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment term
8.Certificate -CE /FDA/BV and so on
9.Our Service to you:
1. One year equipment warranty and maintenance for lifetime
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements
4.Free training and sample provided
