Alcatel Lucent Bell I-240E-Q(S) ONU FTTH ONT GPON ONU 4GE/FE+2 POTS Alcatel I-040E I-240E I-120E-Q

Original & Brandnew Packaging

Alcatel Lucent Bell I-240E-Q(S)   ONT ONU GPON EPON Alcatel  I-040E  I-240E I-120E-Q

Features

GPON features

Class B+ optical module.

Security authentication mode: SN, password or SN+password.

Upstream/downstream FEC.

Voice features

SIP and H.248 protocols.

Media stream and signaling stream separation.

Multicast features

IGMP V2&V3 snooping/IGMP proxy.

Wi-Fi features

802.11b/g/n, certified by the Wi-Fi Alliance.

CATV feature

Remotely CATV port enabling/disabling and remotely query of the CATV port status.

Routing features

NAT function.

Internet, IPTV and VoIP services are automatically bound to ONT ports.

Virtual server, port trigger, DMZ, and DDNS.

Maintenance features

Local management using Web and remote management using TR069 and OMCI.

Optical power monitoring.

802.1ag Ethernet OAM.

Loop-line test of POTS ports, call emulation and PPPoE dialup emulation.

Reliability features

Dual systems for software protection.

Type B protection and rogue ONT detection.

Lithium battery backup and backup battery monitoring.

Greenengery-saving features

Dynamic power consumption adjustment.

With a backup battery, the guaranteed services can be selected flexibly.

Specifications

Dimensions(W x D x H)268 mm × 213 mm × 34 mm

Port:4POTS + 4GE + 1USB + 1CATV + 1Wi-Fi

Average power consumption13.5 W

Operating environmentTemperature: 0°C~+40°C;

Humidity: 5%–95%, non-condensing

Power supplyAdapter input: 100–240 V AC, 50–60Hz;

Adapter output: 11–14 V DC, 2 A

WeightAbout 800g (including the power adapter)

Deployment Scenarios

Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.

Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.

Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.

High speed forwarding: GE line rate forwarding in the bridge scenario and 900 Mbit/s

forwarding in the NAT scenario.

Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules.

About the Distribution:

As a golden distributor of HUAWEI, all of HUAWEI prodcucts from Polytrade/Sandes Technology are 100 % Original and  Brandnew  unless per clients’ requests; customers could claim 10time cost if you find we  offer used or fake products.  We offer one year warranty for all on-display products.

The HUAWEI products by us are whole series of hot-sell products, and if you did not find what you need on  alibaba web,  please contact us via sales[at] to gain supports.

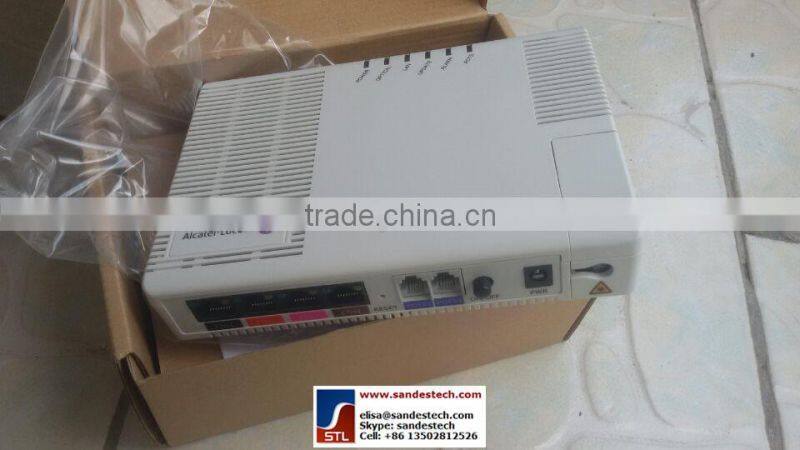

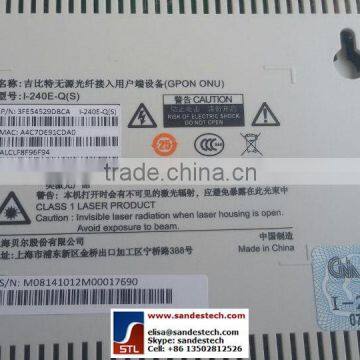

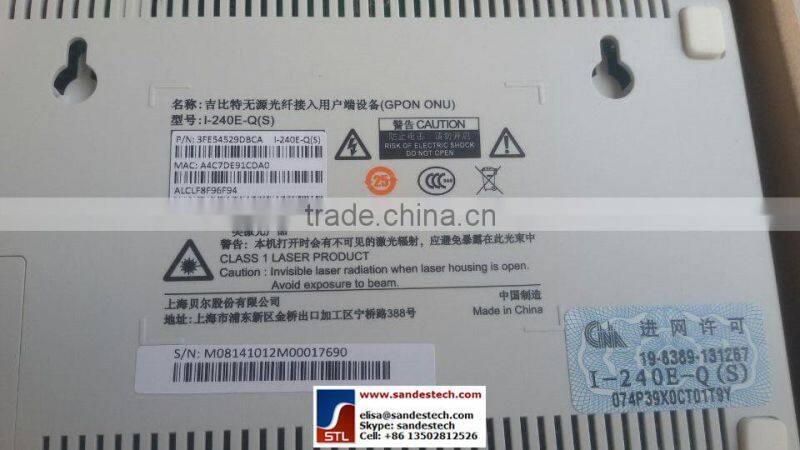

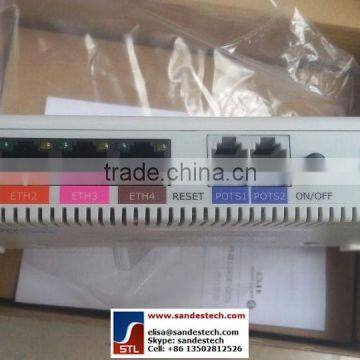

Products Photos:
