Jw-1000 type good quality full automatic egg tray making machine price Quality Choice
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card PayPal
- Best quality factory price jumbo roll paper machine
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- N Fold Hand Paper Towel Dispenser Packaging Machinery Manufacturer
- Automatic paper recycling machine for produce craft paper from www.frdpapermachine.com
- Durable and sturdy spiral paper tube machine
- Durable and sturdy corner protectors
Product Details
Condition: | New | Product Type: | Egg Tray Machine | Processing Type: | Pulp Molding Machine |
Place of Origin: | Henan, China | Brand Name: | Jiewei | Model Number: | JW-1500 |
Voltage: | 380v | Power(W): | 3 kw | Dimension(L*W*H): | 3.3m*2.2m*2.5m |
Weight: | 4.5T | Certification: | Other, ISO9001 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Good quality hot sale 1500 pcs per hour egg tray making machine price
Contact person :
Ms. Grace
Mobile:0086-13526659141
Skype :gracemachine
Trade manager :cn1510749015
QQ:1215410583
Advantage of egg tray making machine price
The used paper Egg Tray Machine is controlled by PLC, the degree of the automation is high, and it is easy to learn and use, service is convenient. Also the scope of the machine is widely. It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing. The equipment is best-selling nation and is sold abroad.
The raw material is the waste paper, the scrapes from color printing plants and waste paper boxes. The raw materials are free pollution, can be recycled. and easy to find.The chemical materials of the products are the same as the paper. The equipment performance is stable.
Feactures of egg tray making machine price
1. Raw material: used newsprint, waste cartons and mixed waste paper.
2. Type: Rotary forming.
3. Control method: fully automatic controlled by PLC(international famous brand).
4. Dryer type: fashionable Multilayer dryer.
5. Target product: egg trays, fruit trays, cup holders.
6. Output: 3000-6000pcs/hour of egg trays.
7. Power: 3KW.
8. Labor: 5-7 workers/shift
Fuel:electric or Liquefied petroleum gas or other fuel
egg tray making machine price product line:
Our used paper Egg Tray Machine price product line has four parts:paper Pulping system,forming system,drying line and packing system.
Paper Pulp Making System :
Paper Pulp Making System is mainly comprised of hydrapulpter, pulp pump, multi-function refiner machine, blender, control cabinert,ect.
Worker pour the waste paper and water into the hydrapulper,when the hydrapulper crush the paper into pulp then will flow into the pulp pool ,at same time workers feed some water into the pulp pool.The paper pulp will be processed by the pulp refiner machine when the proportion is ok then can run the forming machine.
Specification of egg tray making machine price
forming system | Molding machine | Description | Type and specifications | Quantity/Unit | kw | Remark | |
Molding machine | PT-1500 | 1Set | 2.2kw |
| |||
forming mould | 30 pcs egg | 4 pcs |
| Normal type | |||
Moving mould | 4pcs | ||||||
Electromagnetic valve | 2w-20 220v | 2pcs |
|
| |||
Electromagnetic valve | 2w-20 220v | 2pcs |
|
| |||
Two position five way | 80*250 | 1pcs |
|
| |||
50*100 | 1pcs | ||||||
Butterfly valve | DN-100 | 1pcs |
|
| |||
Control cabinet | 30*25 | 1pcs |
|
| |||
Globe valve | DN15 | 2pcs |
|
| |||
Rubber hose | 1inch | 3meter |
|
| |||
Proximity switch | LJ18A3-8-J/EZ | 2pcs |
|
| |||
Proximity switch | JLXK1-111 | 2pcs |
|
| |||
Vacuum system | Vacuum pump | Zbk-15 | 1set | 11kw
|
| ||
Vacuum piping | 90# | 1.5meter |
|
| |||
Vacuum piping | 165# | 6meter |
|
| |||
Air compressor+High pressure pipe | 1³ | 1set | 7.5kw |
| |||
Mold cleaning machine | 38type | 1set | 1.1kw |
| |||
|
|
|
|
| |||
|
|
|
|
|
| ||
Pulping system | Hydraulic pulper | pulper | SL1.0 | 1set | 7.5kw |
| |
Butterfly valve | DN100 | 1pcs |
|
| |||
|
|
|
|
| |||
Pulp pump
| 3inch | 1set | 2.2kw |
| |||
Pulp pond beater | 110r/m
| 2set | 1.5kw×2 |
| |||
waste Water pumps |
| 1set | 0.75kw |
| |||
Pulp conveying pipe |
| 1set |
|
| |||
Drying system | The conveyor belt driving | 1.8*175 | 5pcs |
|
| ||
Drive system |
| 1set | 3kw |
| |||
Conveyer | 1550*100 | 1set |
|
| |||
Fan | 80 | 2set | 5.5kw×2 |
| |||
Wind tunnel | 120 | 2pcs |
|
| |||
Support rollers | 2m | 80pcs |
|
| |||
lron plate | 1×2m | 34pcs |
|
| |||
Grate | 636 | 60pcs |
|
| |||
Joist steel | 1.5m-12 | 8pcs |
|
| |||
1m-12 | 8pcs |
|
| ||||
Gas tank | 0.89 | 1pcs |
|
| |||
High pressure pipe | 8mm | 50m |
|
| |||
Prefabricated parts | 0.8~0.12 | 12pcs |
|
| |||
Thermometer | 0~300° | 1pcs |
|
| |||
Link pipe | 140 | 6m |
|
|

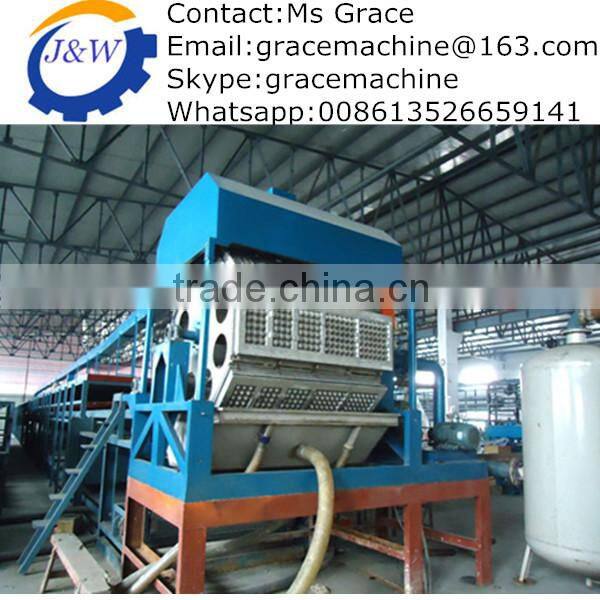

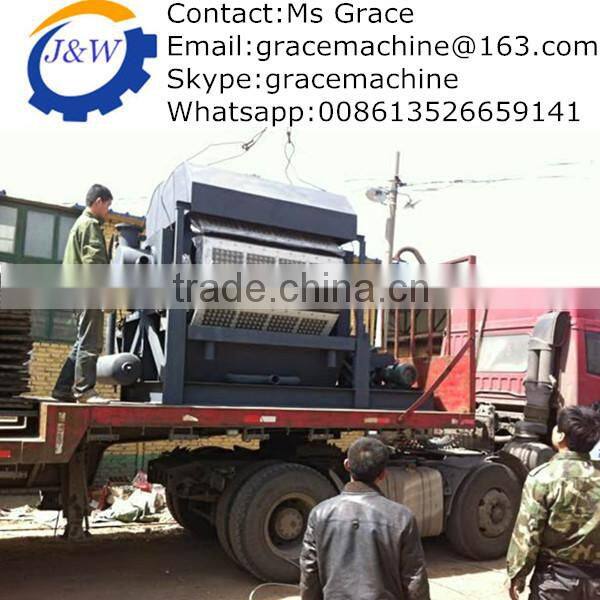

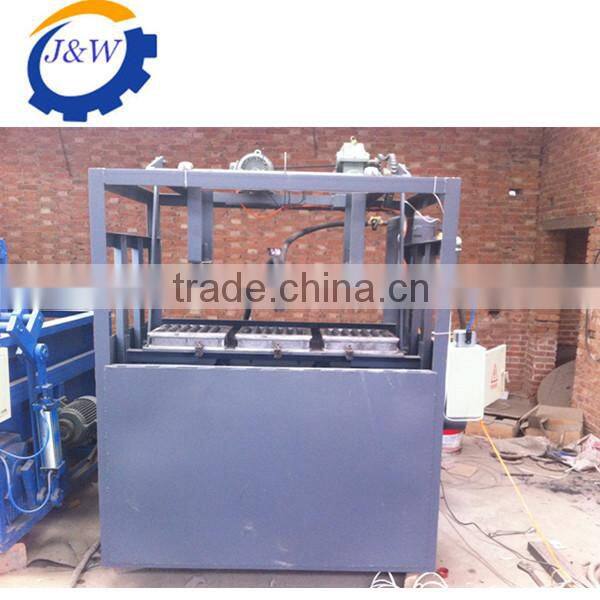

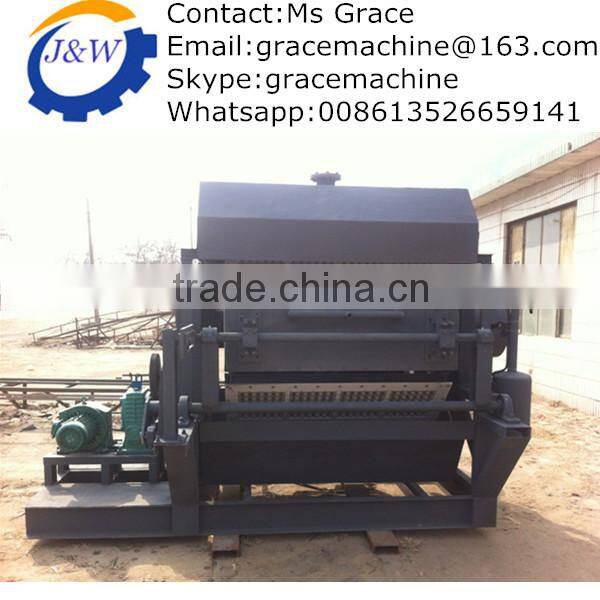

Show pictures of egg tray making machine price

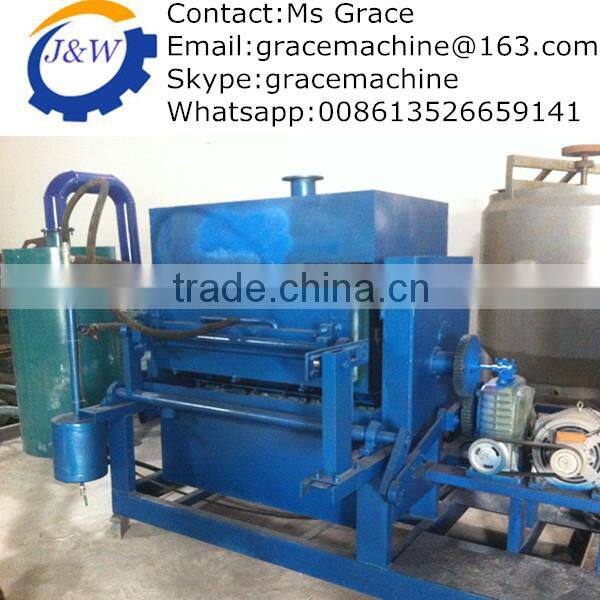

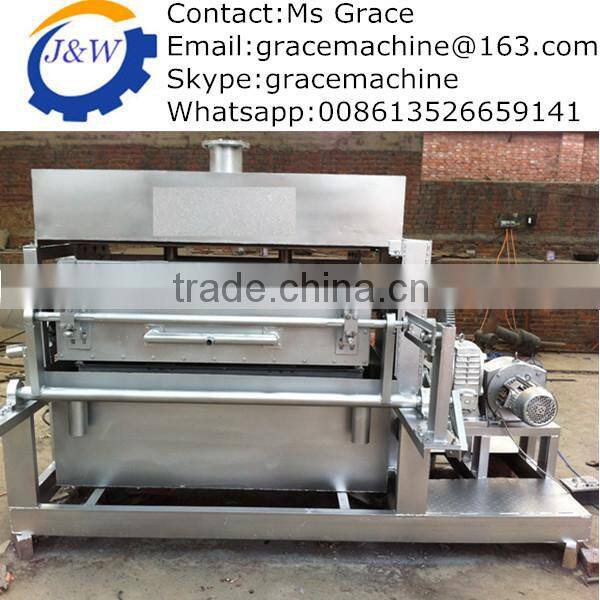

1000 pcs/h egg tray machine:

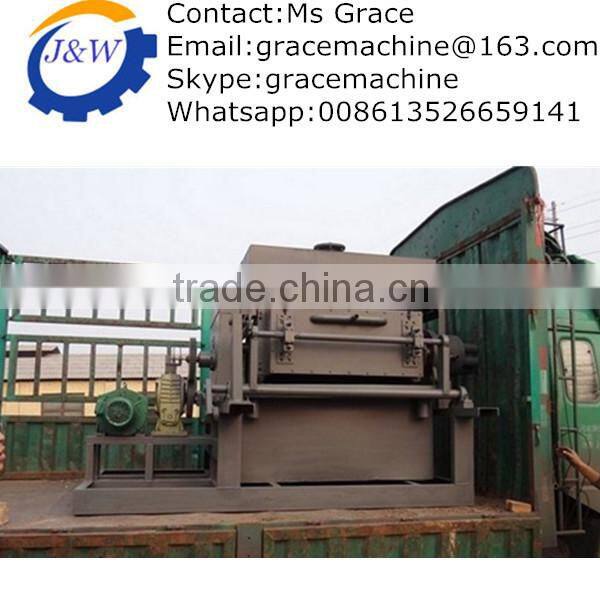

1500 pcs/h egg tray machine:
2000 pcs/h egg tray machine:
2500 pcs/h egg tray machine:
3000 pcs/h egg tray machine:

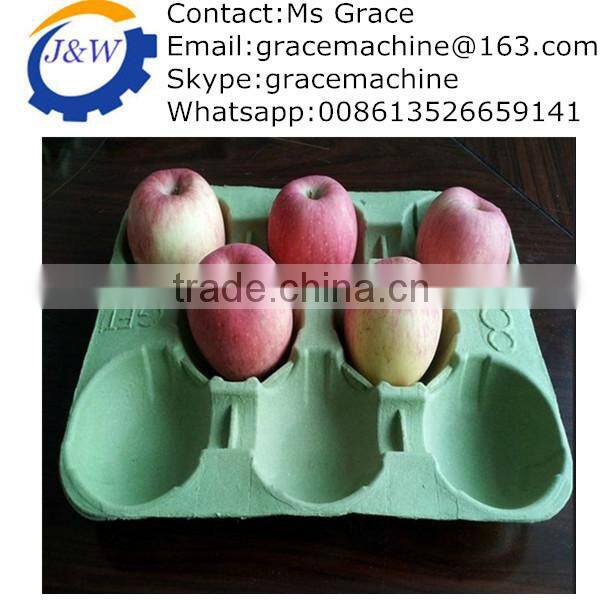

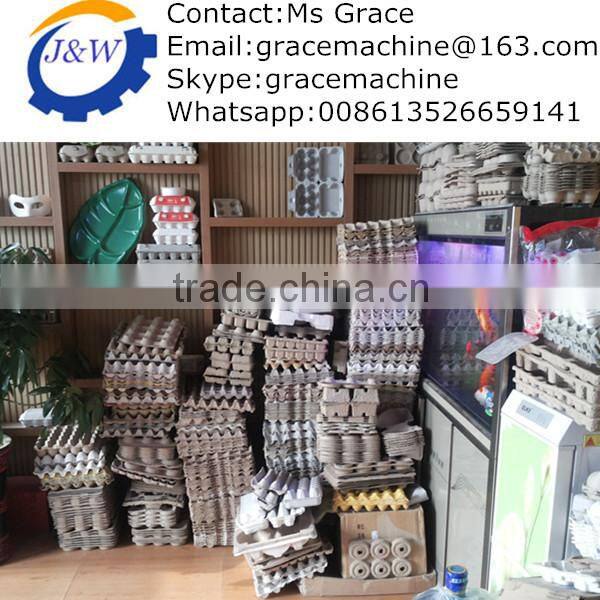

Final picture of egg tray making machine price

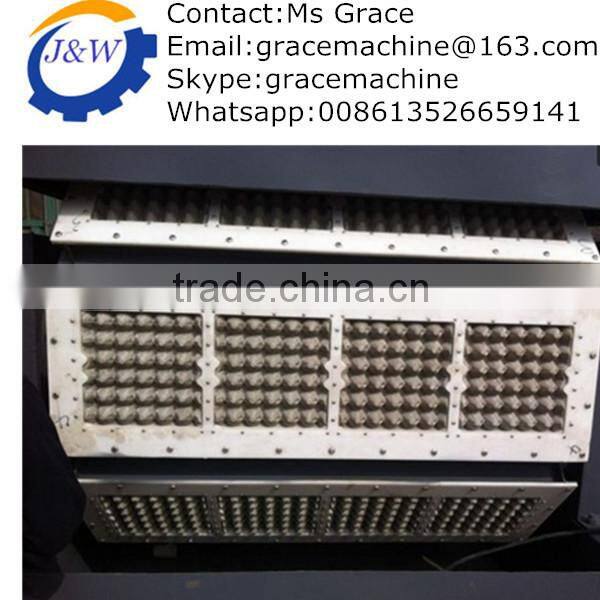

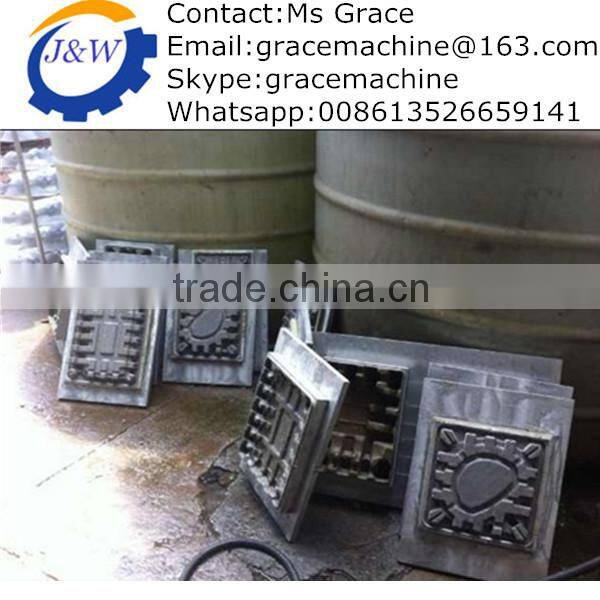

Modl of egg tray making machine price
