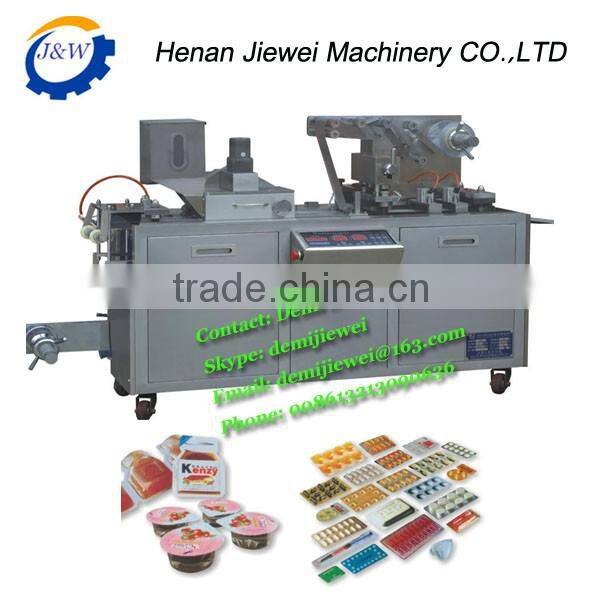

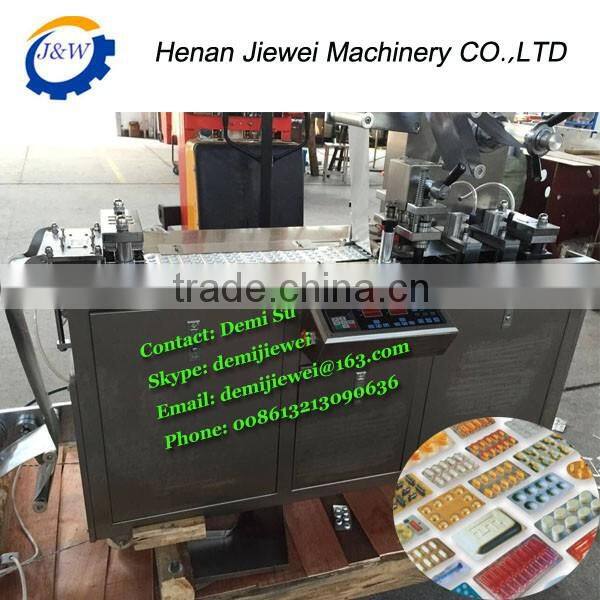

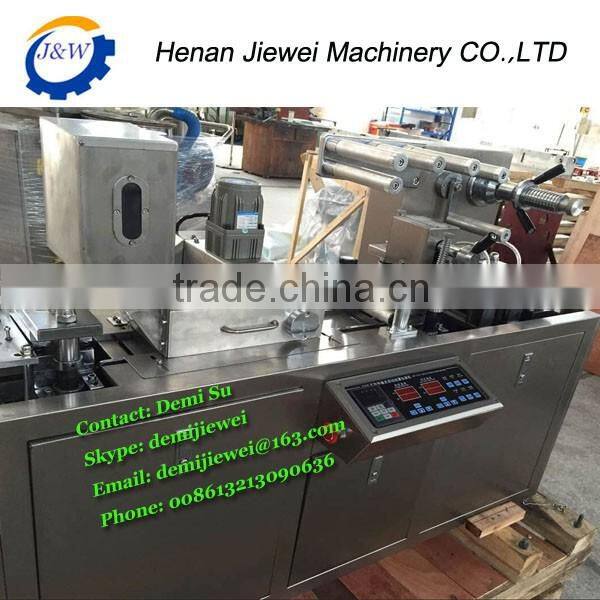

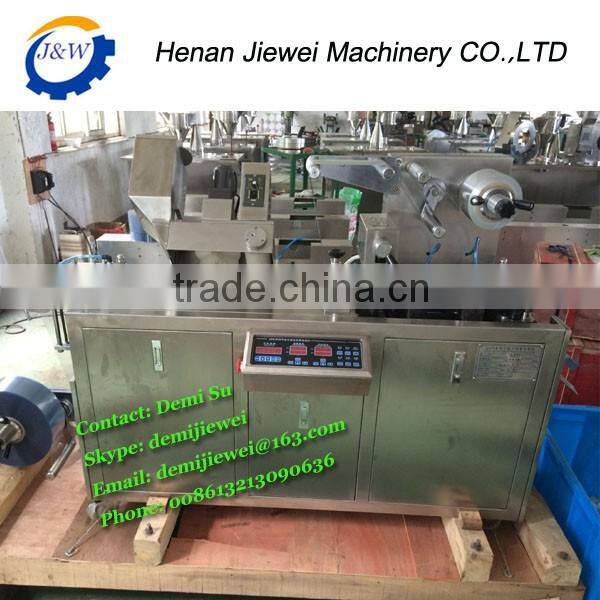

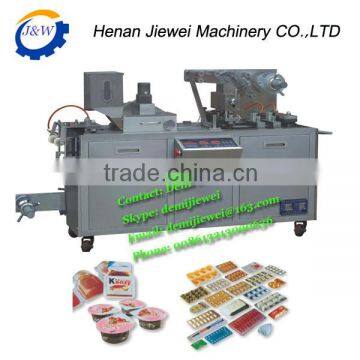

DPB-80 Small ALU PVC Blister Packing Machine
The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.
Characteristic:

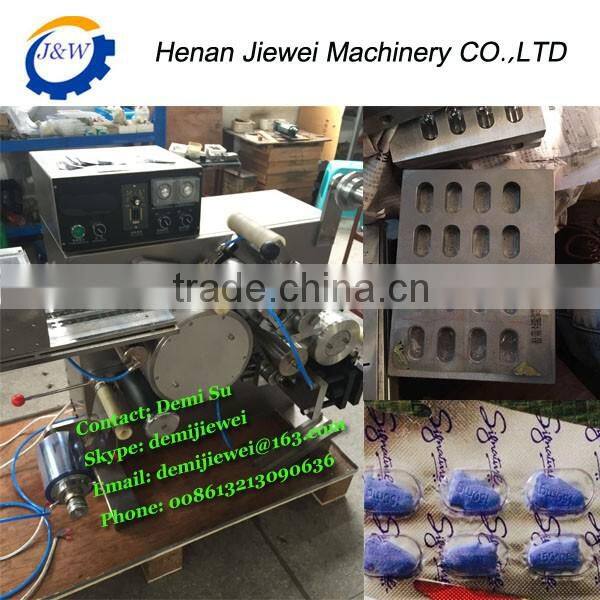

1. The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
2. Travel scope can be adjusted. Mould is located by located groove so that it’s easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
3. The equipment of trace pressing, batch number printing and scrap-collecting can be chose.
4. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
5. Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.

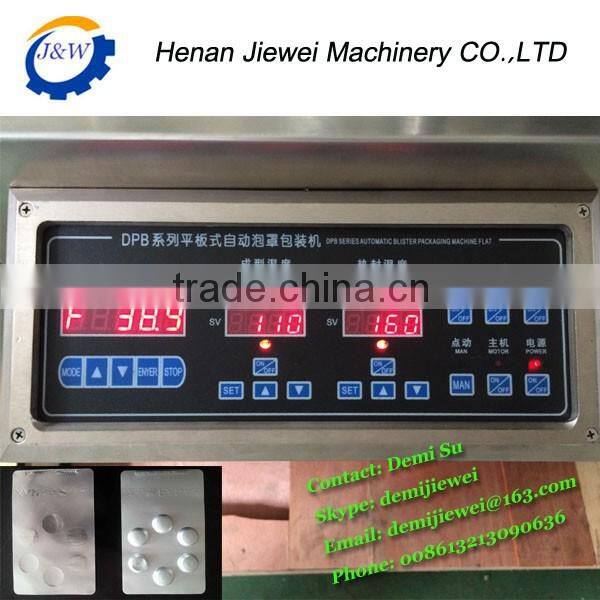

6. Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).
| Model | DPB-80 |
Cutting Frequency (times/min) |
8-35 |
Capacity(strip/h) |
600-2100 |
Max shaping areas and depth (mm) |
100×60×15 |
Stroke (mm) |
20-70 |
Standard Sheet (mm) |
80×57 |
Air Pressure (Mpa) |
0.4-0.6 |
Total power |
380V/220V 50Hz/60Hz 1.8kw |
main motor power |
0.55 |
PVC hard pieces (mm) |
0.15-0.5×80 |
PTP Aluminum Foil (mm) |
0.02-0.035×80 |
Dialysis Paper (mm) |
50-100g×80 |
Overall Dimensions (mm) |
1560×460×890 |
Weight (kg) |
380 |
