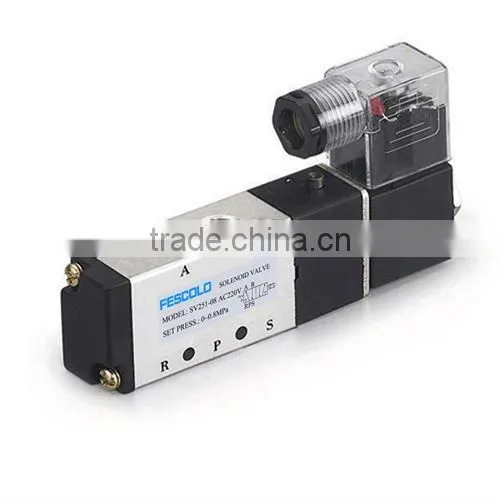

Pneumatic 5 ways Air Solenoid Valve

Media

Compressed air

Applicable pressure range

0.15~0.85Mpa

Proof pressure

1.2Mpa

Ambient and fluid temperature

-5~60°C

Material of body

Aluminum alloy

Standard voltage

DC12V,DC24V,AC24V,AC110V,AC220V,AC380V

Power consumption

AC220V

2.0W

DC12V,AC110V,AC380V

2.5W

DC24V

3.0W

AC24V

3.5W

Allowable voltage range

-15%~10%

IP rate

IP65

Insulation rate

Class F

Action

Internally piloted

Min. activate time

0.05 s

Lubrication

Needless

Ordering code

Valve type

Port size

Max. frequency

SV231-08

2 positions / 3 ports

G1/4

5 cycles/s

SV231-10

G3/8

SV251-06

2 positions / 5 ports

G1/8

SV252-06

G1/8

SV251-08

G1/4

SV252-08

G1/4

SV251-10

G3/8

SV252-10

G3/8

SV251-15

G1/2

3 cycles/s

SV252-15

G1/2

SV351-06

3 positions / 5 ports

G1/8

SV352-06

G1/8

SV351-08

G1/4

SV352-08

G1/4

SV351-10

G3/8

SV352-10

G3/8

SV351-15

G1/2

SV352-15

G1/2
