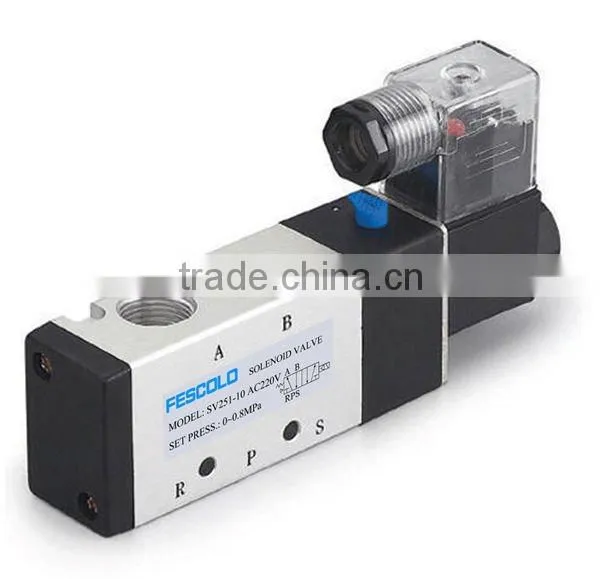

Help CenterSV251-08 Solenoid Air Valve
Related Products
Specifications
1.Air valve solenoid2.Medium pressure air valve
Normaly closed, Direct acting
Medium Temperature ,alloy body
CE ,NBR seal
Air valve solenoid
1.Air valve solenoid
2.Medium pressure air valve
Normaly closed, Direct acting
Medium Temperature ,alloy body
CE ,NBR seal
1) For medium pressure air ,normaly close ,direct action .Normal temperature .
2) Temperature: -5~+180°C
3) Air pressure: 0.15-0.8MPa
4) solenoid Voltage: DC 24V/DC12V or AC 24V/110V/220V/380V (50/60/Hz)
NBR seal .
Media |
Compressed air |
|
Applicable pressure range |
0.15~0.85Mpa |
|
Proof pressure |
1.2Mpa |
|
Ambient and fluid temperature |
-5~60°C |
|
Valve Material of body |
Aluminum alloy |
|
Standard voltage |
DC12V,DC24V,AC24V,AC110V,AC220V,AC380V |
|
Solenoid Power consumption |
AC220V |
2.0W |
DC12V,AC110V,AC380V |
2.5W |
|
DC24V |
3.0W |
|
AC24V |
3.5W |
|
Allowable voltage range |
-15%~10% |
|
IP rate |
IP65 |
|
Insulation rate |
Class F |
|
Action |
Internally piloted |
|
Min. activate time |
0.05 s |
|
Lubrication |
Needless |
|
