Specifications
CNC Cutting Machine Electrode Brass wire1.Type:Soft or hard
2.Wire guage:0.20mm
3.Cu:65% ; CuZn35

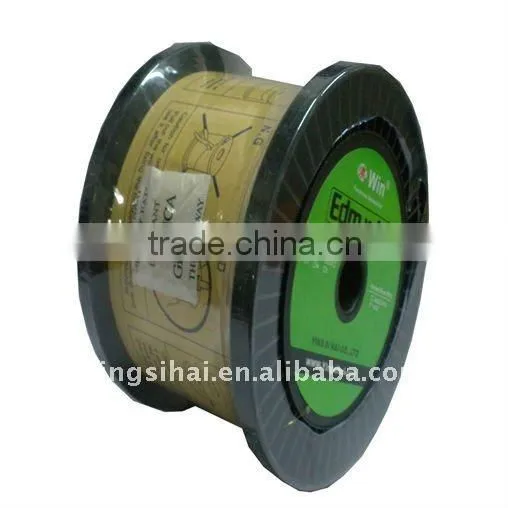

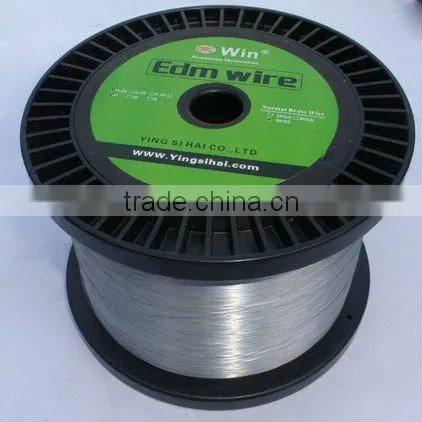

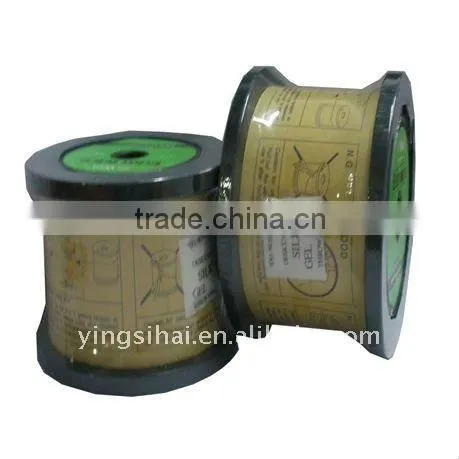

WSS020 EDM Brass wire 0.20mm
1.Type:Soft Brass wire
2.Wire guage: 0.20mm
3.Cu(mix):65% ; CuZn35&CuZn37
4.Alloy or not:alloy
5.Ultimate strength(Mpa):440-520
6.Conductivity:25%
7.Talarance: +/-0.001mm
8.Grade:first
9.Fitting machines:Sodick,Fanuc,Charmiller,Mitsubishi
10.Packing:4 spools in a carton box
11.MOQ:1 box (20Kg)
Feature of edm wire:
.High strength:Quality raw material and multi-element copper alloy selected ;Advanced facilities ,experience techiques ,24 hours continuous pre-furnace trace testing .
.High precision:Advanced testing instrument,entire manufacturing techniques combining the latest fully automtic wire-stretching machines,complete guarantees precision 1000N/m2 strength,diameter tolerance within +/-0.001mm.
.Strict inspection and testing systems:Quality control systems with advanced chemical analyzers and physical inspection,testing facilities to ensure stability of chemical composition and optimized tensile strength,excllent surface,overall product quality.
Reasonable price :Never stop to improve our produce process and innovate new techniques to reduce produce cost,
so we can offer reasonable and competitive price to keep and atract our clients.
.Excellent service :With warm heart patiance to provide the best before-sales and after-sales vervice.
Main technology standard of H65T Copper Electrode Wires
| P/N | Type |
Standard Diameter (mm) |
Tolarance (mm) |
Tensile Strength |
Breaking Load (Kgf) |
Conductivity (%) |
| WSH010 | Hard | 0.100 | +/-0.001 | 980-1180 | 7.70-9.20 | 22min |
| WSH015 | 0.150 | 17.4-20.0 | ||||
| WSH020 | 0.200 | 30.5-37.0 | ||||
| WSH025 | 0.250 | 48.1-57.5 | ||||
| WSH030 | 0.300 | 885-1080 | 62.6-76.3 | |||
| WSS010 | Soft | 0.100 | +/-0.001 | 440-520 | 3.40-4.12 | 25min |
| WSS015 | 0.150 | 7.75-9.22 | ||||
| WSS020 | 0.200 | 13.8-16.3 | ||||
| WSS025 | 0.250 | 21.1-25.5 | ||||
| WSS030 | 0.300 | 31.2-36.7 |
Our business range
. EDM brass wire
. EDM filter
.EDM resin
.EDM Rust Remover
.EDM Consumables
wire guide,power feed contact,rollers,water nozzle,belt,discharge cable,etc.
.EDM drilling tool
Full range EDM accessories solution!
Company profile
We are EDM consumable parts manufacturer that employs innovative technology to manufacture EDM water filter, wires and other nonrepairables such as wire guide, power feed contact, pinch roller etc. Our product ranges are widely used in Charmilles, Mitsubishi, Sodick, Fanuc, Makino, Chmer, Seibu, Brother etc. Molding design, tooling manufacturing and high accuracy machining technology are applied to provide our customers with complementary precision motion control elements. And we walk with you during each step from forming your needs to meeting your needs...
We offer across-the-aboard introduction, material selection and trail order test for approval to meet your unmatched need and to reduce cost. We draw on our experience in the manufacture uncounted filters and brass wires plus repeatability and consistent quality are ensured throughout each production run. The results are quantifiable. Our record is clear.
As a big EDM supplier & wholesales that offers a full inventory of mold accessories.We offer our sustomers the opportunity to cut purchasing costs by providing needed key products from a single vendor.We are continually develop new ,high quality products to meet the conditions of clients need.
We would like to thank our customers for the continued support . We are going ot offer better service for the years to come.
