of Full Care and Trust,
based on"customer-oriented
and employee-oriented"
management idea.
largest engineering
machinery manufact
urersand in China.
of military industry
experience and
technology.
a series of high value-added
products, such as rotary drilling
rig, longspiral drill rig,
crawler cranes, dynamic
compactor, and mining dump
truck, etc.
covering foundation construction,
resources exploitation,
environmental protection
and other fields.

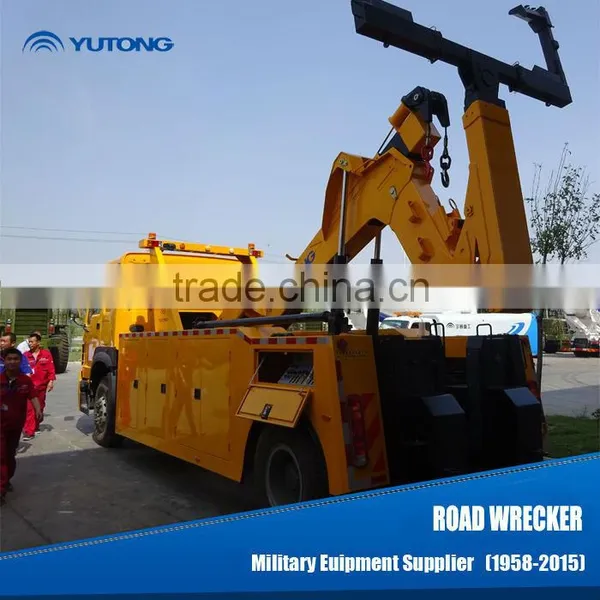

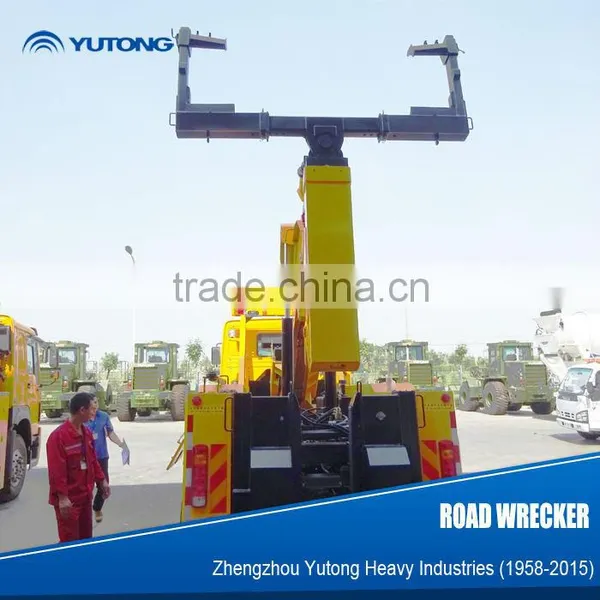

The lifting mass is up to 5.5 tons under full extension state and the largest lifting length is up to 2.56m, which is able to fully meet the pulling and traction requirements of large/medium-sized cargo truck.
2. The maximum hoisting mass of the suspension arm is up to 16 tons
The maximum hoisting height is up to 6 meters, equipped with two sets of 15-tons planetary gear hydraulic winch, and the single rope tension is up to 80KN, which is able to satisfy the requirements of long-distance dragging and short-distance righting for large/medium-sized accident trucks.
The working mechanism adopts the structural form of conjoined suspension arm and corbel, fully hydraulic drive, equipped with a variety of sizes and forms of forks. Thus, it is furnished with dragging, suspending, pulling and many other features, available for a wide range of applications.
4. The key components of the hydraulic system are made of imported components
The multi-way reversing valve, balance valve, sealing elements, etc., of the hydraulic system are made of imported components, characterized by stable quality, and able to ensure safety and reliable operation of the vehicle.
Major technical parameters of YTZ5197TQZ40EN
Overall dimension of complete vehicle (mm) |
10475×2500×3290 |
Wheelbase (mm) |
5825+1350 |
Wheel track of front wheel (mm) |
2022 |
Wheel track of rear wheel (mm) |
1830 |
Maximum under-pulling capacity (kg) |
25000 |
Maximum hoisting-pulling capacity (kg) |
16000 |
Furthest hoisting-pulling capacity (kg) |
6000 |
Telescopic stroke of boom (mm) |
3300 |
Maximum hoisting height (mm) |
6500 |
Maximum lift angle (°) |
35 |
Rated tractive force of winch (kN) |
80 |
Number of winch |
2 |
Maximum under-hoisting capacity (kg) |
7200 |
Maximum under-hoisting capacity in full-extension condition (kg) |
5000 |
Maximum efficient under-hoisting length (mm) |
3900 |
Telescopic stroke of support arm (mm) |
925×2 |
Folding angle of support arm (°) |
-7~+92° |
Kerb mass of entire vehicle (Kg) |
17400 |
Maximum vehicle speed (km/h) |
90 |
Maximum gradeability (%) |
≥20 |
Maximum turning diameter (m) |
≤23 |
Minimum ground clearance (m) |
≥280 |
Approach angle (°) |
16 |
Departure angle (°) |
19 |
- Performance characteristics of YTZ5257TQZ40EN
a. Superior performance and reliable quality:
YTZ5257TQZ40EN road-block removal truck adopts integrated type structure. According to CAE analysis, its working devices have reasonable and matching design and reliable operating performance. Chassis, manufactured by China National Heavy Duty Truck Group Co., Ltd (a famous brand in China), has strong bearing capacity and especially its adaptability is a more competitive advantage as the road-block removal truck has a outstanding feature that is load transfer.
b. High safety:
Adopting dual-circuit braking system and auxiliary engine braking system, the vehicle has strong road adaptability. All of the hydraulic systems of working devices adopt both domestic and foreign brands. Both of luffing cylinder and support arm swing cylinder are equipped with safe and reliable balancing valves, greatly improving the safety performance of the working devices.
c. Reliability and durability:
All moving parts of working devices are equipped with self-lubricating bearings. Especially, the crossarm position of the support arm, which bears larger force and acts frequently, is equipped with enhanced self-lubricating bearing besides retaining the lubricating oil channel. This greatly improves the service life, but also reduces the maintenance frequency.
d. Humanized design:
The thin-type extended support arms of this vehicle, which are equipped mainly for the public traffic vehicles, adopt high-strength steel design, greatly enhancing the strength performance and effectively solving the problem of low chassis of public traffic vehicles. When the arms are used together with reliable L-shaped tire holding tools, the operating performance will become more superior. The operating mechanism is positioned at the rear part of the vehicle and it can be operated at both sides. Moreover, its operating handle is designed with an angle of 60°, which makes the operation more convenient and comfortable. Holding and lifting device adopts modular design and it can be equipped with a support arm which is optional for rescuing trucks.
- We supply the package of service to minning works. such as drilling, stone crushing, granule delivery, etc.
- We supply the package of service to sanitation works, such as road cleaning, city garbage compactor, delivery, etc.
- We supply the technique support to these customer for better usage of our products.
- 24 hours response principle, let us to help you faster and better.
- Some products can be found below, (Click the name or the picture for quick browsing)
| Catalogue |
Products Description | |
|
Dump truck | Loadage can be 40t -100t |
|
Wheel loader | Loadage can be 3t - 8 t |
|
Bulldozer | 3 m3 capcity and other capcity |
|
Truck mounted crane | 5t - 50 t |
|
Crawler crane | 50t - 360 t |
|
Drilling rigs | Rotary Drilling Rigs; Auger Rigs; Anchor rigs |
|
Sanitation equipment | Sweeper; garbage compressing machine; sewage suction truck; Sprinkler Vehicle etc. |
|
Concrete Mixer Truck | 8 m3 - 10 m3 |
You can contact with me for more information and serive.
