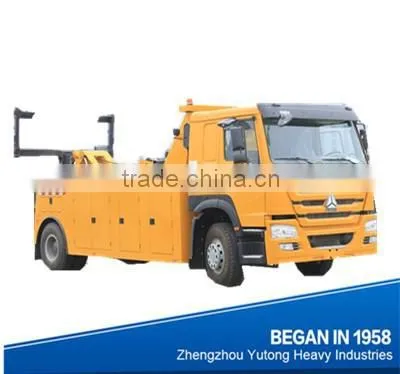

Help CenterYellow Tow Truck YTZ5197TQZ40EN
Related Products
-
Yellow Tow Truck YTZ5257TQZ40ENNegotiableMOQ: 1 Set -
Used Tow TruckNegotiableMOQ: 1 Set
-
YUTONG Efficient 8 Cubic Meters Mixer Truck For SaleUS$ 40,000 - 950,000MOQ: 1 Piece
-
Professional And Efficient Concrete Mixer Truck For Sale With Preferential PriceUS$ 40,000 - 950,000MOQ: 1 Piece
-
YUTONG 8 Cubic Meters Concrete Truck For Sale With Preferential PriceUS$ 40,000 - 950,000MOQ: 1 Piece
1. The corbel is characterized by long stroke and wide use range
In respect to the long front overhang of bus, the maximum effective lifting length of the Yutong Bus wrecker is up to 3.9m, which is able to meet the rescue demands of various vehicle models;
2. Strong lifting capacity
The maximum lifting mass is up to 6.4 tons and will be up to 5 tons under full extension state, which is capable to haul all kinds of domestic buses, passenger cars.
3. The key hydraulic components and electrical components are made of imported parts.
The key hydraulic and electrical components are made of imported high-quality products, and the multi-way reversing valve, balance valve, sealing elements (hydraulic cylinders and piping), electrical joystick, etc., are made of high-quality imported components, thereby enabling reliable vehicle quality and long service life.
4. Application of modular control system
The steering mechanism is set up on both sides of the vehicle body, steering by electronically controlled handle, characterized by lightweight, and flexible.
Parameters of complete vehicle and chassis |
Model |
YTZ5197TQZ40EN |
The maximum pulling and traction mass |
19000 |
|
Overall dimensions (L*W *H) |
8810*2500*3290 |
|
Chassis model |
China National Heavy Duty Truck Group ZZ1167N5618W |
|
Drive Mode |
4*2 |
|
Engine type and power |
WD615.95C 247kw/336PS |
|
Lifting system |
Maximum in-situ lifting mass |
8000 |
Maximum lifting mass under full extension state |
5000 |
|
Maximum lifting length |
3900mm |
|
Hoisting Systems |
Maximum hoisting mass |
12000mm |
Maximum hoisting height |
5500mm |
|
Retracting stroke of the boom |
2500mm |
|
Hydraulic winch |
Rated traction |
80kN |
Minimum liner speed |
4.5 m/min |
|
Winch number |
2pcs |
|
Outrigger |
Horizontal span (front/rear) |
——/1500mm |
Welcome to consult us any question you have !
