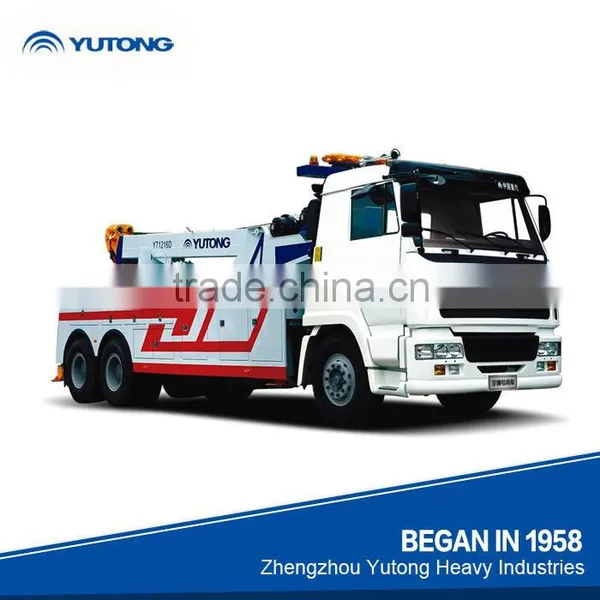

1. Application of 10*4 drive and 50-ton chassis
Apply 10*4 drive and 50-ton dedicated chassis for ultra-heavy-duty wrecker manufacured by the China National Heavy Duty Truck Group, which is the doemstic initiative, characterized by stable performance, replacing by the imported chassis. Meanwhile, the vehicle is cost-effective, and the payback period is half compared with that of the imported chassis, so as to create greater economic benefits for the user.
2. The in-situ lifting mass of the corbel is up to 35 tons
The lifting mass is 12.8 tons under full extension state, and the maximum lifting length is 3.78m, which is able to fully satisfy the lifting and traction requirements of large cargo truck.
3. The maximum hoisting mass of the suspension arm is up to 45 tons
The maximum hoisting height is up to 6 meters, equipped with two sets of 15-tons planetary gear hydraulic winch, and the single rope tension is up to 150KN, which is able to satisfy the requirements of long-distance dragging and short-distance righting for large accident trucks.
4. The working mechanism adopts the conjoined structural
The working mechanism adopts the structural form of conjoined suspension arm and corbel, fully hydraulic drive, equipped with a variety of sizes and forms of forks. Thus, it is furnished with dragging, suspending, pulling and many other features, available for a wide range of applications.
5. The key components of the hydraulic system are made of imported components
The multi-way reversing valve, balance valve, sealing elements, etc., of the hydraulic system are made of imported components, characterized by stable quality, and able to ensure safety and reliable operation of the vehicle for a long time.
Parameters of complete vehicle and chassis |
Model of Complete Vehicle |
YTZ5507TQZ40E |
The maximum pulling and traction capacity |
50000 |
|
Chassis model |
China National Heavy Duty Truck Group ZZ5507N31B7C1 |
|
Drive mode |
10*4 |
|
Engine model |
WD615.96E State III |
|
Engine power(KW/PS) |
279/380 |
|
Wheelbase |
1950+3075+1375+1350 |
|
Lifting system |
In-situ lifting mass |
35000 |
Maximum lifting capacity |
18000 |
|
Maximum lifting mass under full extension state |
12800 |
|
Hoisting Systems |
Maximum hoisting weight |
45000 |
Maximum hoisting height |
6000 |
|
Winch system |
Single-rope traction/winch number (KN) |
150/2 |
Steel rope length |
40 |
Welcome to consult us any question you have !
