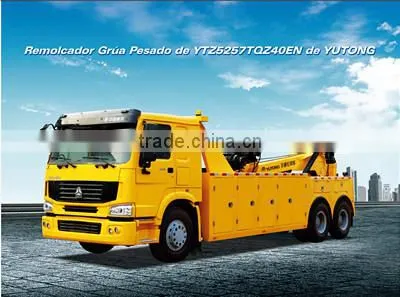

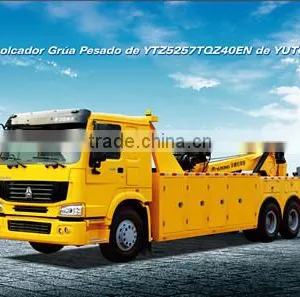

Help CenterYellow Tow Truck YTZ5257TQZ40EN
Related Products
-
Used Tow TruckNegotiableMOQ: 1 Set -
YUTONG Efficient 8 Cubic Meters Mixer Truck For SaleUS$ 40,000 - 950,000MOQ: 1 Piece
-
Professional And Efficient Concrete Mixer Truck For Sale With Preferential PriceUS$ 40,000 - 950,000MOQ: 1 Piece
-
YUTONG 8 Cubic Meters Concrete Truck For Sale With Preferential PriceUS$ 40,000 - 950,000MOQ: 1 Piece
-
YUTONG 12 Cubic Meter Concrete Truck With Preferential PriceUS$ 60,000 - 100,000MOQ: 1 Piece
1. The in-situ lifting mass of the corbel is up to 12 tons
The lifting mass is up to 5.5 tons under full extension state and the largest lifting length is up to 2.56m, which is able to fully meet the pulling and traction requirements of large/medium-sized cargo truck.
2. The maximum hoisting mass of the suspension arm is up to 16 tons
The maximum hoisting height is up to 6 meters, equipped with two sets of 15-tons planetary gear hydraulic winch, and the single rope tension is up to 80KN, which is able to satisfy the requirements of long-distance dragging and short-distance righting for large/medium-sized accident trucks.
3. The working mechanism adopts the conjoined structural form
The working mechanism adopts the structural form of conjoined suspension arm and corbel, fully hydraulic drive, equipped with a variety of sizes and forms of forks. Thus, it is furnished with dragging, suspending, pulling and many other features, available for a wide range of applications.
4. The key components of the hydraulic system are made of imported components
The multi-way reversing valve, balance valve, sealing elements, etc., of the hydraulic system are made of imported components, characterized by stable quality, and able to ensure safety and reliable operation of the vehicle.
Parameters of complete Vehicle |
Model of Complete Vehicle |
YTZ5257TQZ40EN |
The maximum pulling and traction capacity |
32000 |
|
Chassis model |
China National Heavy Duty Truck Group ZZ1257M5847C |
|
Drive mode |
6*4 |
|
Engine model |
WD615.93E State III |
|
Engine Power |
213kW |
|
Wheelbase |
5825+1350 |
|
Lifting system |
In-situ lifting mass |
12000 |
Maximum lifting capacity |
7500 |
|
Maximum lifting mass under full extension state |
5500 |
|
Hoisting Systems |
Maximum hoisting weight |
16000 |
Maximum hoisting height |
6000 |
|
Winch system |
Rated traction/number of winches |
80kN/2 |
Specification of Steel Wire Rope |
φ 18*30 I.W.R |
