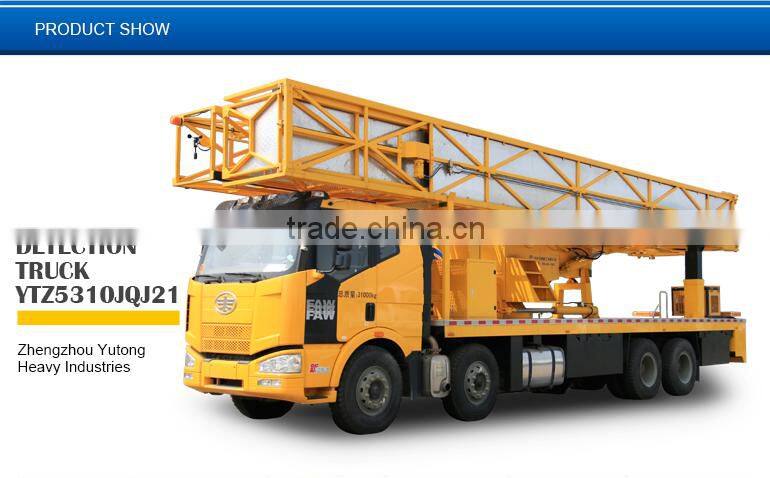

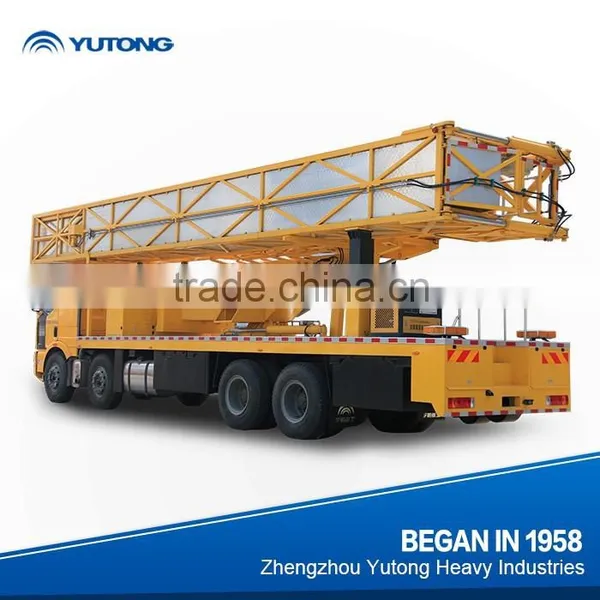

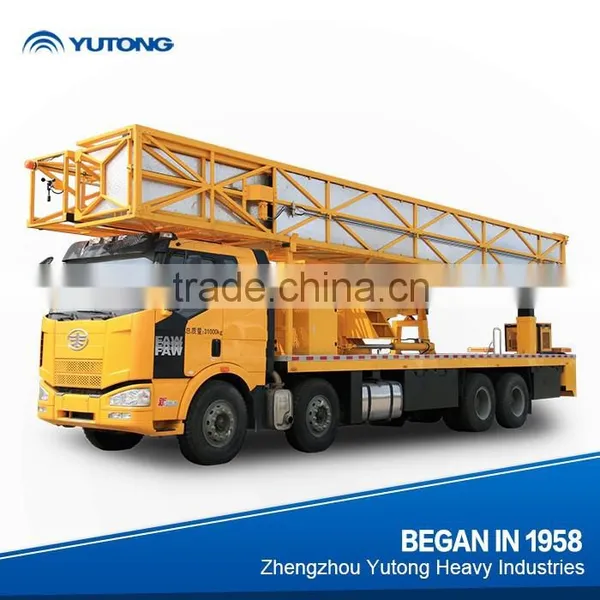

Help CenterBridge Detection Truck
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
YUTONG
Model Number:
YTZ5310JQJ21
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai&Tianjin&Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Good Quality Concrete Mixer TruckUS$ 60,000 - 70,000MOQ: 1 Set -
China Good Quality Concrete Mixer Truck With Copetitive PriceUS$ 60,000 - 70,000MOQ: 1 Set
-
8 m3 Concrete Mixer Truck With Copetitive PriceUS$ 60,000 - 70,000MOQ: 1 Set
-
Concrete Mixer Truck for SaleUS$ 60,000 - 70,000MOQ: 1 Set
-
Light-duty P Series Tow TruckNegotiableMOQ: 1 Set
Place of Origin
Henan, China
Brand Name
YUTONG
Model Number
YTZ5310JQJ21
The brand concepts
of Full Care and Trust,
based on"customer- oriented
and employee-oriented"
management idea.
of Full Care and Trust,
based on"customer- oriented
and employee-oriented"
management idea.
Being one of the 50
largest engineering
machinery manufact
urersand in China.
largest engineering
machinery manufact
urersand in China.
More than 50 years
of military industry
experience and
technology.
of military industry
experience and
technology.
Yutong have successfully developed
a series of high value- added
products, such as rotary drilling
rig, longspiral drill rig,
crawler cranes, dynamic
compactor, and mining dump
truck, etc.
a series of high value- added
products, such as rotary drilling
rig, longspiral drill rig,
crawler cranes, dynamic
compactor, and mining dump
truck, etc.
The Environmental Protection
covering foundation construction,
resources exploitation,
environmental protection
and other fields.
covering foundation construction,
resources exploitation,
environmental protection
and other fields.
Model of Complete Vehicle |
YTZ5310JQJ21 |
Chassis model |
CA1313P7K1L11T4E |
Chassis Manufacturer |
China FAW Group |
Engine model |
BF6M1013-28E3 Euro Ⅲ |
Engine Power (kw/Ps) |
206/280 |
Wheel Tread |
1900+4500+1350 |
Rear axle |
13T-level dual rear axle |
Tyre |
11.00R20 Steel Wire Tyre |
Horizontal working range under the bridge (mm) |
11500~21000 |
The maximum size of the work platform under the bridge (mm) |
8300 |
The rated load of the working platform (kg) |
600 |
The swing angle of the work platform under the bridge (°) |
180 |
Distance spanning over the sidewalk (mm) |
2100~2500 |
Height spanning over the fence (mm) |
2100 |
Structure Type of The Working Platform |
Truss Type |
Active force of the working mechanism |
Take- off power from the chassis via the Power Take-off |
Standby power of the working mechanism |
Gasoline engine unit |
Drive type of self-propelled device |
Hydraulic drive |
Self-propelled speed (m/min) |
≤16 |
Steering mode |
Manual, wired remote control, wireless remote control |
Communication mode |
Wired and wireless intercom system |
Monitoring mode |
Wired surveillance systems |
1. User-friendly design, and the swing mechanism is provided with the limit function
2. The vertical luffing mechanism applies the roller bracket
Able to quickly and securely place the arm perpendicular to the bridge side, which is easy to retract the arm
body and structural limit, safety and reliable.
2. The vertical luffing mechanism applies the roller bracket
Able to quickly and securely place the arm perpendicular to the bridge side, which is easy to retract the arm
body and structural limit, safety and reliable.
3. Equipped with a fixed counterweight:
During operation, it does not overstep the vehicle body, not occupy other
lane, and not hinder the normal driving of other vehicles.
4. Broad applicability:
The arm body can span over 2.5m wide sidewalks and can directly span
over 2.1m high fence, which is featured by broader applicability, can be
used to detect the vast majority of bridges, so as to bring greater
economic benefits.
During operation, it does not overstep the vehicle body, not occupy other
lane, and not hinder the normal driving of other vehicles.
4. Broad applicability:
The arm body can span over 2.5m wide sidewalks and can directly span
over 2.1m high fence, which is featured by broader applicability, can be
used to detect the vast majority of bridges, so as to bring greater
economic benefits.
DETAIL TWO:
Equipped with two outriggers to achieve the propelling by hydraulic drive, and furnished with self-propelled function, thereby greatly improving the work efficiency.
Equipped with two outriggers to achieve the propelling by hydraulic drive, and furnished with self-propelled function, thereby greatly improving the work efficiency.
DETAIL THREE:
1) The swing mechanism cylinder is provided with 90°automatic limiting function; 2) The swing mechanism is provided with 180°automatic limiting function and an auxiliary support cylinder is mounted beneath the 2nd swing mechanism to increase the rigidity of the arm body, and provide secondary safety protection.
1) The swing mechanism cylinder is provided with 90°automatic limiting function; 2) The swing mechanism is provided with 180°automatic limiting function and an auxiliary support cylinder is mounted beneath the 2nd swing mechanism to increase the rigidity of the arm body, and provide secondary safety protection.
Zhengzhou Yutong Heavy Industries Co.,Ltd.(hereinafter referred to as"
Yutong Heavy Industries") is the core enterprise of Yutong Group, a profe-
ssional manufacturer integrating research and development, manufacturing
and sales service. Being one of the 50 largest engineering machinery ma-
nufacturers in China, with registered capital of 600 million and more than
3,000 employees.
Yutong Heavy Industries") is the core enterprise of Yutong Group, a profe-
ssional manufacturer integrating research and development, manufacturing
and sales service. Being one of the 50 largest engineering machinery ma-
nufacturers in China, with registered capital of 600 million and more than
3,000 employees.
Up to now, we have successfully developed a series of high value-added products, such as rotary drilling rig, long spiral drill rig, crawler cranes, dynamic compactor, and mining dump truck, etc. Currently, the Company covering foundation construction, resources exploitation, environmental protection and other fields.In overseas, the sales of high-tech and new, cutting-edge products represented by the multi-functional rotary drilling rig, new-generation oader and scraper is increasing rapidly, which has become a new highlight.
It possesses ISO9001:2000 Quality Management System Certification and ISO14001-2004 Environmental Management System Certification, etc.
ATTEND BUSINESS FORUM
LEADERS MET WITH ACCEPTANCE
MINING DUMP TRUCK MATCH
ENVIRONMENTAL AGREEMENT
AIGNED IN AUSTRIA
AIGNED IN AUSTRIA
Inspect vehicles before sale
Laser welding
Examine the metalic
elements
elements
SGS certification
Waterproof test
.
